Connecting to COM Port for Local Management
4-16 NAC Controller PEP Installation

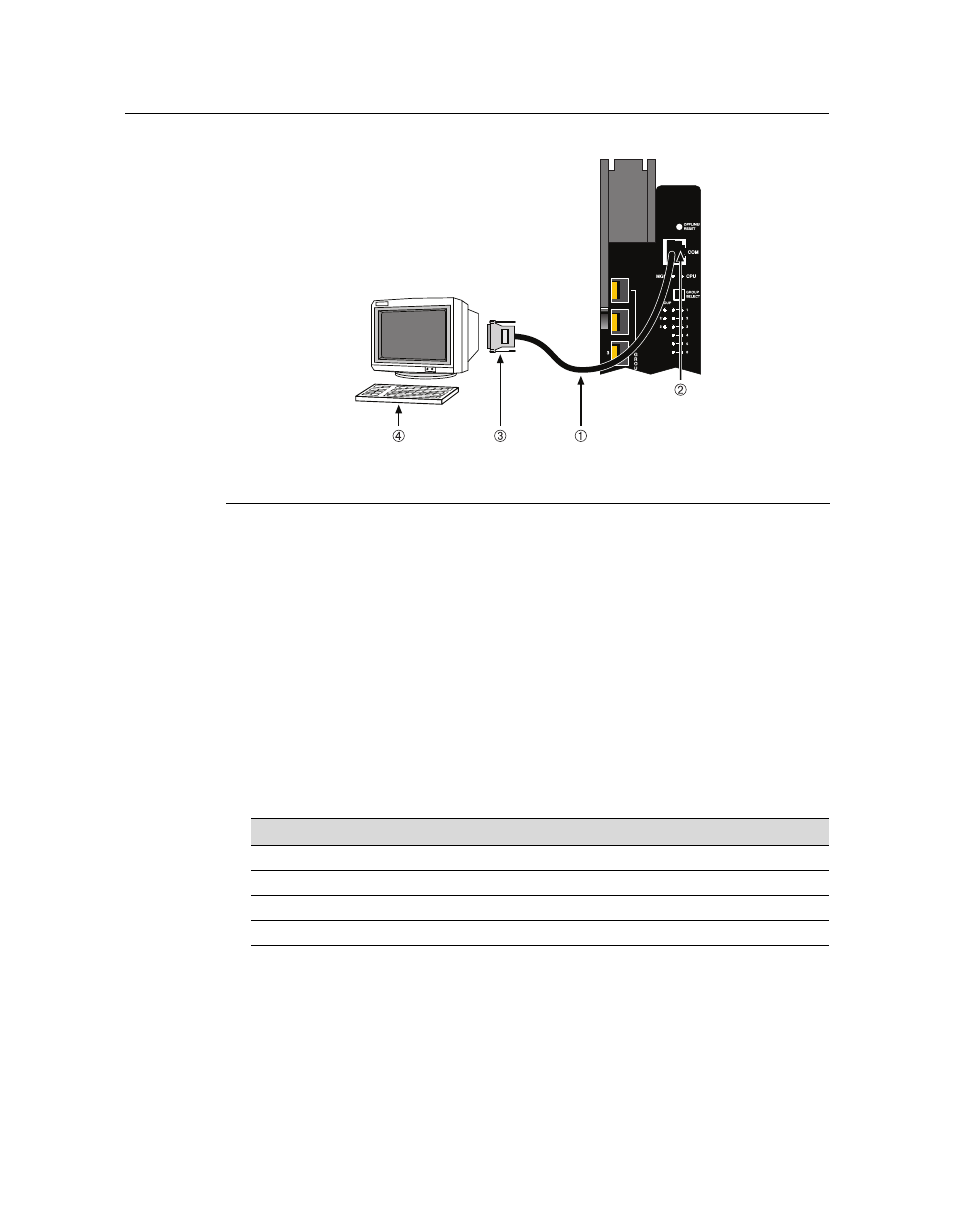

Figure 4-13 Connecting a VT Series Terminal
Connecting to a Modem
To connect a modem to an Enterasys Networks chassis COM port ( Figure 4‐14 ), use a UTP
straight‐through cable with RJ45 connectors and an RJ45‐to‐DB25 male adapter, and proceed as
follows:
1. Connect the RJ45 connector at one end of the UTP straight‐through cable to the COM port of
the module.
2. Plug the RJ45 connector at the other end of the UTP straight‐through cable into the
RJ45‐to‐DB25 modem adapter.
3. Connect the RJ45‐to‐DB25 adapter to the communications port on the modem.
4. Turn on the modem.
5. With a PC connected to a remote modem, you can configure the switch remotely. To
accomplish this, you must configure your PC VT emulation package with the following
parameters:
6. When these parameters are set, the Local Management password screen will display. Refer to
the Enterasys Matrix DFE‐Diamond/Platinum Series Configuration Guide for further information.
1 UTP straight-through cable with RJ45 connectors 3 RJ45-to-DB25 VT adapter
2 RJ45 COM port 4 VT series terminal
Parameter Setting
Mode 7 Bit Control
Transmit Transmit=9600
Bits Parity 8 Bits, No Parity
Stop Bit 1 Stop Bit
