Connecting to the Network

4-12 NAC Controller PEP Installation

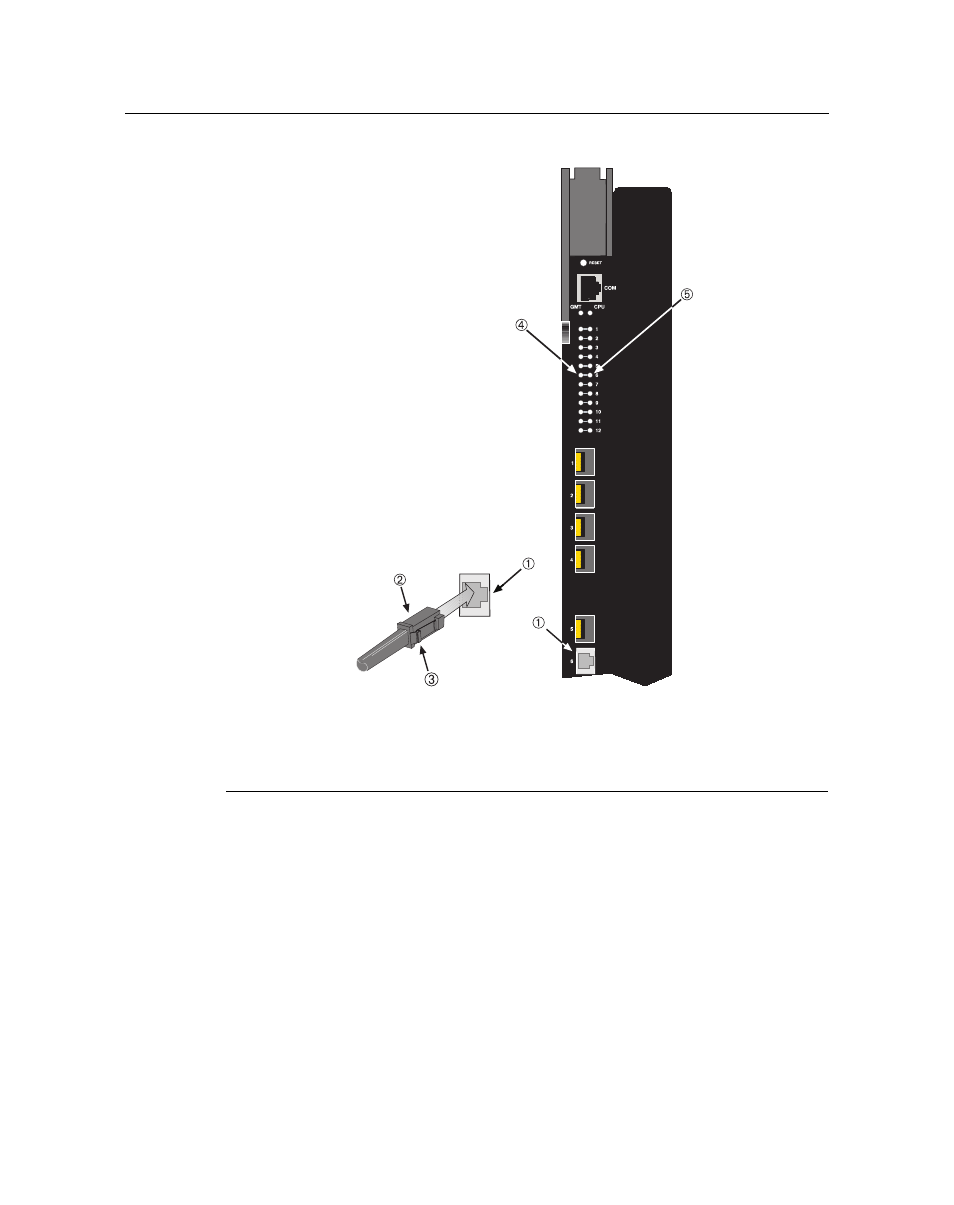

Figure 4-10 Cable Connection to MT-RJ Fiber-Optic Connectors

1 Installed Mini-GBIC MT-RJ connecto

4 Receive LED (RX)

2 MT-RJ cable connector

5 Transmit LED (TX)

3 Release tab
