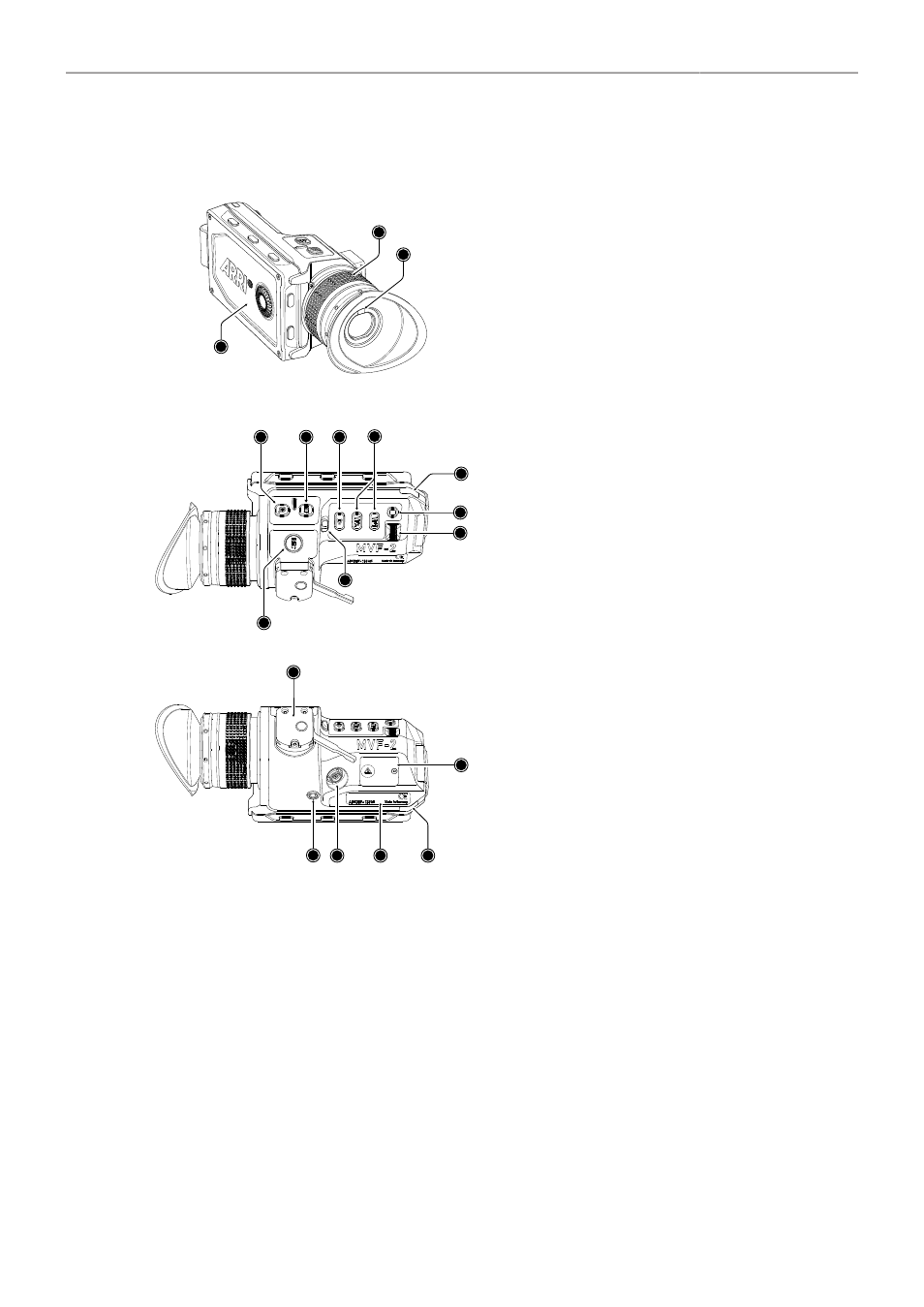

Multi Viewfinder MVF-2 35
12 Multi Viewfinder MVF-2
1
3
1
2
1
1 Flip-out Monitor
2 Diopter Adjustment
3 Proximity Sensor
12
4 5 6 7
8
9
10
11
4 ZOOM Button
5 EXP Button
6 PLAY Button
7 VF 1&2 User Buttons
8 Top Tally Light
9 SET Button
10 User Wheel
11 LOCK Switch
12 REC Button
13
14
15 16 17 18
13 Dove Tail
14 Service Cover
15 Bottom Tally Light
16 Product Label
17 Viewfinder Connector
18 Headphones Out
OLED Display
The MVF-2 is equipped with a high contrast, temperature controlled 1920 x 1080 OLED display.
Flip-out Monitor
The 4" flip-out monitor (1) with up-and-down tilt function can display the camera live image or the main
user interface, providing full access to camera functions and menus. See the next chapter for more
information.
Diopter Adjustment
With the camera switched on and looking into the viewfinder, twist the ring (2) left or right to adapt the
viewfinder image to your visual acuity. With the help of the scale labelled from 1 to 9 you can easily
remember your adjustment when different people are using the viewfinder. The diopter adjustment can
compensate from -5 to +5 diopters.
