11

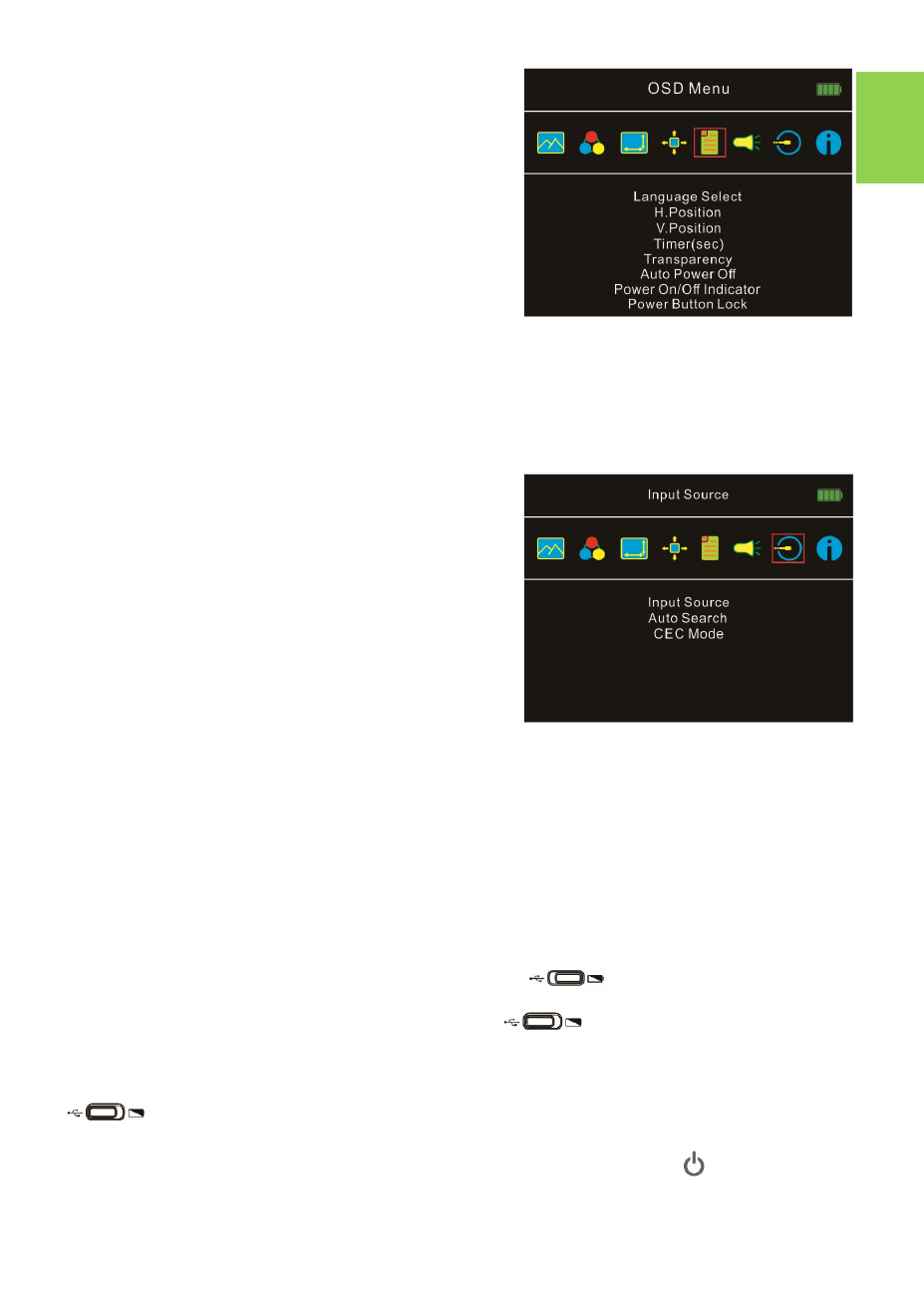

6 . OSD menu:
1) Language Select: Change to the other language.
2) H. Position: Move the OSD menu to left/right.
3) V. Position: Move up/down the OSD menu.
4) OSD Timer(sec): Adjust idle time before OSD
menu disappears.
5) OSD Transparency: Make the OSD menu
transparent to show the background.
6) Auto Power Off: Select "On" to launch this
function, when no image displayed on the
screen, the monitor will enter Stand - by mode,
and power off itself after 15 minutes.
Select "Off" to disable this function. The monitor will stay in Stand - by mode and will not
power off.
7) Power On/Off Indicator: Select "Off" to turn off the Power On/Off Indicator.
8) Power Button Lock: Select "On" to lock the Power Button.
7. Audio Settings: Adjust audio volume or select silent mode.
8. Input Source:
1) Select Analog VGA source, HDMI1 digital video
signal (from the left HDMI
port) or HDMI 2 digital video signal (from the
HDMI port on Rear Dock).
2) Auto Search: When "On" is selected, the moni-
tor will detect three video input sources in
sequence, and the monitor will display the first
one read. When "Off" is selected, only the video
source selected in Input Source will be dis-
played. If no such selected video signal inputs,
the monitor will show "no signal" warning
message, and won ’ t check other video sources.
3) CEC Mode: When "On" is selected, users can turn on or off the monitor by connecting
to the device with HDMI CEC function such as DVD player, camera, or PlayStation
game console.
9. Information: Show the frequency of the input image, On - Lap model, firmware ver-
sion ...etc.
1) Reset: Select "Yes" to reset to defaults.
Section 3 Battery Usage & Charging Guide (Only for On - Lap 1102H)
1. Power Source Switch Description
(1) When switching the button to the battery symbol , the monitor will be pow-
ered by the built - in battery; however, the battery power will gradually decrease even when
shut off. If switching the button to the USB symbol , the monitor will be powered
by external DC power. The monitor will then need to connect to a USB cable to an external
power supply before use.
(2)When the 1102H is carried out or not in use, please switch the button to the USB symbol
in order to reduce battery drain.
2. Charging the Battery
Please connect On - Lap 1102H to the 5V - 2A adapter, and press "Power ” button to turn
off the monitor. When the 1102H is connected to an external power source, and it is shut
off or under sleep mode, the built - in battery will be charged no matter which position the
Power Source Switch is set.
