75
6. Use the arrow buttons on the projector or the remote control to select the corner of the image you
want to adjust. Then press
Enter .
7. Press the arrow buttons to adjust the image shape as necessary.
8. When you are finished, press Esc .
Parent topic: Image Shape
Resizing the Image with the Zoom Ring
1. Turn on the projector and display an image.
Note: You can also display the pattern by pressing the User button on the remote control (if the test
pattern is assigned to this button).

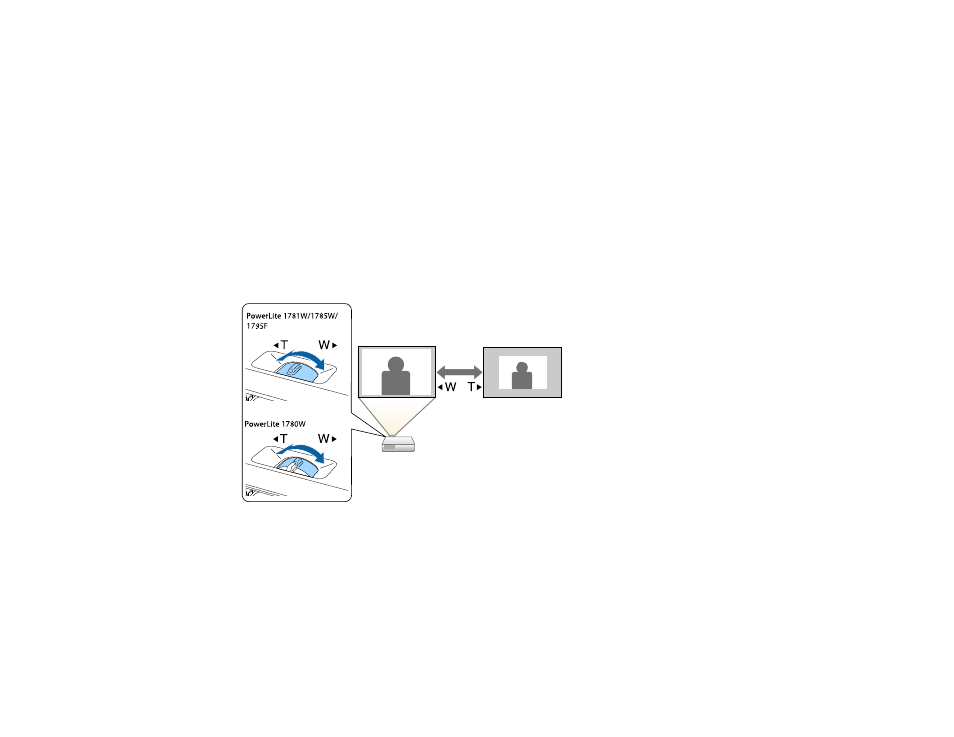

2. To enlarge or reduce the image size, rotate the projector's zoom ring.
Parent topic: Using Basic Projector Features
Focusing the Image Using the Focus Ring
1. Turn on the projector and display an image.
