Installing the Radios RLX2-IFHxE ♦ Industrial Wireless
User Manual Industrial Frequency Hopping Ethernet Radios
Page 44 of 81 ProSoft Technology, Inc.
May 28, 2014
2.2.4 Radio RS-485 Cable Specification
RS-485

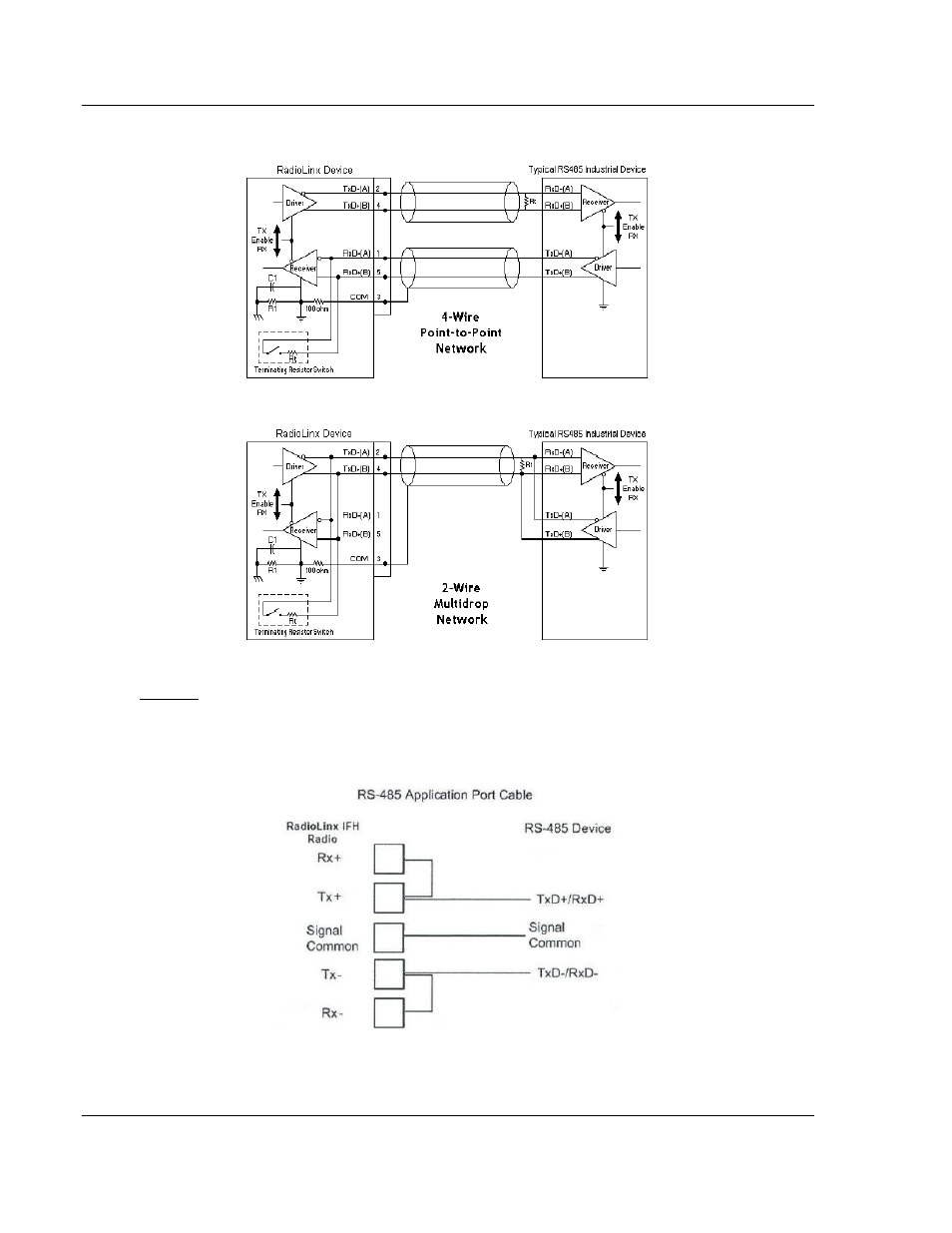

The RS-485 interface requires a single two or three wire cable. The Common
connection is optional and dependent on the RS-485 network. The cable required
for this interface is shown below:
