Initially, a new network starts with a Master radio and a Remote radio connected
by the RF link. To add a Repeater, the link between the Master and Remote
radios needs to be deleted. After the Repeater is in place and you connect the
RF links, you can adjust the the Repeater's settings.

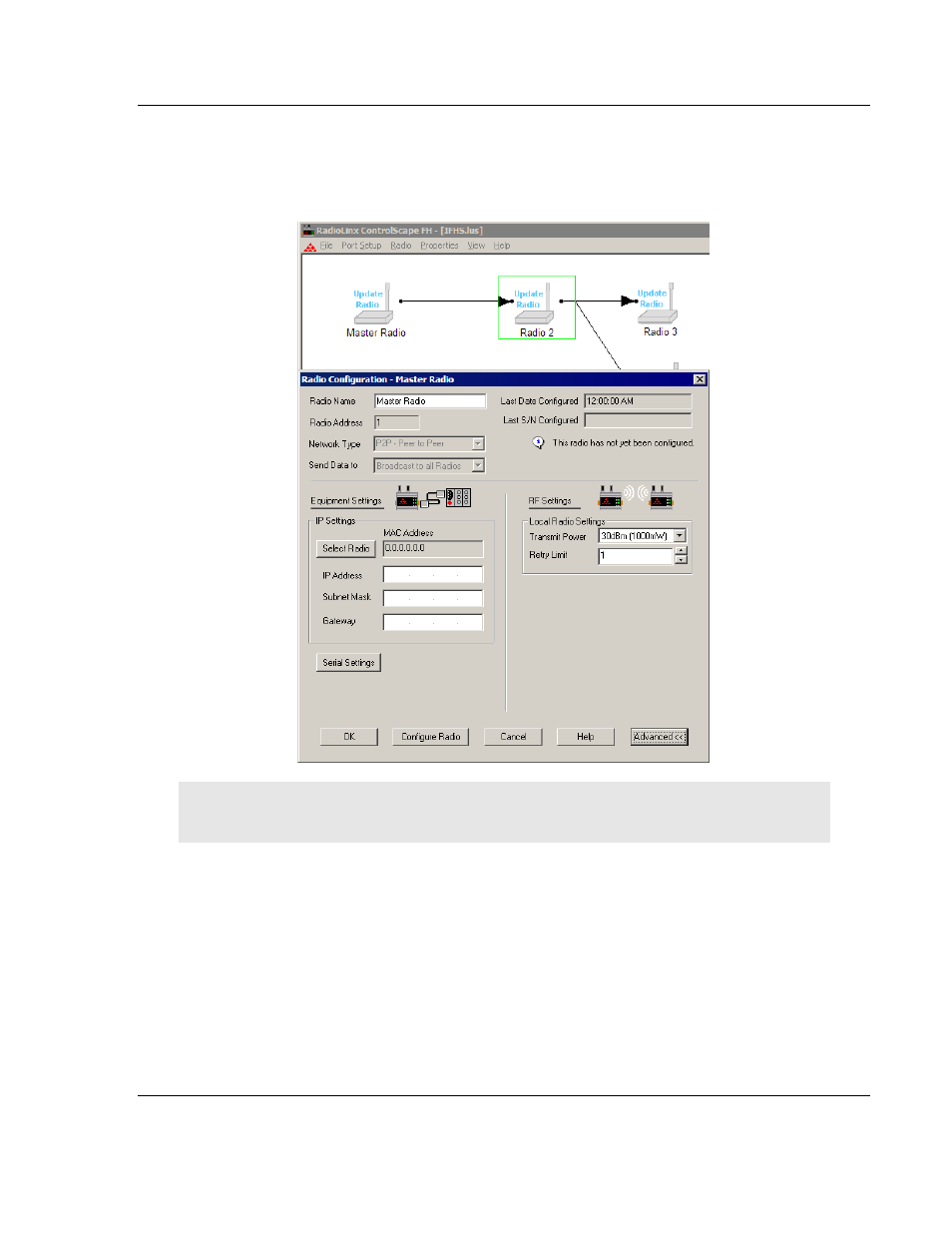

Important: The parameters on this dialog box depend on the type of radio you select. Click Help
or refer to the user manual of your radio for an explanation of each parameter.
1.6.7 Graphically Defining the RF Link
You must define radio communication links between radios. ControlScape FH
uses lines between radios to graphically define the RF communication links in a
network.
From the network's Configuration Screen:
1 Click the Master radio's link point (the black dot to the right of the Master
radio icon).
