MegaRAID 1078-based SAS RAID Controller Family 3-9
Copyright © 2007 by LSI Corporation. All rights reserved.
3.1.4 MegaRAID SAS 8888ELP RAID Controller
The MegaRAID SAS 8888ELP PCI Express Low-Profile Disk Array RAID
Controller has one I/O processor. This processor controls eight ports
through two (x4 SAS Port) SFF-8088 Mini SAS 4x external connectors
and two (x4 SAS Port) SFF-8087 Mini SAS 4i internal connectors. You
can configure the connectors through a SAS mux.
This subsection provides the board layout, and connector and jumper
information for the SAS 8888ELP RAID controller, which has eight
internal and eight external SAS or SATA port connectors.
Figure 3.4
shows the jumpers and connectors on the controller, and Table 3.4
describes them.

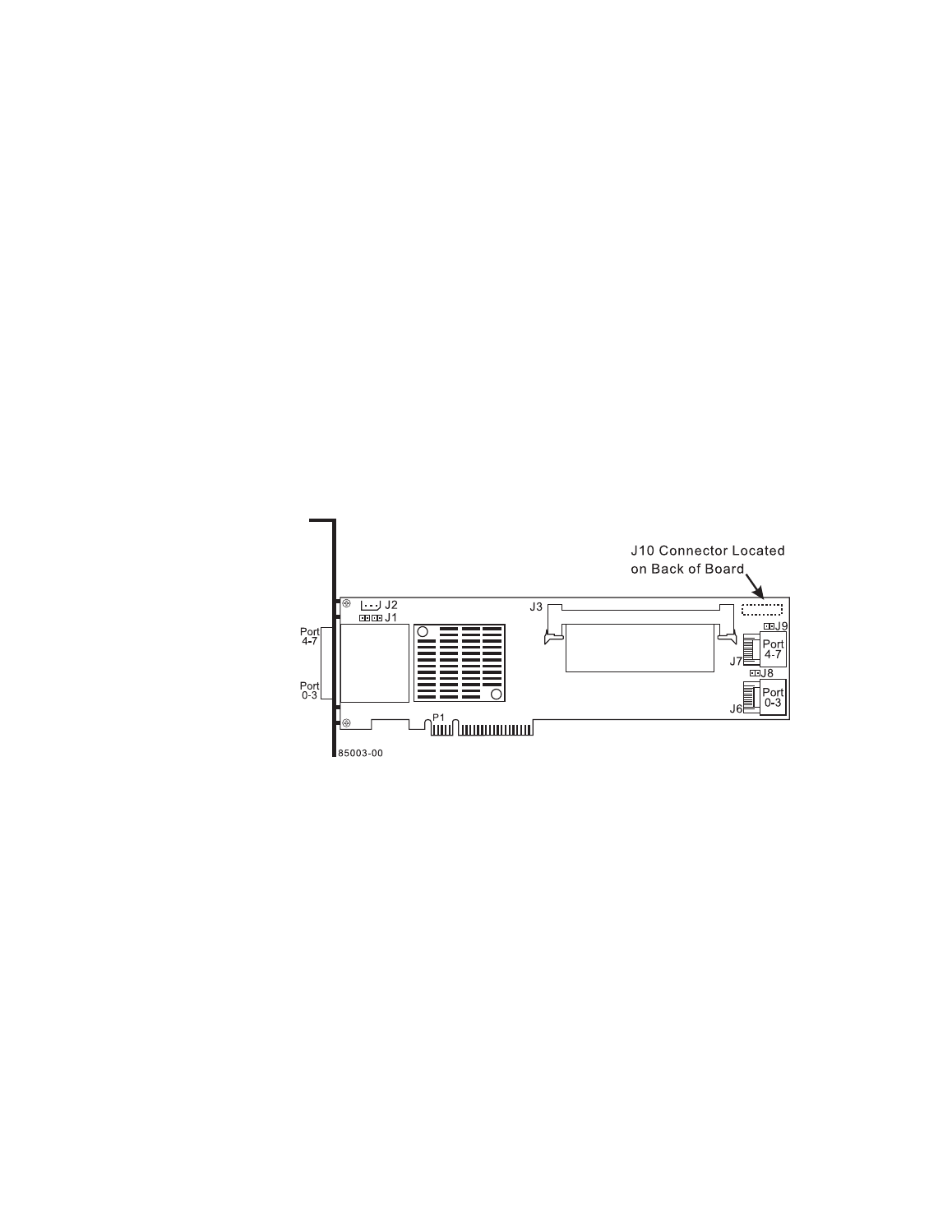

Figure 3.4 Card Layout for the MegaRAID SAS 8888ELP RAID
Controller
