SAS Device Cables 2-7
Copyright © 2007 by LSI Corporation. All rights reserved.

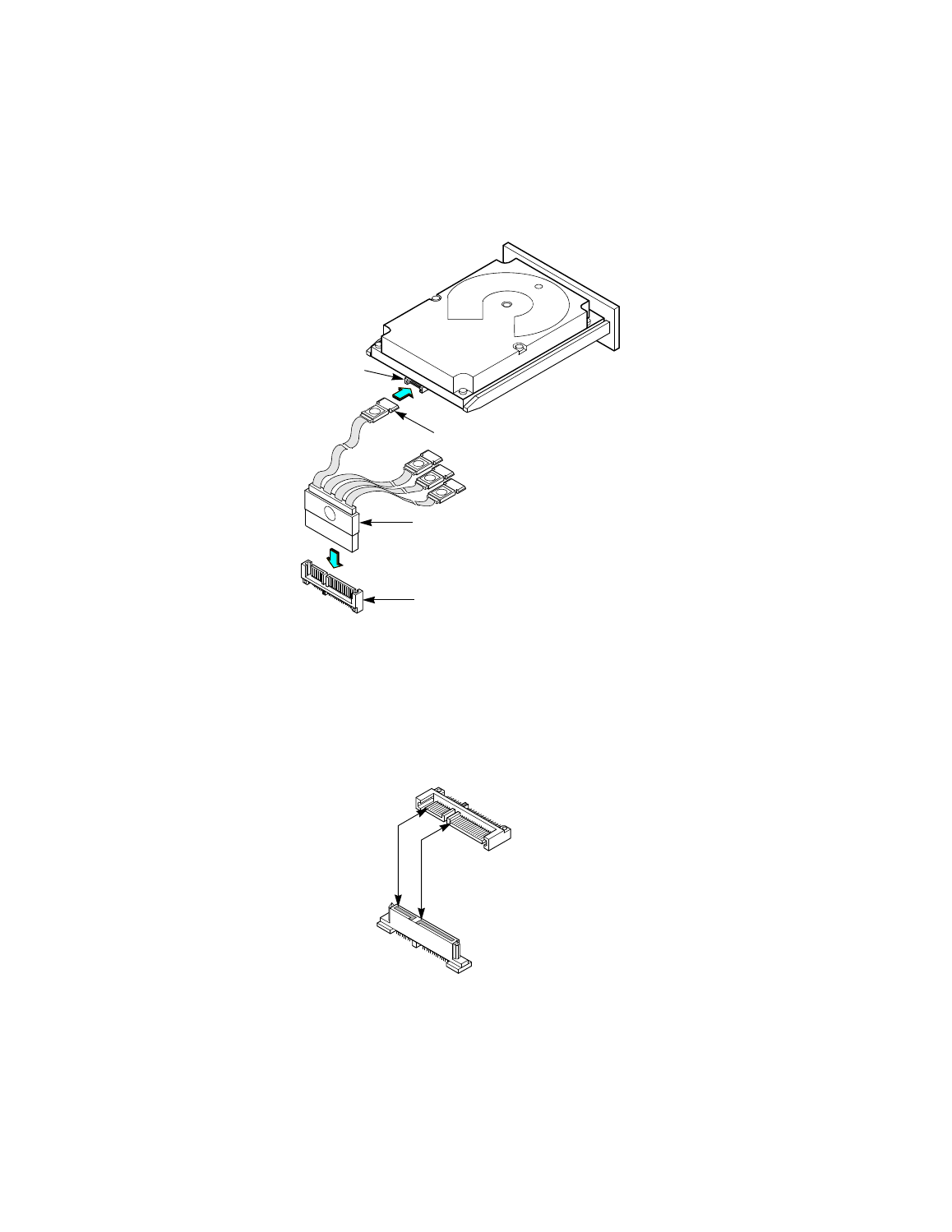

Figure 2.2 Internal SAS Cable for Connection to SAS Physical
Disks, SATA II Physical Disks, or Both
Figure 2.3 displays the SATA II device plug connector that connects a
SAS RAID controller with internal connectors to the host receptable
connector on a backplane. A SATA II connector consists of a signal
connector and a power connector.
Figure 2.3 SATA II Connectors
Hard Drive
Connector
Serial Signal
Cables
RAID Controller to HDD
4-Lane Internal
Connector
SFF 8484
Breakout Cable
Device Plug
Connector
Host Receptacle
Connector
Serial ATA
Signal Connector
(pin 1)
Serial ATA
Power Connector
(pin 1)
