3-11
Mounting the Antenna

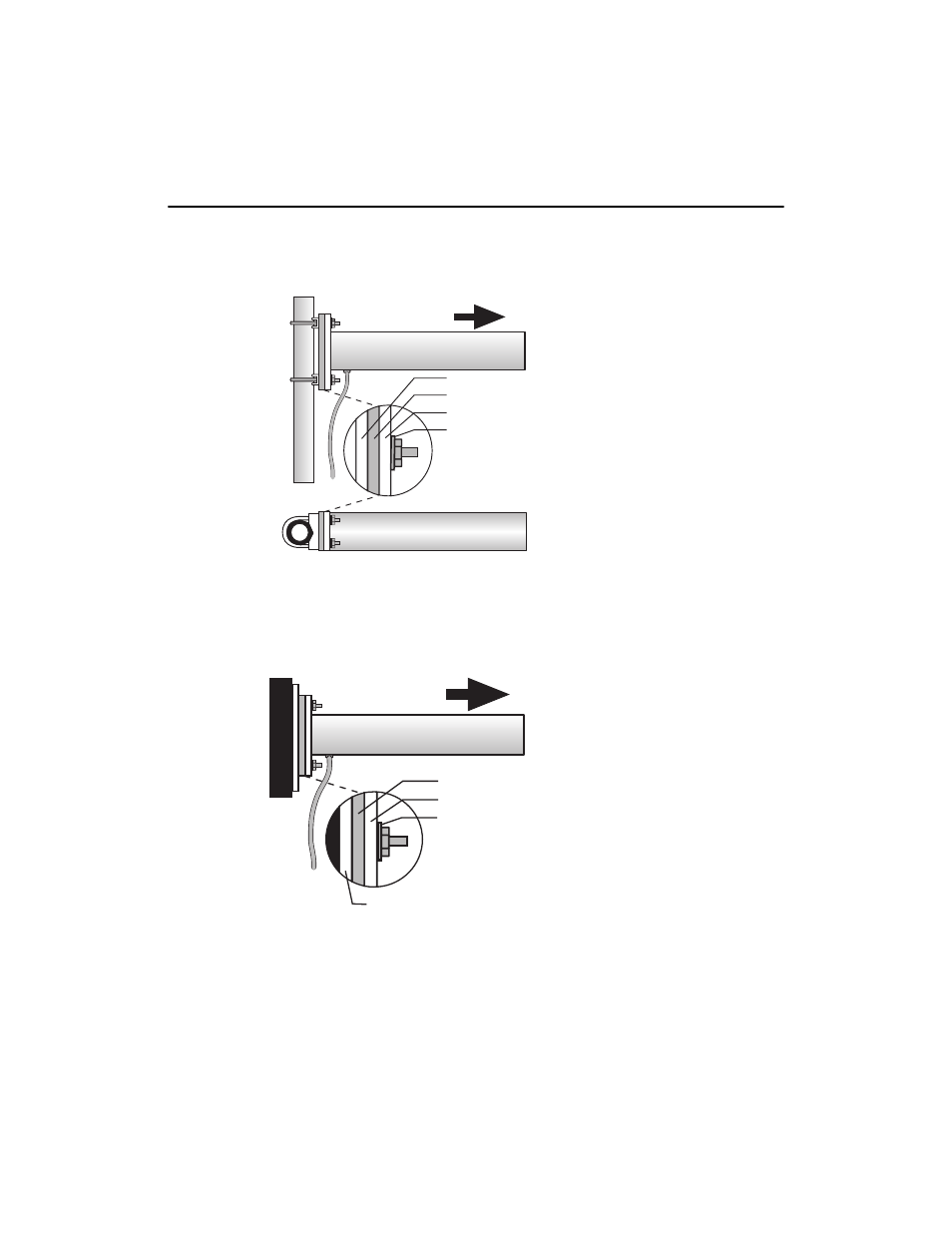

Figure 3-4: Mounting the 14 dBi Antenna to a Mast
Figure 3-5: Mounting the 14 dBi Antenna to a Wall
Side View
Top View
Clamp
Backing Plate
Antenna Mounting Base
Flatwasher
Always place flatwashers between
nuts and the Antenna Mounting Base.
Direction of Maximum Signal
Backing Plate
Antenna Mounting Base
Flatwasher
Always place flatwashers between
nuts and Antenna Mounting Base.
Direction of Maximum Signal
Intermediate Plate (Not Included)
Required when mounting antenna on a rough surface.
