3-3
Verify Component Connector Polarity

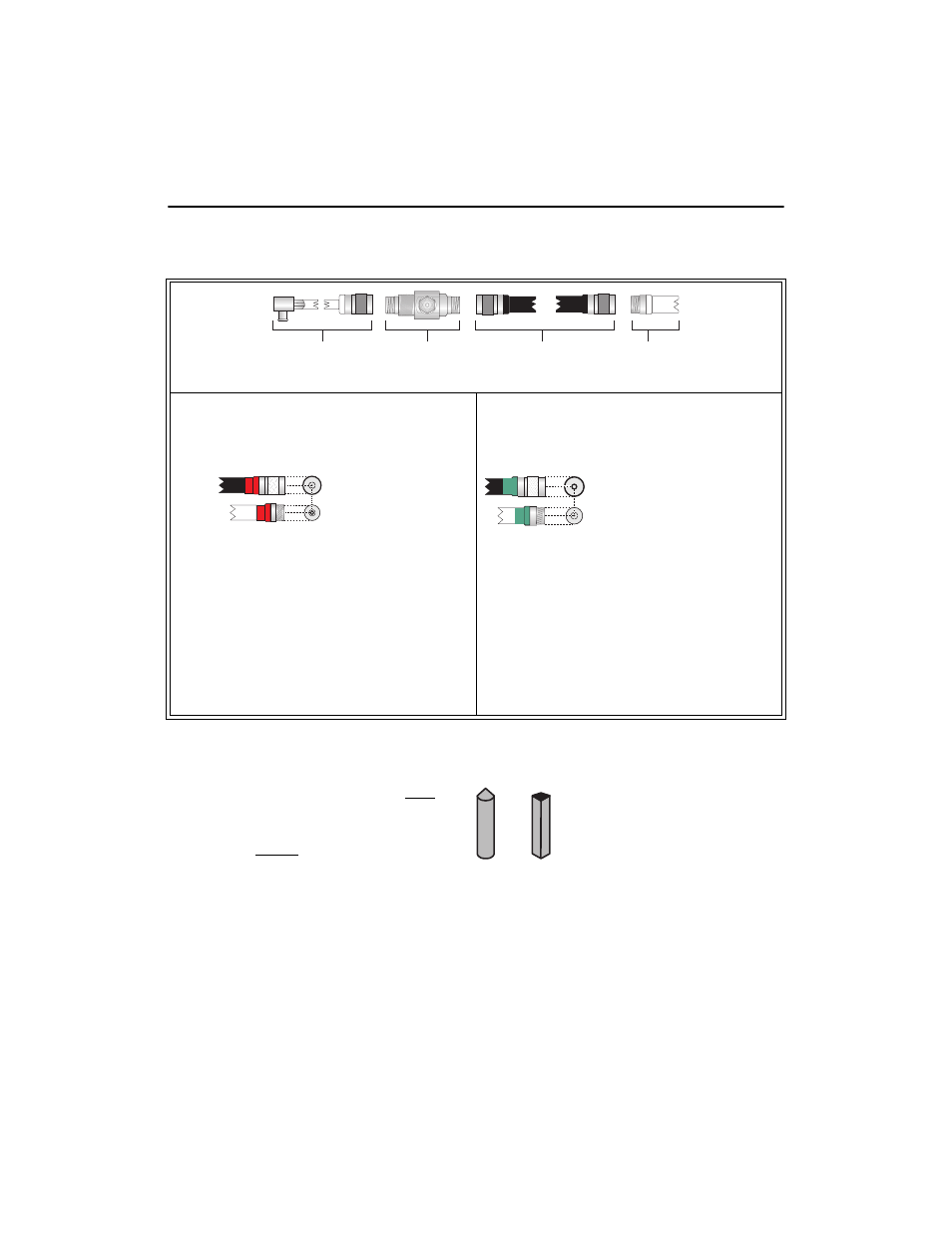

Figure 3-1: Selecting the Correct N-Type Connector for the
Access Point 2000
The term Male or Female does not refer to the connector thread, but to its center pin.
If you purchase individual components, make sure you specify the correct N-Type
connectors to match the configuration that applies to your country.
ETSI Countries: France, Spain, and
Japan.
Asia Pacific FCC and ETSI. FCC Countries.
A 1 - PC Card connector 1 - PC Card connector
2 - Standard-N Male 2 - Reverse Polarity-N Female
B Standard-N Female on both ends Reverse Polarity-N Male on both ends
C Standard-N Male on both ends Reverse Polarity-N Female on both ends
D Standard-N Female Reverse Polarity-N Male
• Male connectors have a solid
center pin
• Female connectors have a
hollow center pin
1 2
Pigtail
Connection
(A)
Lightning
Protector
(B)
Low-Loss
Cable
(C)
Antenna
(D)
Standard-N Male
Standard-N Female
Reverse Polarity-N Female
Reverse Polarity-N Male
Male Female
