Verify Component Connector Polarity
3-4

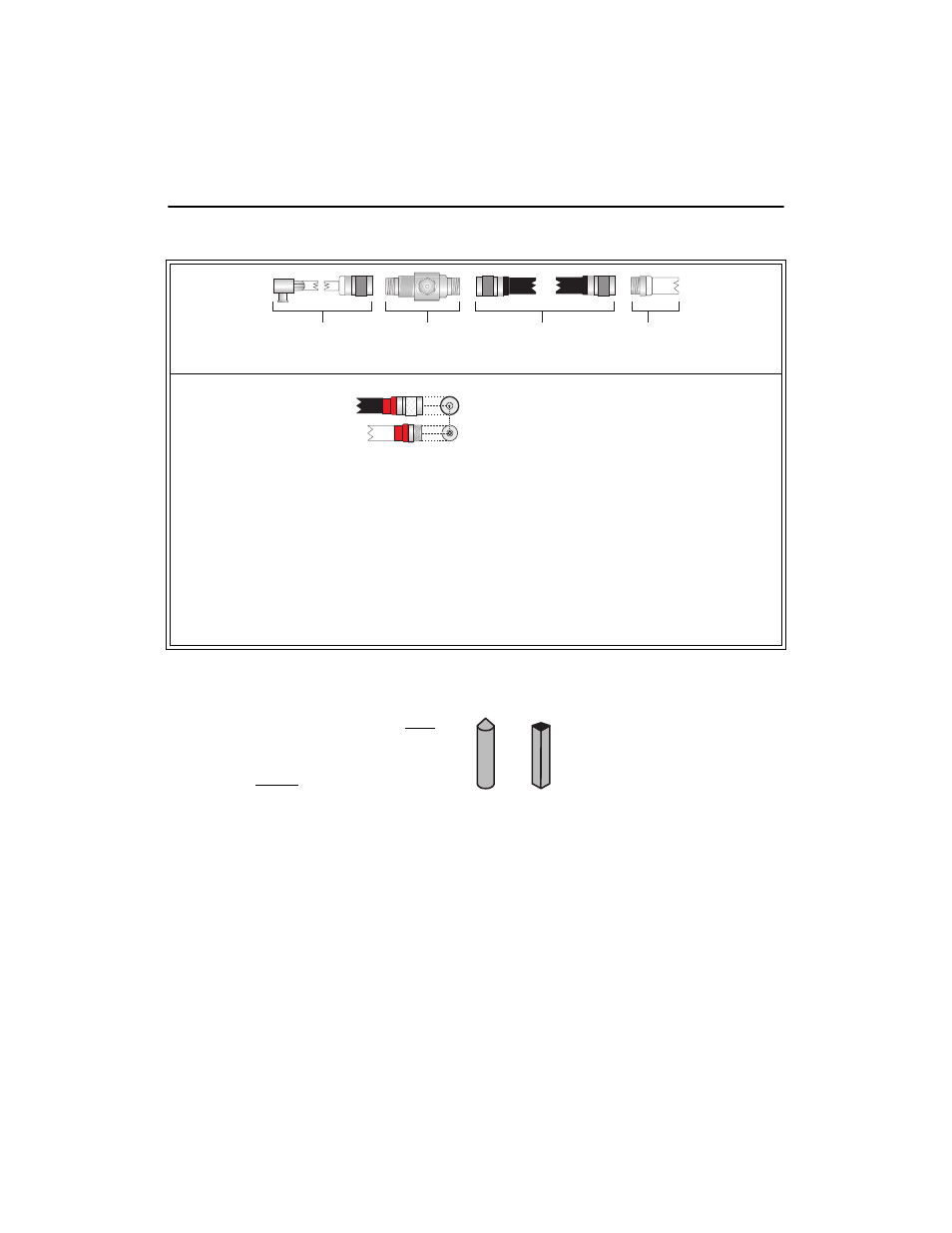

Figure 3-2: Selecting the Correct N-Type Connector for the RoamAbout R2
The term Male or Female does not refer to the connector thread, but to its center pin.
If you purchase individual components, make sure you specify the correct N-Type
connectors to match the configuration that applies to your country.
FCC and ETSI Countries
A 1 - PC Card connector
2 - Standard-N Male
B Standard-N Female on both ends
C Standard-N Male on both ends
D Standard-N Female
• Male connectors have a solid
center pin
• Female connectors have a
hollow center pin
1 2
Pigtail
Connection
(A)
Lightning
Protector
(B)
Low-Loss
Cable
(C)
Antenna
(D)
Standard-N Male
Standard-N Female
Male Female
