Serial Interface Specifications
Interface type:
RS-232C(D) compatible
Transfer method:
Asynchronous
Transfer speed:
Scanner model dependent
Data format:
Scanner model dependent
Handshaking:
ACK/NAK codes software
handshaking
Signal voltage:
Logic ‘‘1’’, MARK = -3V to -27V
Logic ‘‘0’’, SPACE = 3V to 27V
Connector type:
DB-25 (D-sub 25-pin).
DB-295A-J4 (JAE)

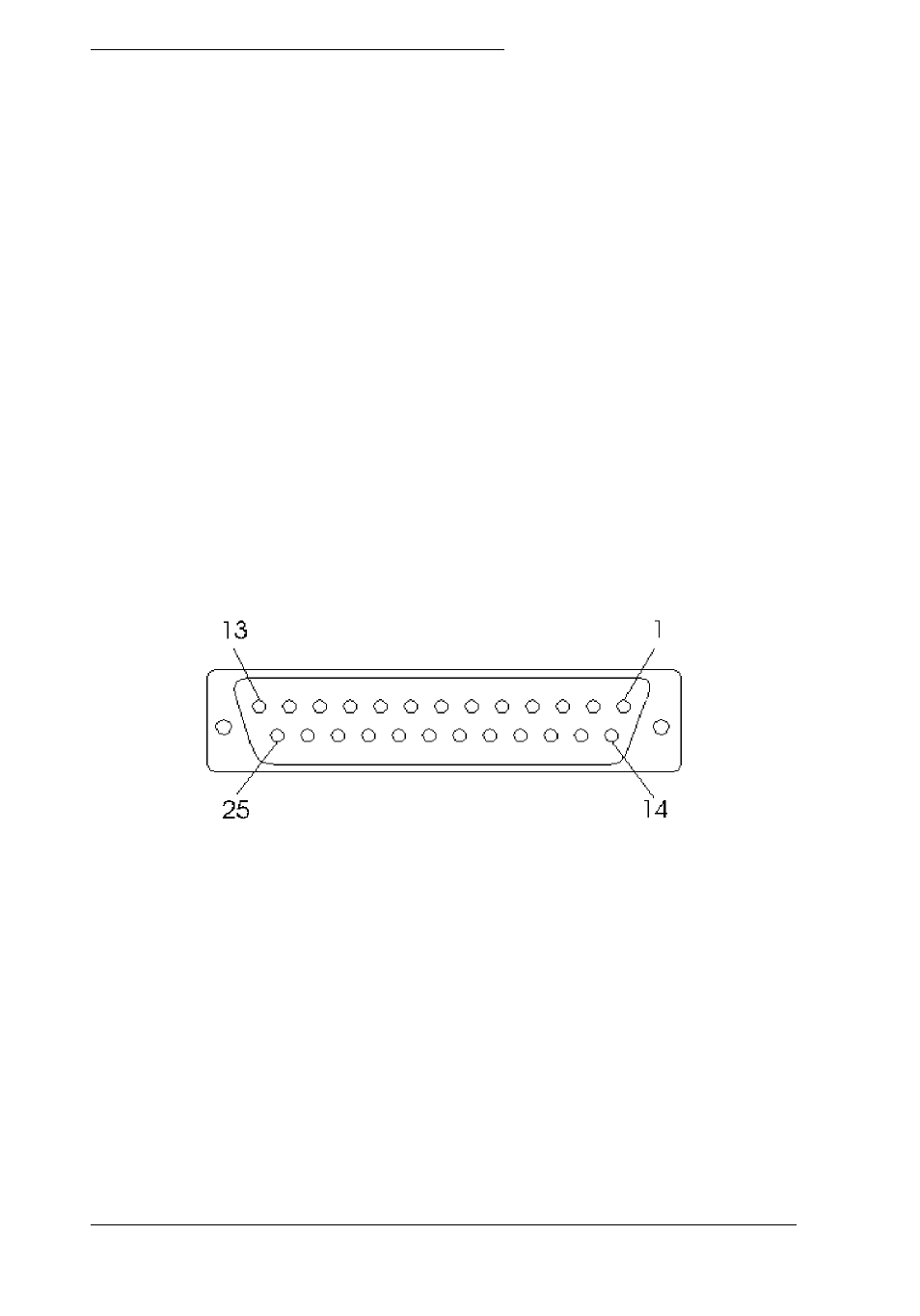

Connector pin arrangement:
seri_f
A-2
Interface Specifications
