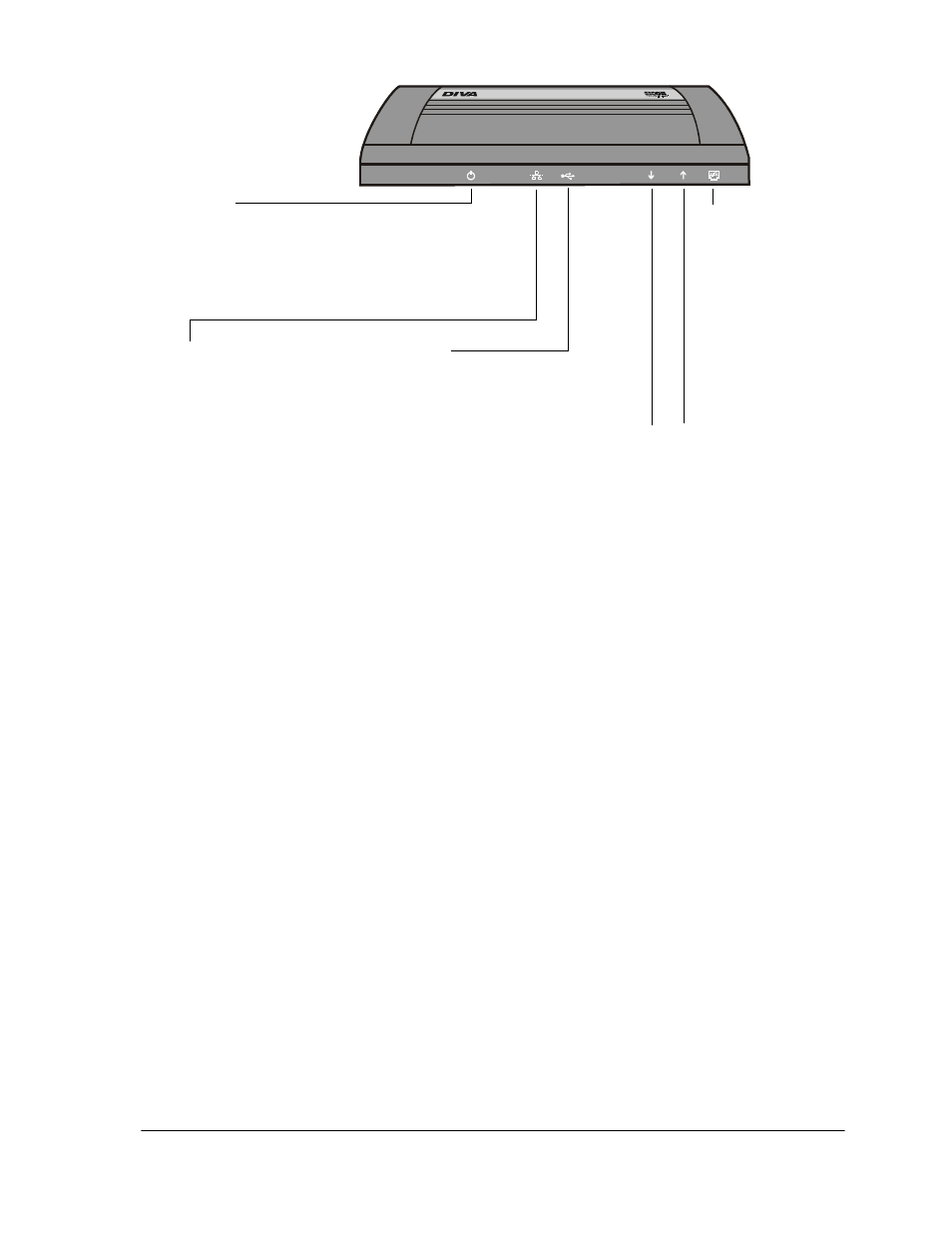

Indicator Lights
Power Light
Solid Green: The unit is on and working correctly.
Off: The power adapter is not connected.
Red: The device has encountered a fault condition or is
in boot mode. Press the Reset button once to return the
device to normal.
Ethernet Light
Solid Green: The Ethernet cable
is connected properly.
Flashing: Data is being transferred
to or from your computer over the
Ethernet cable.
Off: The Ethernet cable is
not connected.
USB Light
Green: The USB cable is properly
connected and the operating system is
configured to use the device.
Flashing: Data is being transferred to or
from your computer over the USB cable.
Off: The cable is not connected properly
or the operating system is not configured
for this device. This light may also go off if
your computer is put in low power mode.
Receive and Transmit Lights
Flashing: Data is being received or
transmitted via the ADSL connection.
Off: Data is not being received or transmitted.
ADSL Light
Solid Green: An ADSL connection has
been established.
Flashing Green: The Diva 2440 is
attempting to synchronize with your
provider’s ADSL network.
Off: The ADSL cable is not connected
properly, or your ADSL service provider
has not yet activated ADSL services on
your line.
