SAG582135000 System Application Guide
Issue AE, January 31, 2007 Spec. No. 582135000 (Model LXP48F1)
Page 40 of 43
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

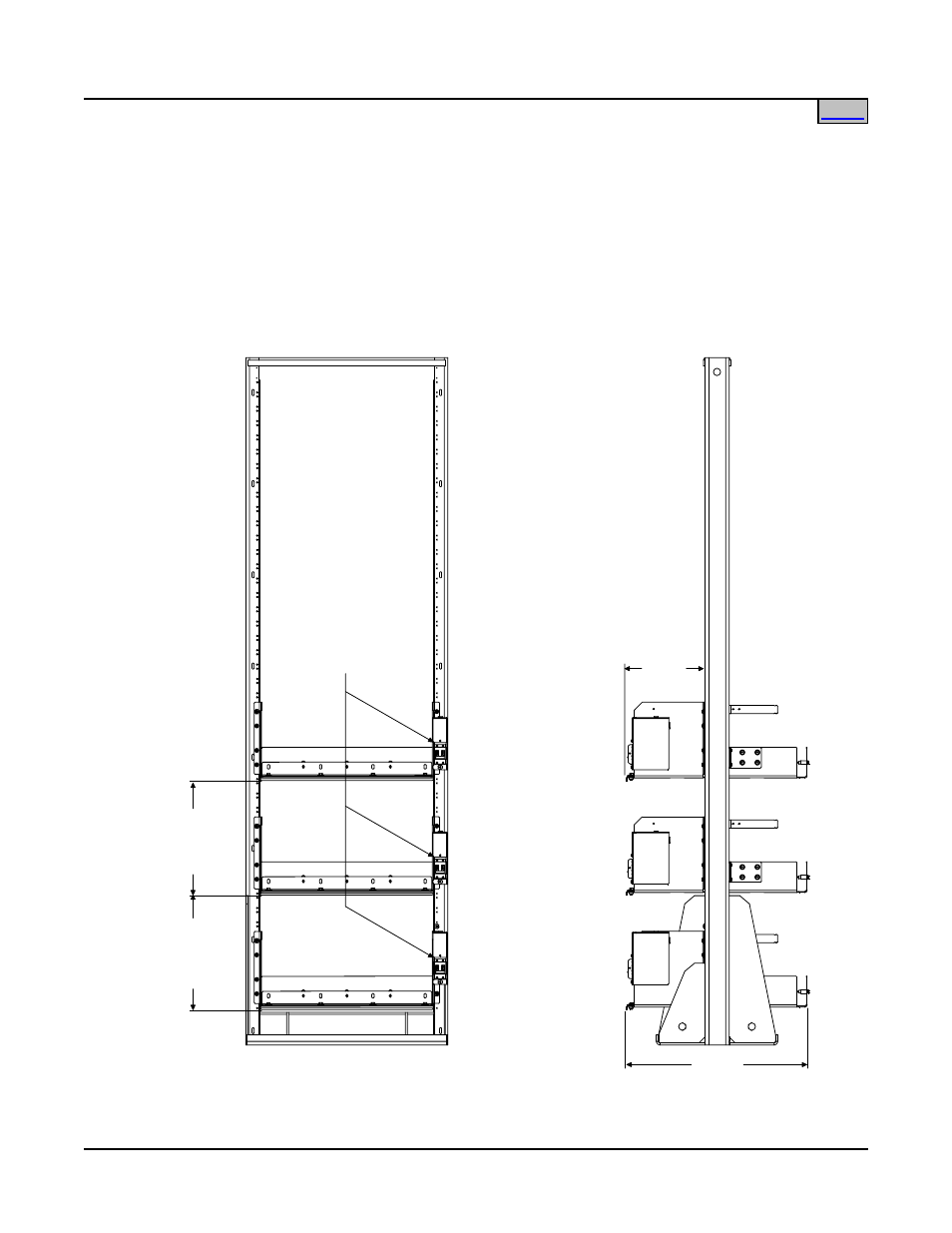

Dimensions of System Configured with List 93 Battery Trays
Notes:
1.
2.
3.
Three trays shown as example.
Max. available per rack: five.
Dimensions are in inches.
Net Weight Per Tray, Less Batteries:
With Circuit Breaker Option: 33 lbs.
Without Circuit Breaker Option: 29 lbs.
FRONT VIEW
12.25 or 14.00
as ordered
12.25 or 14.00
as ordered
Optional Battery
Disconnect Circuit
Breakers. Shown on
Right Side. Available
on Either Side.
RIGHT SIDE VIEW
24.437
9.781
