SAG582135000 System Application Guide
Issue AE, January 31, 2007 Spec. No. 582135000 (Model LXP48F1)
Page 38 of 43
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

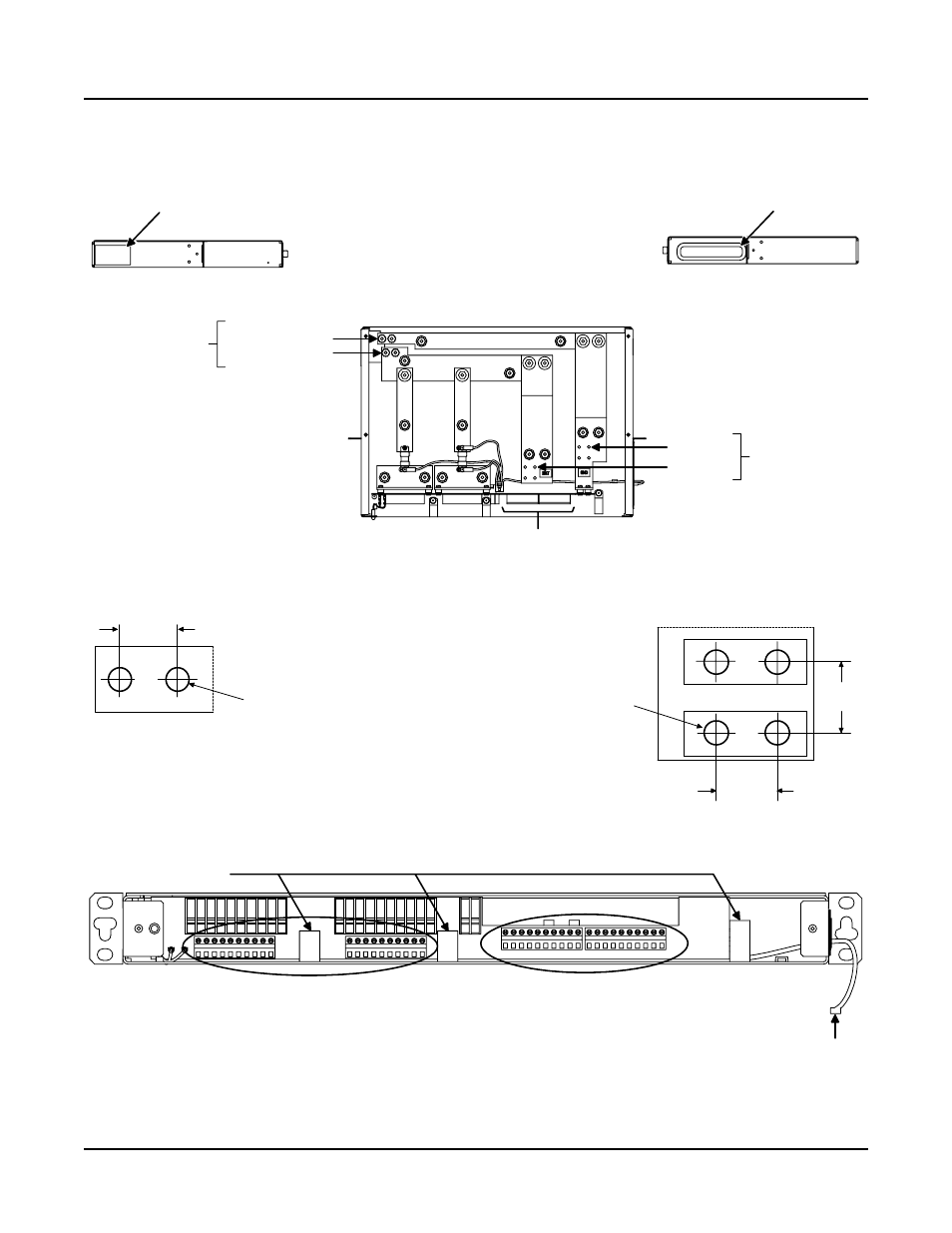

Distribution Cabinet Electrical Connection Locations and Dimensions—
List GA
TOP VIEW
(COVER
REMOVED)
RIGHT SIDE VIEW
BATTERY & LOAD
WIRING EXIT
BATTERY
See Detail B
NEG (-)
POS (+)
1/4-20 X 0.625
Threaded Stud,
4 Places per Polarity
(Customer supplies lug
mounting hardware. For
standard flat & lock washers
torque to 84 In. Lbs.)
0.750
Load Return Connections
Cable Clamps for Load
Conductor Routing
Load Connections
Fuse
Alarm
Lead
FRONT VIEW
(COVER
REMOVED)
DETAIL B
0.625
INPUT
See Detail A
-48V Input (-)
Input Return (+)
LEFT SIDE VIEW
Note: All dimensions are in inches.
1/4-20 X 0.625
Threaded Stud,
2 Places per Polarity
(Factory supplies lug
mounting hardware. For
standard flat & lock washers
torque to 84 In. Lbs.)
DETAIL A
0.625
LOAD CONNECTIONS
See Detail C on
following page.
ENTRANCE FOR INPUT
CABLING (SIDE OR BOTTOM)
