Chapter 2: Unpacking and Installing Your FN10
Page 2-4 Fast Network 10 User Guide
Table 2-2 describes the FN10 buttons.
2.2 INSTALLING THE FN10
Table-mounting an FN10
If the FN10 is to be table-mounted, make sure you install the four stick-on
feet on the bottom of the unit, as shown in Figure 2-3. In addition, make
sure the unit is within reach of the network cables to which it will be
connected.

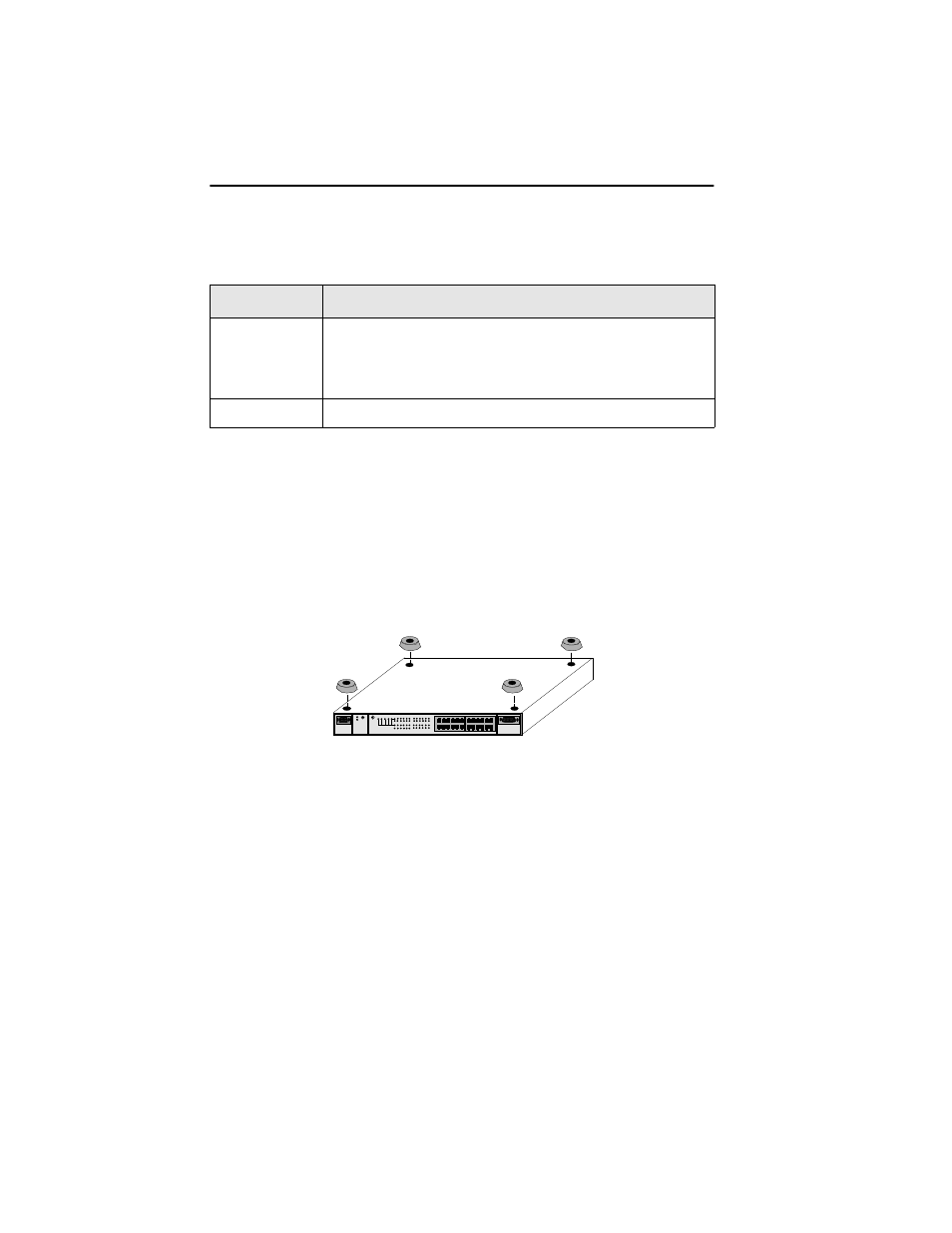

Figure 2-3 Installing the Stick-on Feet
Table 2-2 Description of FN10 Buttons
Button Function
Select
Cycles through the Segment Status options (TX, RX, Act,
Col, and Usr) for all ports. The lower port status LEDs of the
ports you are monitoring are activated based on what
function you chose with the Select button.
Reset Restarts the FN10.
