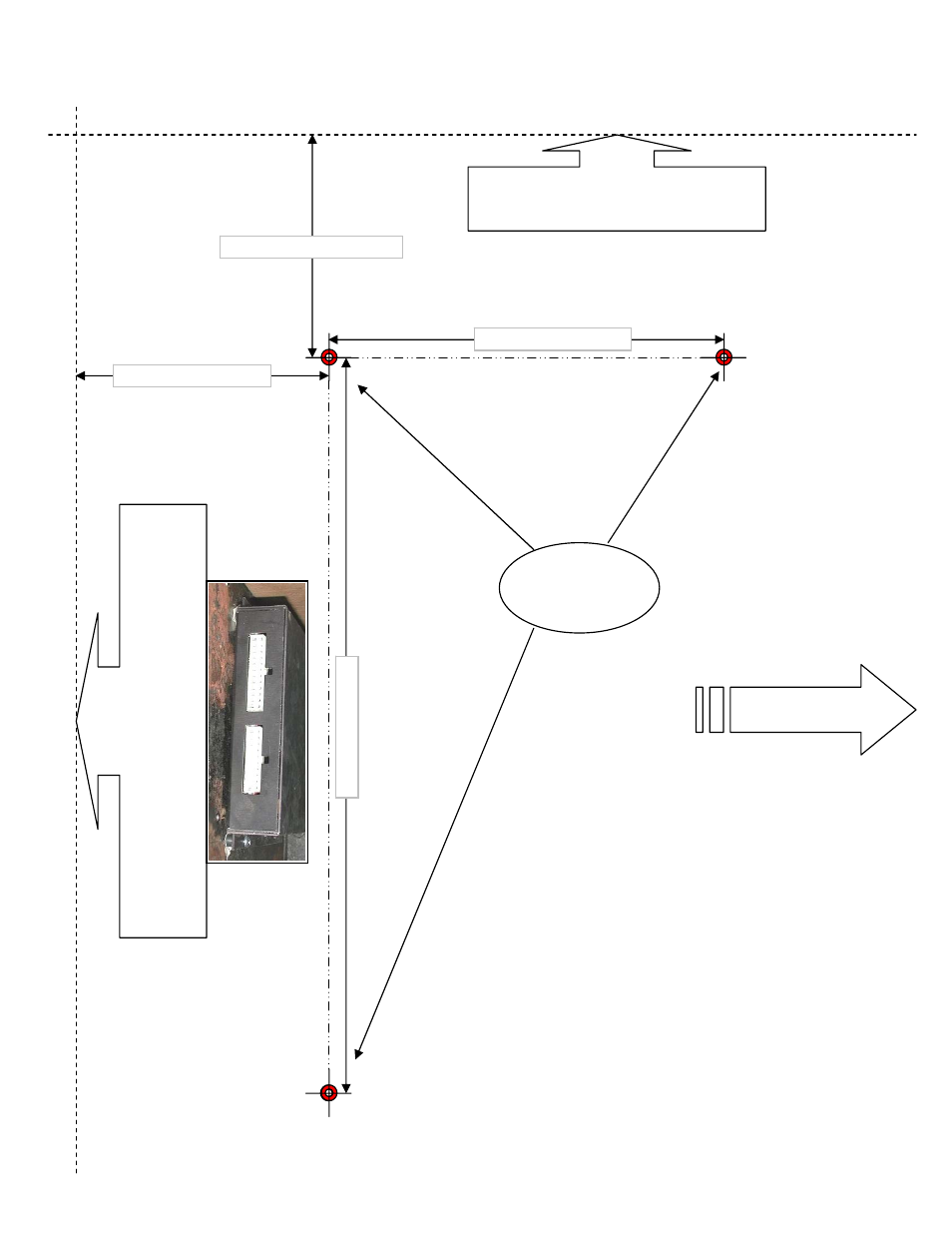

ECU Mounting Template
The dimensions are given so that you can
verify that printing or copying the template has
not affected the accuracy of the hole locations.
Lay the ECU on top of the template and make
sure the hole locations in the mounting flange
have not been changed.
Cut or fold th
e pape
r alon
g
the dotted line, then align this
edge of the p
aper
with the bend in the
sheet metal un
der
the dash. This edg
e is cl
osest to the sea
t. The end of the
ECU with the
large
re
ctang
ular conn
ecto
rs fa
ce
s se
at.
Towards the firewall
Mark and
center-punch
these 3 holes
2 ” to the dotted line
Hole #1
3 9/16 “ center to center
2 ¼ ” to the dotted line
6 9/16 ” cente
r to
center
