Bios Settings
Chapter 4
Network Application Platforms

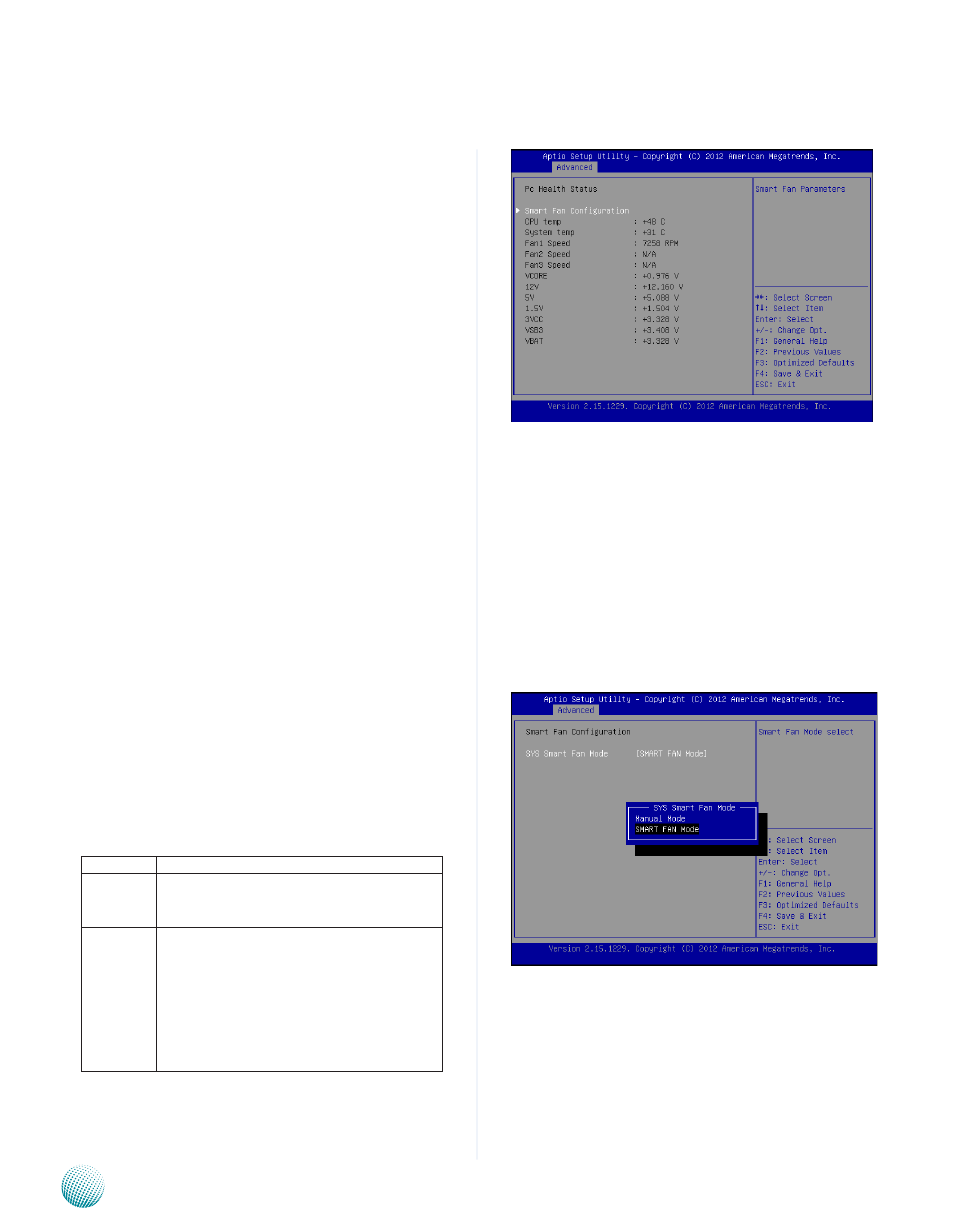

Hardware Monitor Setting
This menu shows the hardware monitor configuration
settings. Select an item then press
configuration options.
System/CPU Temperature
The onboard hardware monitor automatically detects and
displays the CPU and motherboard temperatures.
FAN1/FAN2/FAN3 Speed
The onboard hardware monitor automatically detects
and displays the CPU , chassis and system fan speeds in
rotations per minute (RPM). If the fan is not connected to
the motherboard, it displays N/A.
CPU Voltage, 3.3V voltage, 5V voltage, 12V voltage
The onboard hardware monitor automatically detects the
voltage output through the onboard voltage regulators.
Smart Fan Mode Configuration
It allows you to configure the smart fan feature. You
can manually turn on the CPU fan or set the target CPU
temperature at which the CPU fan will start running if the
fan is not yet turned on. And the CPU fan can also be turned
off automatically if the temperature for the CPU is at or
below the specified value. Refer to Motherboard Layout on
Chapter 3 Block Diagram for CPU fan connectors.
Manually set the fan speed. Valid values are
from 0 to 255; 255 denotes the full speed
This mode presets target system tem-
perature at which the fan will start running
according to the following predetermined
C)......................6000RPM (equivalent to
