Electrical Connection

SMA Solar Technology AG

32

SB33_38-IEN111851

Installation Guide

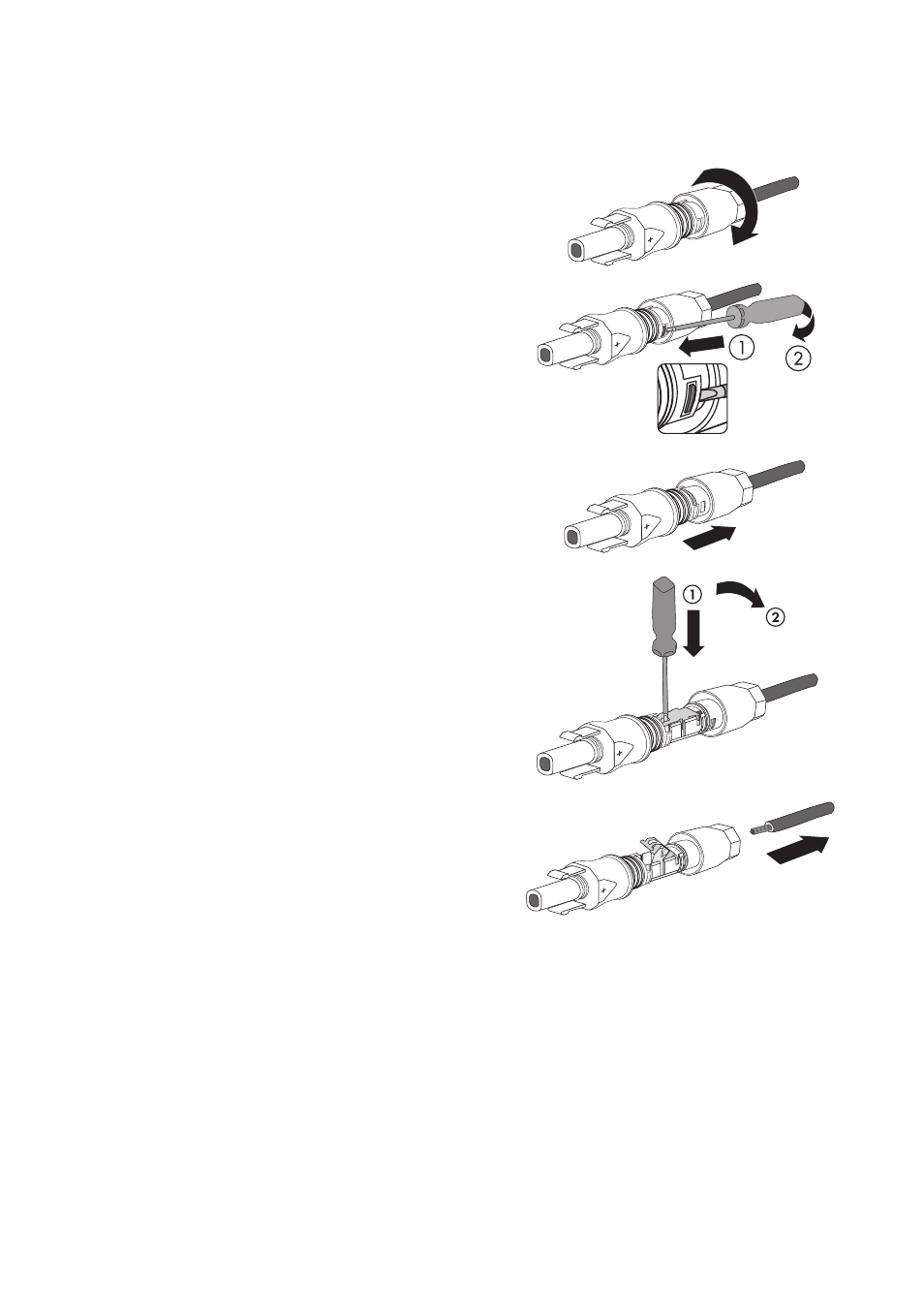

5.5.3 Opening the DC Plug Connector

1. Screw the threaded joint off.

2. To release the plug connector, slot a screw driver

into the side catch mechanism and lever out.
For this purpose, use a screwdriver with a width
of 3.5 mm.

3. Carefully pull the DC connector apart.

4. Loosen the clamping bracket. For this purpose, use

a screwdriver with a width of 3.5 mm.

5. Remove the cable.

☑ The cable is now removed from the DC plug connector.
