SMA Solar Technology AG Mounting the Device
Installation Guide Sensorbox-IEN100914 35

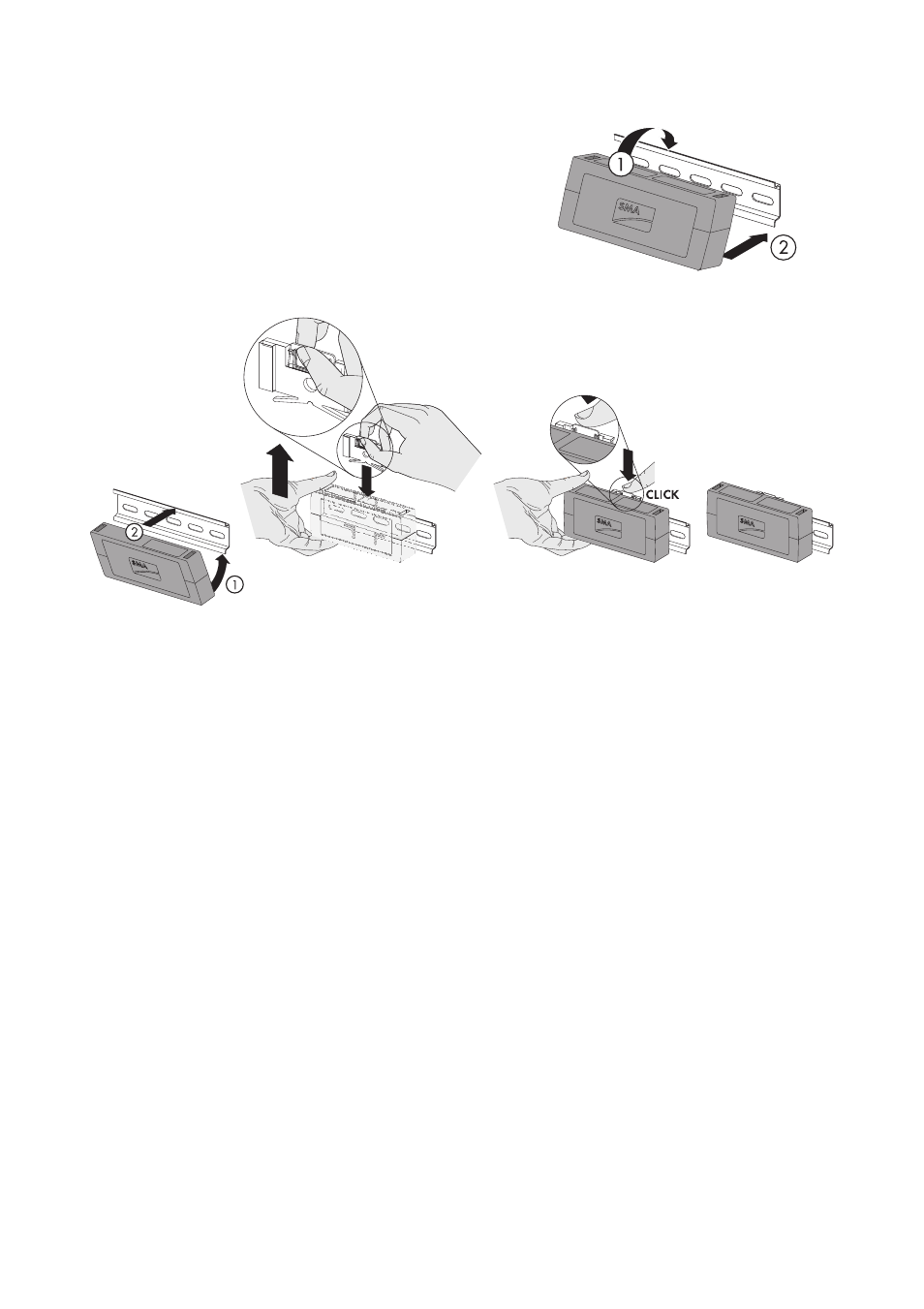

2. Hook the ridge at the top of the SMA Power
Injector with Bluetooth into the top edge of the top
hat rail.
3. Press the SMA Power Injector with Bluetooth down
on the top hat rail and hold.
4. Press the middle of the bracket down into the guide rail until it snaps into place.
☑ The SMA Bluetooth Repeater is now mounted.
Information on how to detach the SMA Power Injector with Bluetooth from the top-hat rail can be
found in section 10.3 ”Dismantling the SMA Power Injector with Bluetooth ” (page 66).
