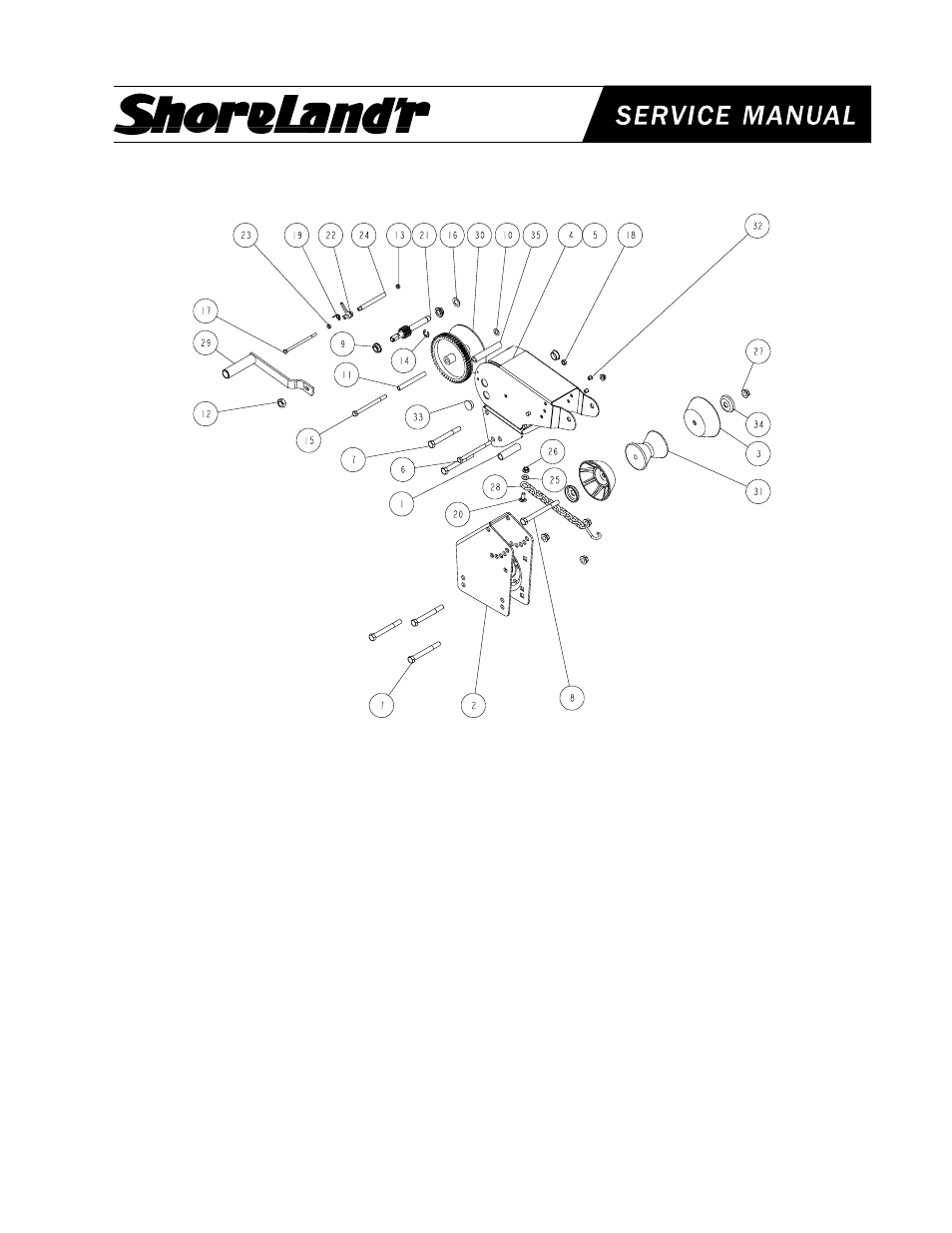

Profile 2000 Winch Assembly
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002814
www.shorelandr.com REV - 7/11/00
Winch Post Assembly:
Mount the winch post to the tongue in the desired position and
secure with three (3) 1/2” X 4” carriage bolts and 1/2” flange lock
nuts. Mount the winch handle on the winch shaft using the special
hardware provided with the winch.
Winch Post Adjustment:
Before adjusting the winch post check to see that the transom of
the boat is flush with the rear of bunks. Slide the winch post into
position. NOTE: The winch holder (upper portion) must be
positioned just above the bow eye. Run the winch strap over the
upper nylon bushing in the winch case and secure to the bow eye.
Tighten all bolts on the winch post. Slip the bow eye safety chain
into the bow eye. Adjustment is complete.
REF# PART# DESCRIPTION QTY
1 6081610 WINCH POST SPACER ............................ 1
2 60930-- WINCH POST 7IN ................................... 1
3 6107503 END CAP - BLACK PROFILE 2000 .......... 2
4 65657-- WINCH HOLDER CASE ............................ 1
5 65659-- PROFILE 2000 WINCH CASE ASSY ........ 1
6 0110064 HH 3/8-16 X 5 CS GR5 .............................. 1
7 0110118 HH 1/2-13 X 4 1/2 CS GR5 ........................ 5
8 0110125 HH 1/2-13 X 5 1/2 CS GR5 ........................ 1
9 204009 SHAFT BUSHING DL1400/2500 .............. 2
10 204360 SPACER WASHER DL1602 ..................... 1
11 204808 REEL SPACER DL1700 ........................... 1
12 204809 HANDLE HUT DL1602 ............................. 1
13 205014 LOCK NUT DL1400/1700/1802/2500 ....... 1
14 205116 E-RING DL1602/1700/2500 ....................... 1
15 205126 HH 3/8-16 X 5 CS GR5 .............................. 1
16 205139 SPACER WASHER DL1700/1802/2500 .... 1
17 205269 RATCHET PAWL BOLT 1/4-20 X 5 ........... 1
18 205270 LOCKNUT 3/8-16 JAM STYLE - WINCH .. 1
19 206281 EXTENSION SPRING DL1400-2500 BLU 1
20 0210102 CARR 3/8-16 X 1 GR5 ............................... 1
21 304731 DRIVE SHAFT UPPER DL1802 ............... 1
22 404868 REVERSABLE RATCHET PAWL .............. 1
23 404872 RACHET SPACER DL1700/2500 ............. 1
24 404878 RATCHET SLEEVE DL1700/2500 ........... 1
25 1340095 WASHER USS FLAT 3/8 ........................... 1
26 1440101 FLANGE LOCKNUT SMALL 3/8-16 .......... 2
27 1440102 FLANGE LOCKNUT SMALL 1/2-13 .......... 6
28 2210145 CHAIN 1/4(7MM)X 10 LINKS .................... 1
29 3110237 WINCH HANDLE DL1802 ......................... 1
30 3110348 WINCH REEL W/STRAP DL1800/1802 ... 1
31 3510065 4" BOW ROLLER - BLACK ........................ 1
32 3520011 PLUG 3/8IN WHITE PLASTIC .................. 4
33 3520019 PLUG 1IN WHITE PLASTIC ..................... 2
34 LH308 CUP WASHER ........................................... 2
35 S-3374 NYLN WINCH CASE BUSH-3/4ODX4.25 . 1
