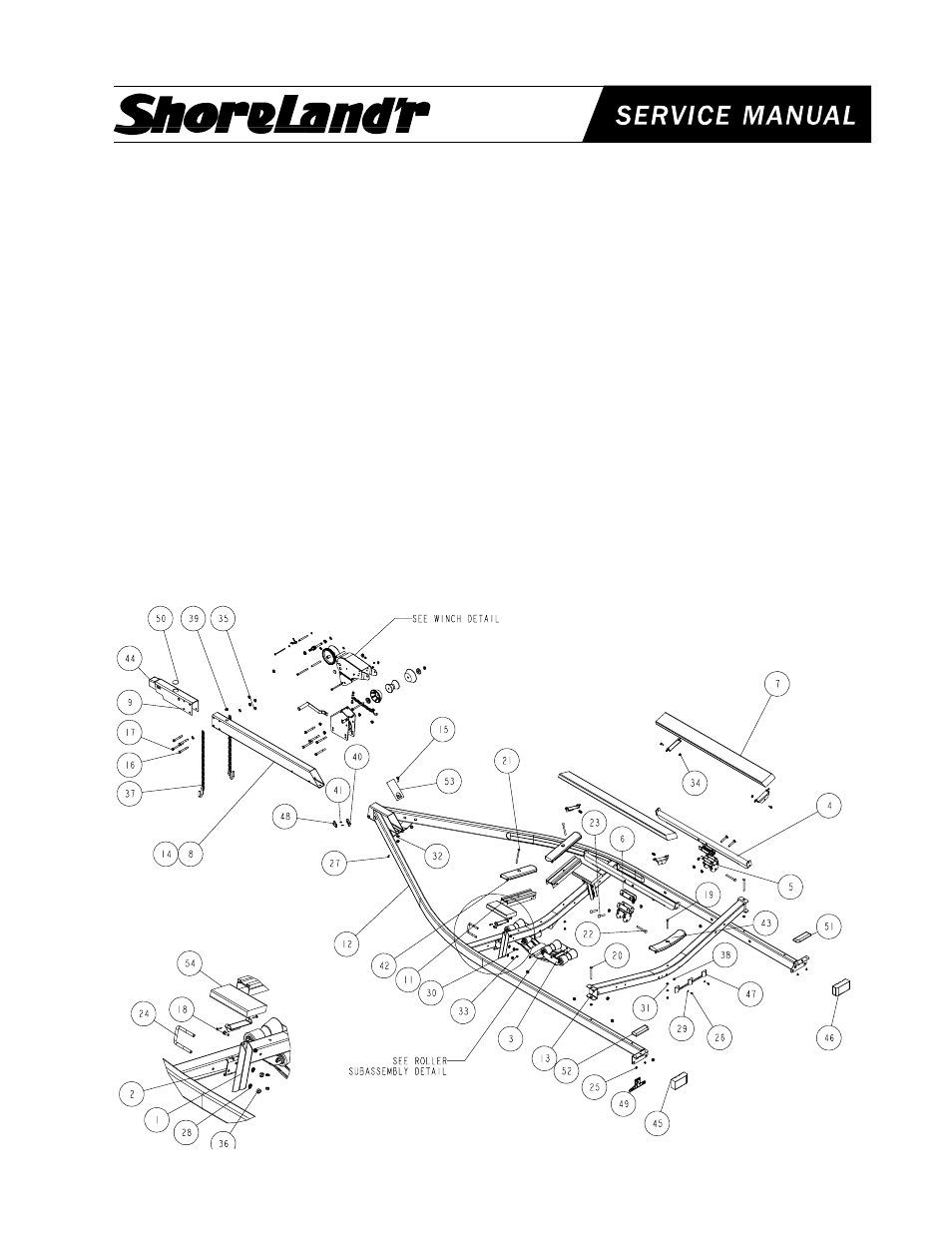

ShoreLand'r 2x4W - Manual (Page 31)

SLRB24BWS/31BWS
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002861
www.shorelandr.com REV A 10/24/00
®
REF# PART# DESCRIPTION QTY
1 60888-- KEEL CRADLE ASSY ............................ 1
2 61852-- BUNK SUPPORT CHANNEL ................ 2
3 61914-- ROLLERARM MTG BRKT WMENT ...... 2
4 62087 PLASTIC SPACER REAR PIVOT ARM 2
5 62168 BUNK ASSY REAR BUNK KIT .............. 2
- 64145 BRAKELINE ASSY 186" W/COILS ...... 1
6 65541-- TONGUE 3X5X55 .................................. 1
7 65542-- OUTER HOUSING - UFP ACTUATOR . 1
- 65601 BRAKELINE ASSY 56" ......................... 1
8 65781 ALUM EXT - CENTER PAD RISER 124 2
9 66100-- FRAME WMENT 80 WIDE 178 LONG .. 1
10 66128-- REAR CROSS WMENT (80 WIDE) ....... 1
11 66501-- TONGUE SUB ASSY ............................. 1
12 0110096 HH 1/2-20 X 1-1/2 .................................. 1
13 0110114 HH 1/2-13 X 4 CS GR5 .......................... 4
14 0110120 HH 1/2-13 X 5 CS GR5 .......................... 1
15 0140040 HH 3/8-16 X 1 CS GR5 .......................... 4
16 0210130 CARR 3/8-16 X 3 3/4 GR5 .................... 1
17 0210137 CARR 3/8-16 X 5 FULL THREAD GR5 . 2
18 0210138 CARR 3/8-16 X 5 1/2 FULL GR5 .......... 2
19 0210220 CARR 1/2-13 X 4 1/2 GR5 .................... 2
20 0240210 CARR 1/2-13 X 3 GR5 ........................... 4
21 0810126 SCREW SELFTAP TYPE B 1/4X1/2 ..... 4
22 0810925 SCRW SELFDRILL HWH #10-16 X 3/4 2
23 0810945 SCREW SELFDRILL 1/4-14X3/4 ......... 1
REF# PART# DESCRIPTION QT
24 1310170 WASHER #10 USS FLAT ...................... 2
25 1340030 LOCKWASHER 3/8 S/T MED ................ 3
26 1340095 WASHER USS FLAT 3/8 ....................... 1
27 1340100 WASHER USS FLAT 1/2 ....................... 3
28 1410109 HEX NUT FINISH 3/8-16 ....................... 3
29 1440101 FLANGE LOCKNUT SMALL 3/8-16 ...... 6
30 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 12
31 2220272 CHAIN 8/0 MACH CHAIN 37" W/837 .... 2
32 3510022 GROMMET 7/16IN MOLDED ............... 1
33 3510030 GROMMET 7/8IN MOLDED ................. 11
34 3510122 LIGHT BEZEL - WHITE ......................... 2
35 3510158 PLASTIC DRIVE RIVOT ........................ 4
36 3510538 REAR CROSSMEMBER PAD ............... 2
37 3510542 MOLDED REAR CROSSMEMBER PAD 1
38 3820060 ACTUATOR INNER ............................... 1
39 5110013 DRY LAUNCH LIGHT ASSY (LEFT) ..... 1
40 5110014 DRY LAUNCH LIGHT ASSY (RIGHT) .. 1
41 5110045 3 LIGHT CLUSTER 1994 LEXAN ....... 1
42 5110112 MARINE YELLOW CLEARANCE LIGHT2
43 5110348 BO LICENSE PLATE BRACKET ........... 1
- 5110347 HARNESS 5-PRONG FLAT .................. 1
- 5110354 HARNESS FRAME 2X4 LEFT 17FT 2 .. 1
- 5110355 HARNESS FRAME 2X4 RIGHT 17FT 2 1
44 S-3390 STEP PAD RIGHT 2 1/2 X 7 .............. 1
45 S-3391 STEP PAD LEFT 2 1/2 X 7 ................. 1
46 S-3510 TONGUE COVER PLATE ..................... 1
#0002814
#0002889
BOM does not match drawing!
