ShoreLand'r 2x4W - Manual (Page 49)

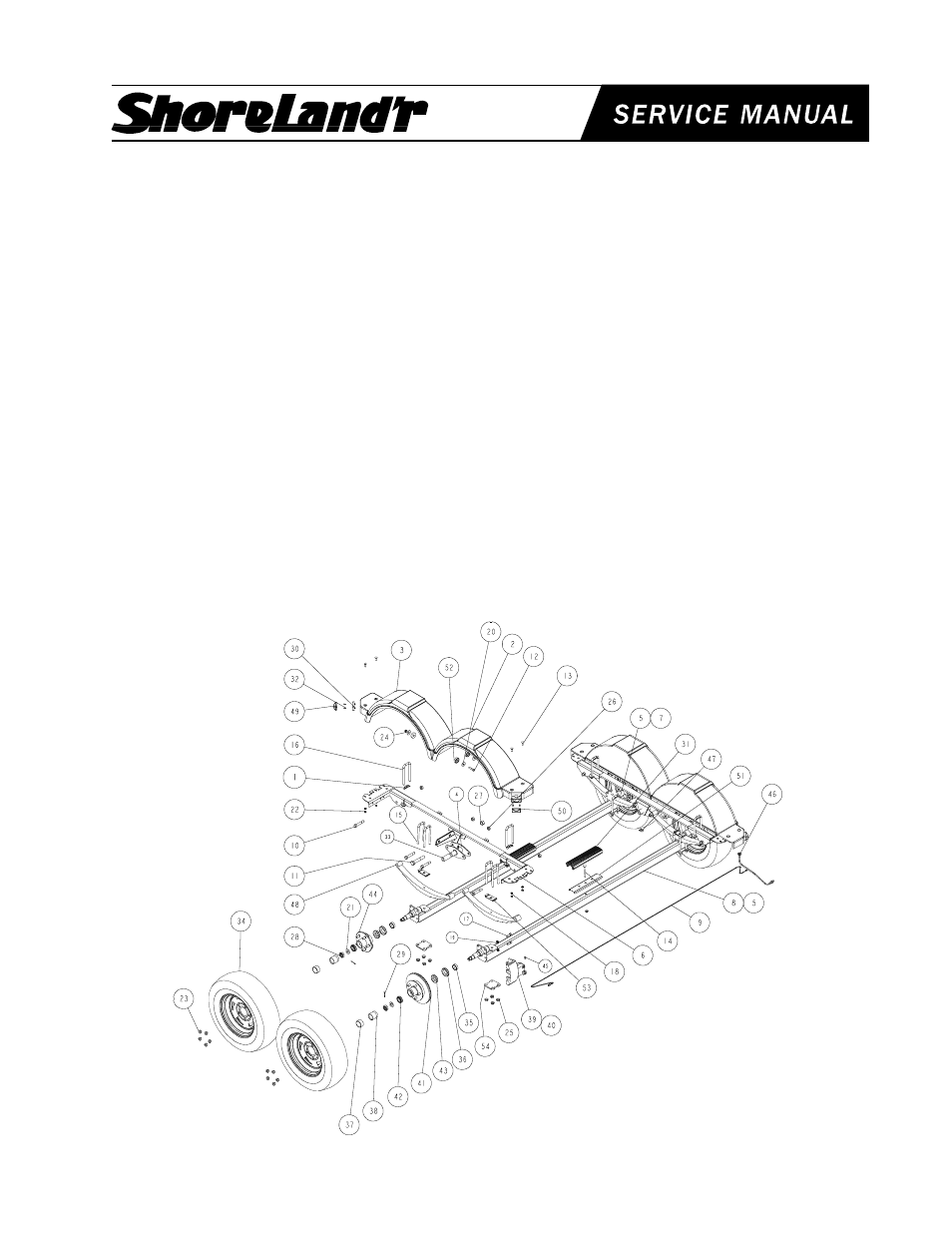

Chassis - 40TB
REF# PART# DESCRIPTION QTY
1 4279 SHIM PAD U BOLT 12GA FRAME ..... 4
2 60880-- FENDER 9IN POLY RF/LR .................. 2
3 60887-- FENDER 9IN POLY LF/RR .................. 2
4 6239200 TANDEM BOGIE 2X5 .......................... 2
5 66155-- AXLE WMENT (80 WIDE) ..................... 2
6 66163-- SPRING BRKT 9IN TANDEM ............. 2
7 66167-- AXLE ASSY80 WIDE ............................. 1
8 66439-- AXLE ASSY 80 WIDE W/BRAKES ........ 1
9 66472 BRAKE LINE ASSY 105" ....................... 1
10 0110170 HH 9/16-18 X 3 1/4 CS GR5 ................. 8
11 0110282 HH 3/4-10 X 4 1/2 CS GR5 ................... 2
12 0140047 HH 3/8-16 X 1 3/4 CS GR5 ................... 4
13 0210058 CARR 5/16-18 X 1 GR5 ......................... 8
14 0210130 CARR 3/8-16 X 3 3/4 GR5 .................... 2
15 0310170 SUB 1/2" X 2-5/16"X6-1/2 ...................... 8
16 0310276 SUB 1/2 X 2 9/16 X 6 1/2 ...................... 4
17 0610042 SOCKET HEAD SCREW 7/16-20X1-1/4 4
18 1310025 LOCKWASHER 5/16 S/T MED .............. 8
19 1310035 LOCKWASHER 7/16 S/T ....................... 4
20 1310163 WASHER 1.377 OD X .390 ID .............. 8
21 1340206 WASHER 1.5 OD X .765 ID X .186/.206 2
22 1410069 HEX NUT FINISH 5/16-18 ..................... 8
23 1410229 HEX LUGNUT 1/2-20 13/16 OD Z&U .... 20
24 1440101 FLANGE LOCKNUT SMALL 3/8-16 ...... 6
25 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 24
26 1440259 HEX LOCKNUT 9/16-18 GRA ............... 8
27 1440319 HEX NUT 3/4-16 UNF ........................... 2
REF# PART# DESCRIPTION QTY
28 1440349 HEX NUT SLOTTED PLAIN .................. 2
29 1540038 COTTER KEY 1/8 X 1 1/2 ..................... 2
30 3510122 LIGHT BEZEL - WHITE ......................... 4
31 3510132 AXLE PAD 12IN BLK ............................ 2
32 3510158 PLASTIC DRIVE RIVOT ........................ 8
33 3610050 BUSH 3/4 IDX1 ODX1 1/2 BRONZE ..... 2
34 4300214 ST175/80R13C TIRE/MSLVR DIR RIM 4
-- 4300213 ST175/80R13C TIRE/GALV. DIR RIM .. 4
35 4410089 SPINDLE SLEEVE 1 1/4-3/4IN BRG .... 4
36 4410130 SEAL 1 3/8IN ........................................ 2
37 4410246 SL BEARING PROTECTOR BRA ......... 2
38 4410247 BEARING BUDDY - SS ......................... 2
39 4410289 DISC BRAKE CALIPER ASSY .............. 1
40 4410290 DISC BRAKE CALIPER ASSY .............. 1
41 4410291 SUBASSY DICO 10" BRAKE DRUM .... 2
42 4440160 ROLLER BEARING 1 1/16IN .............. 2
43 4440170 ROLLER BEARING 1 3/8IN ................ 2
44 4470400 HUB 1 3/8 X 1 1/16 CAST ................... 2
45 4510506 PLUG ..................................................... 1
46 4510511 HOSE - 18IN MALE-FEMALE BRAKE .. 1
47 4510518 HOSE CLIP - 1457-YZ ........................... 1
48 4610072 SPRING 5 LEAF HOOK ....................... 4
49 5110112 MARINE YELLOW CLEARANCE LIGHT2
50 5110113 MARINE RED CLEARANCE LIGHT ...... 2
51 S-3387 2" PLASTIC CHANNEL BRACKET ....... 2
52 S-3501 RUBBER CUP WASHER ....................... 8
53 S-3409G SPRING CLAMP 1/4X1 1/2X4 ZYU ... 4
54 S-3449G SPRING AND AXLE U-BOLT PLATE .... 4
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002847
www.shorelandr.com REV A 11/01/00
®
