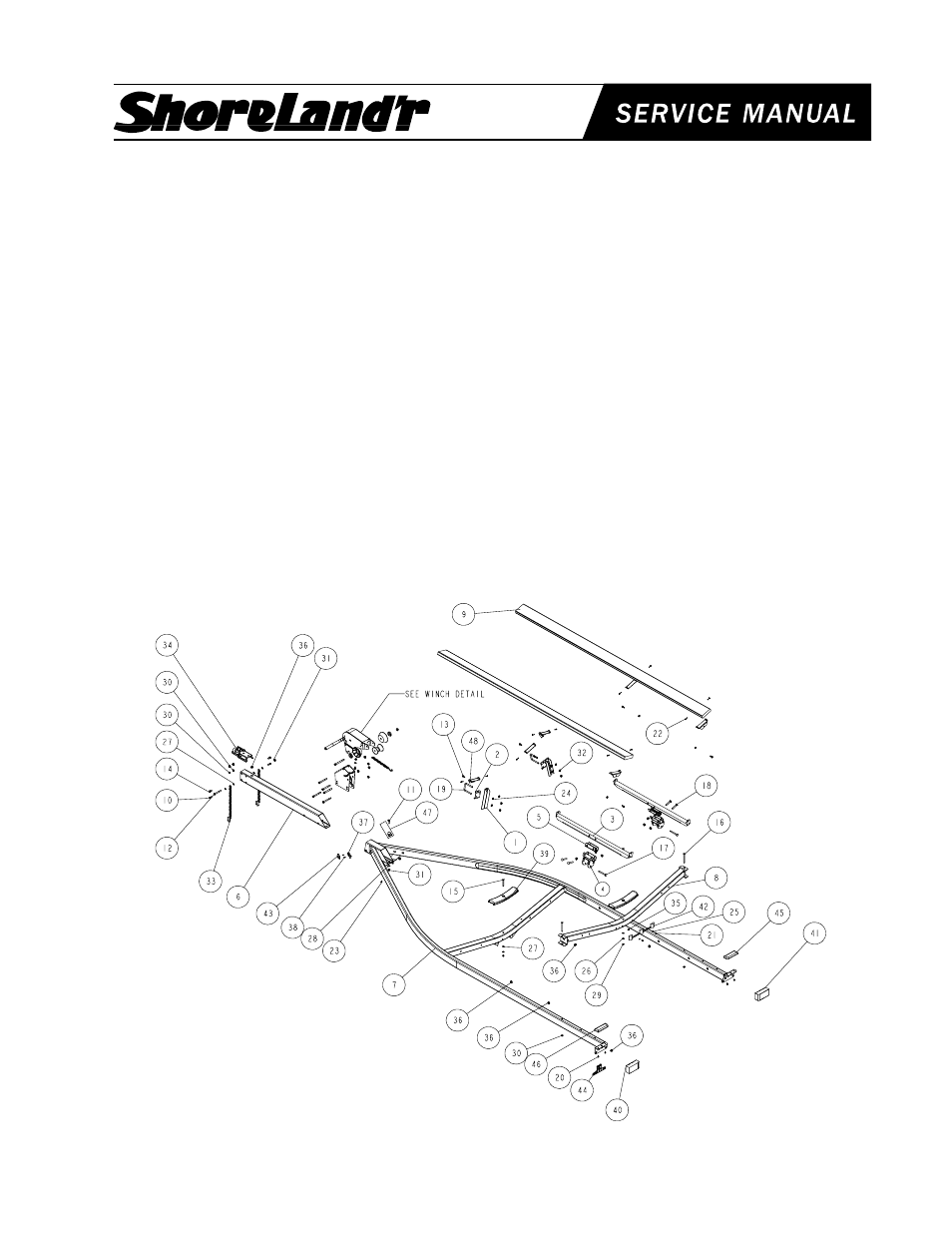

ShoreLand'r 2x4W - Manual (Page 5)

REF# PART# DESCRIPTION QTY
1 60047-- ADJ BUNK BRKT ................................... 2
2 6046200 ADJUSTABLE BUNK CLAMP ............... 2
3 61852-- BUNK SUPPORT CHANNEL ................ 2
4 61914-- ROLLERARM MTG BRKT WMENT ...... 2
5 62087 PLASTIC SPACER REAR PIVOT ARM 2
6 65541-- TONGUE 3X5X55 .................................. 1
7 66102-- FRAME WMENT 80 WIDE 190 LONG .. 1
8 66128-- REAR CROSS WMENT (80 WIDE) ....... 1
9 66406 BUNK ASSY BUNK LONG 2X4 ............. 2
10 0110037 HH 3/8-16 X 1 1/4 CS GR5 ................... 2
11 0110096 HH 1/2-20 X 1-1/2 .................................. 1
12 0110114 HH 1/2-13 X 4 CS GR5 .......................... 2
13 0140040 HH 3/8-16 X 1 CS GR5 .......................... 6
14 0140090 HH 1/2-13 X 1 CS GR5 .......................... 2
15 0210130 CARR 3/8-16 X 3 3/4 GR5 .................... 2
16 0210137 CARR 3/8-16 X 5 FULL THREAD GR5 . 2
17 0210220 CARR 1/2-13 X 4 1/2 GR5 ....................
18 0240210 CARR 1/2-13 X 3 GR5 ........................... 4
19 0310228 SUB 1/2 X 3 9/16 X 4 1/4 ...................... 2
20 0810126 SCREW SELFTAP TYPE B 1/4X1/2 ..... 4
21 0810925 SCRW SELFDRILL HWH #10-16 X 3/4 2
22 0810930 SCREW SELFTAP #10-12X1 1/4 T- A .. 4
23 0810945 SCREW SELFDRILL 1/4-14X3/4 ......... 1
24 1310040 LOCKWASHER 1/2 S/T MED ................ 4
25 1310170 WASHER#10 USS FLAT ....................... 2
REF# PART# DESCRIPTION QTY
26 1340030 LOCKWASHER 3/8 S/T MED ................ 2
27 1340095 WASHER USS FLAT 3/8 ....................... 6
28 1340100 WASHER USS FLAT 1/2 ....................... 1
29 1410109 HEX NUT FINISH 3/8-16 ....................... 2
30 1440101 FLANGE LOCKNUT SMALL 3/8-16 ...... 10
31 1440102 FLANGE LOCKNUT SMALL 1/2-13 ...... 11
32 1440159 HEX NUT FINISH 1/2-13 ....................... 4
33 2210155 CHAIN 3/16X20 LINK CHAIN ................ 2
34 3100010 COUPLER #980 P2 ASSEMBLED ........ 1
35 3510022 GROMMET 7/16IN MOLDED ............... 1
36 3510030 GROMMET 7/8IN MOLDED ................. 11
37 3510122 LIGHT BEZEL - WHITE ......................... 2
38 3510158 PLASTIC DRIVE RIVOT ........................ 4
39 3510542 MOLDED REAR CROSSMEMBER PAD 2
40 5110013 DRY LAUNCH LIGHT ASSY (LEFT) ..... 1
41 5110014 DRY LAUNCH LIGHT ASSY (RIGHT) .. 1
42 5110045 3 LIGHT CLUSTER 1994 LEXAN ....... 1
43 5110112 MARINE YELLOW CLEARANCE LIGHT2
44 5110348 BO LICENSE PLATE BRACKET ........... 2
- 5110349 HARNESS TONGUE 7FT .................... 1
- 5110354 HARNESS FRAME 2X4 LEFT 17FT 2 .. 1
- 5110355 HARNESS FRAME 2X4 RIGHT 17FT 2 1
45 S-3390 STEP PAD RIGHT 2 1/2 X 7 .............. 1
46 S-3391 STEP PAD LEFT 2 1/2 X 7 ................. 1
47 S-3510 TONGUE COVER PLATE ..................... 1
48 S-3179G 2X6 BUNK BRKT SPUN GALV. ............ 1
SLB23LW / SLB24LW
Made in the USA Midwest Industries, Inc. Ida Grove, IA 51445 (800)859-3028 0002831
www.shorelandr.com REV 7/13/00
®
#0002814
