Installation Drawings
43

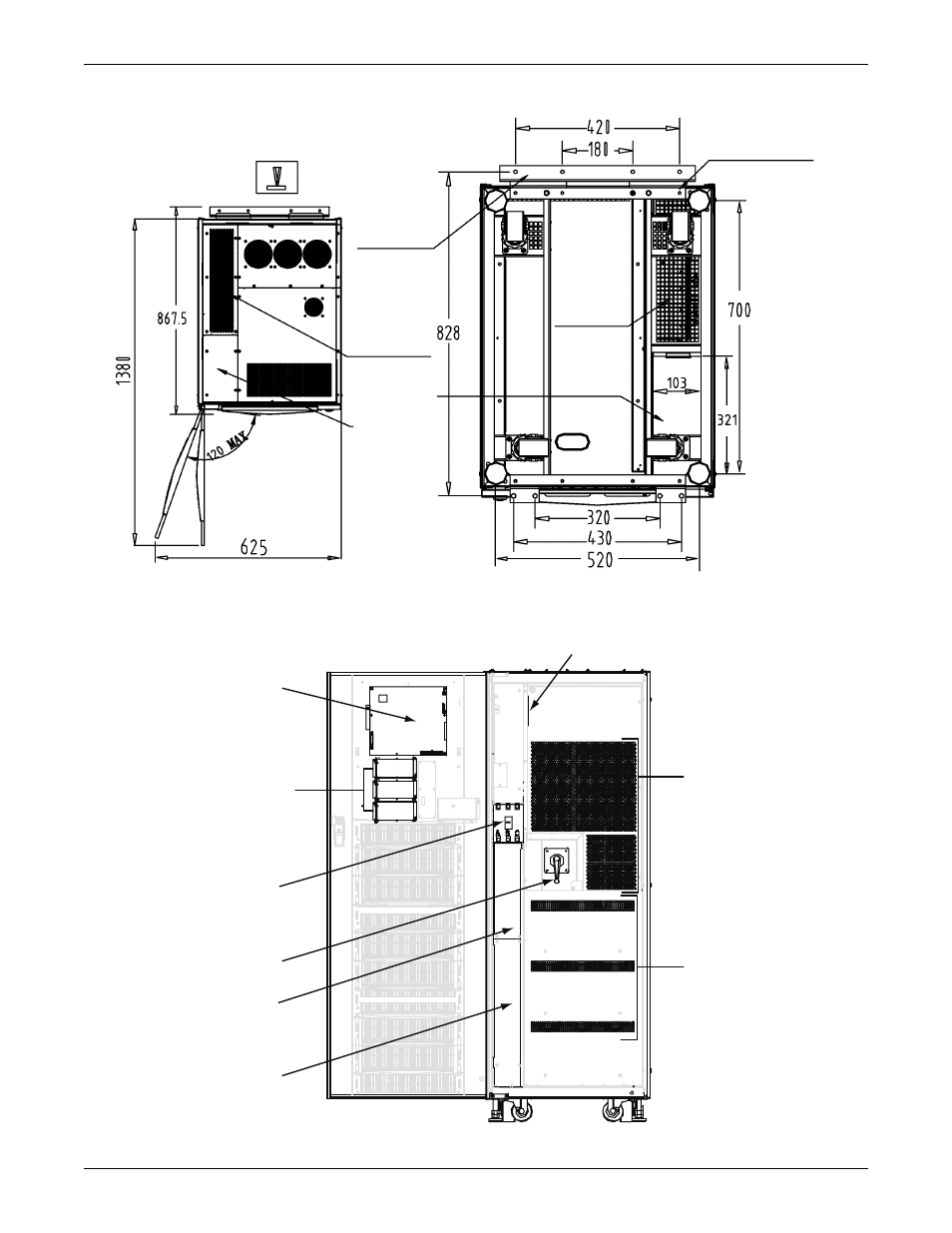

Figure 29 Dimensions continued—top and bottom views
Figure 30 Main components—typical unit
Rear stabiliz-
ing foot
Air Exhaust
Power Cable
Entry Area
Top and
Bottom
Air
10mm dia. threaded
mounting holes 4 (typ).
See Notes 8 and 9 above.
TOP VIEW BOTTOM VIEW
Monitor
Board
(U2)
IntelliSlot
Communication
Ports
Input
Breaker
Input Breaker
Access Plate
Internal and
External Battery
Terminal Block
Access Plate
Battery
Trays
Power
Electronics
Parallel Board (M3)
Front View
(with door open)
DPN U3812048
Rev. 1
Rotary
System
Switch
