Battery Installation
23

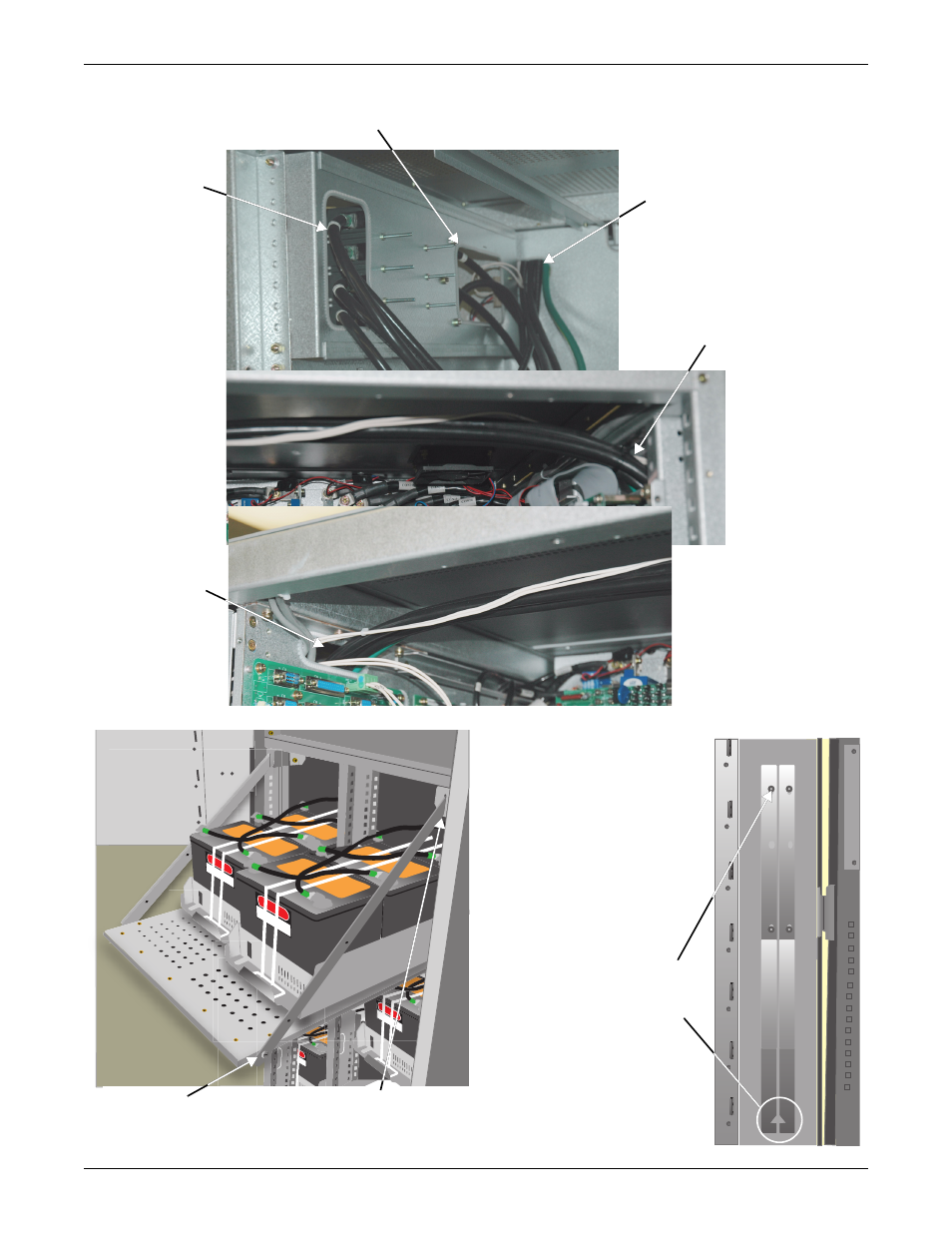

Figure 15 Internal cable wiring from battery cabinet to Liebert NX
Figure 16 Battery tray and supports
Power cables
from batteries
Power cables from output power switch
Power cables exit battery
cabinet, enter Liebert NX
Power cables run
across top
of Liebert NX
Power cables
(black) enter
channel down side
of NX to power
input connections
RIGHT SIDE CABLE
ENTRY SHOWN;
CUTOUTS ON LEFT
SIDE PERMIT
CONNECTION
FROM THAT SIDE.
Slot in support secured by
screw-in connector at
corner of battery tray ...
... and notched end of support
slips into slot at top corner
of battery compartment
Battery tray supports attach
to interior surface of NX
front door (note notched
ends of supports)
