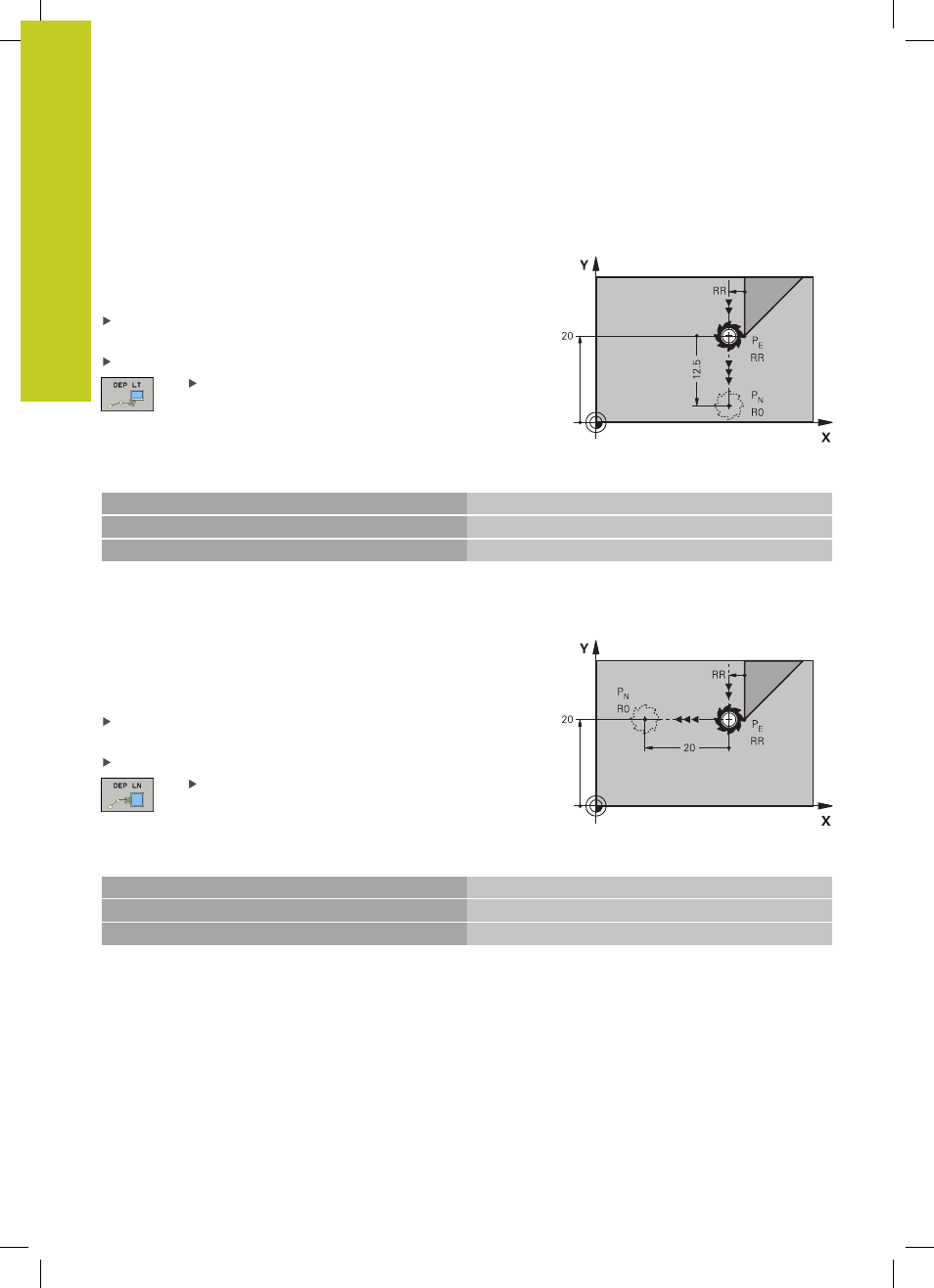

Departing in a straight line with tangential
connection:
DEP LT
The tool moves on a straight line from the last contour point P
E
to
the end point P
N
. The line lies on the extension of the last contour
element. P
N
is separated from P
E
by the distance LEN.
Program the last contour element with the end point P
E
and
radius compensation
Initiate the dialog with the
APPR/DEP key and DEP LT soft key:
LEN: Enter the distance from the last contour
element P
E
to the end point P
N
.
Example NC blocks
23 L Y+20 RR F100 Last contour element: PE with radius compensation
24 DEP LT LEN12.5 F100 Depart contour by LEN=12.5 mm
25 L Z+100 FMAX M2 Retract in Z, return to block 1, end program
Departing in a straight line perpendicular to the last
contour point:
DEP LN
The tool moves on a straight line from the last contour point P
E
to
the end point P
N
. The line departs on a perpendicular path from the
last contour point P
E
. P
N
is separated from P
E
by the distance LEN
plus the tool radius.
Program the last contour element with the end point P
E
and
radius compensation
Initiate the dialog with the
APPR/DEP key and DEP LN soft key:
LEN: Enter the distance of the end point P
N
.
Remember: always enter LEN as a positive value!
Example NC blocks
23 L Y+20 RR F100 Last contour element: PE with radius compensation
24 DEP LN LEN+20 F100 Depart perpendicular to contour by LEN=20 mm
25 L Z+100 FMAX M2 Retract in Z, return to block 1, end program
