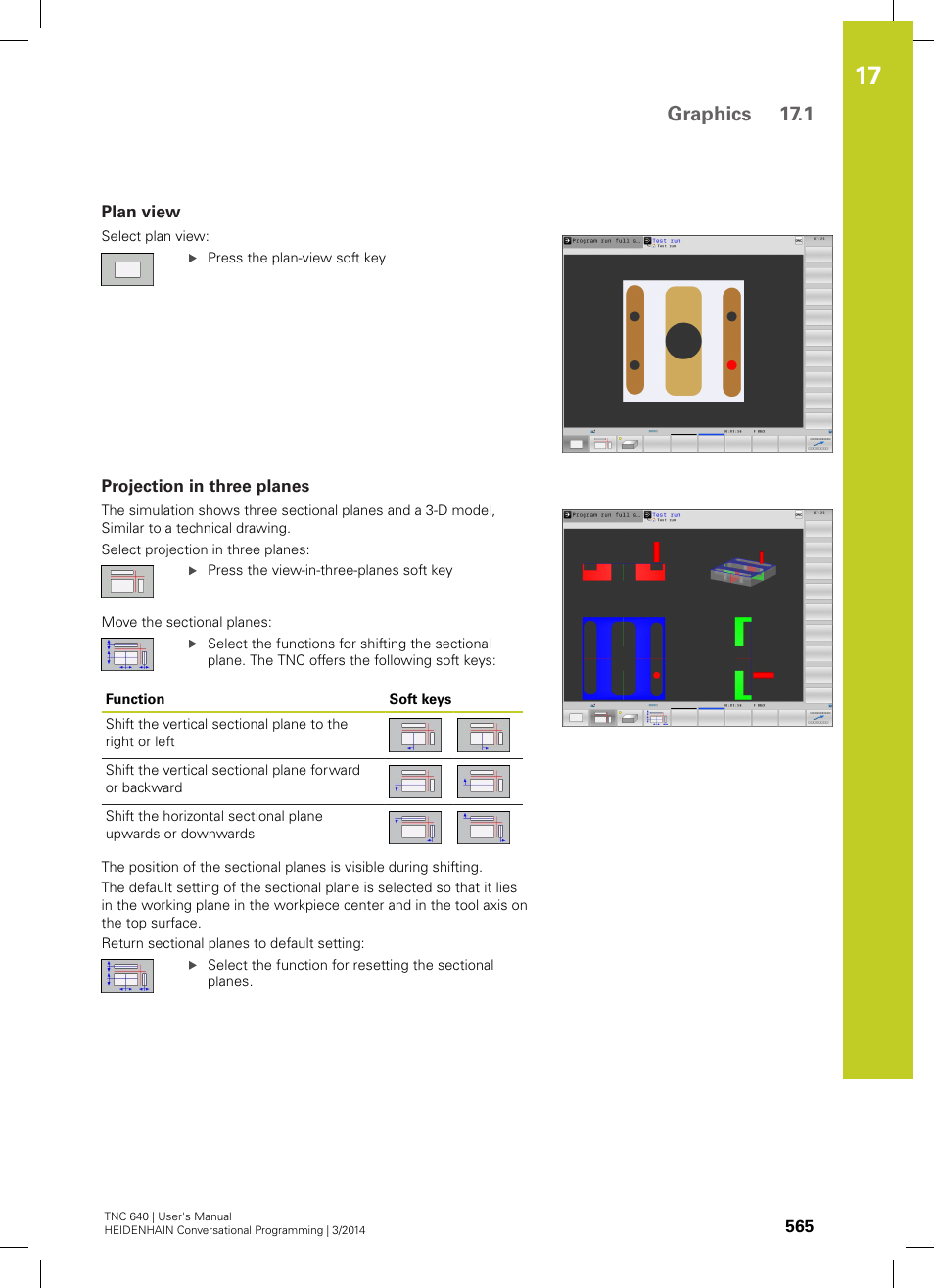

Plan view, Projection in three planes, Graphics 17.1 – HEIDENHAIN TNC 640 (34059x-04) User Manual
Page 565
