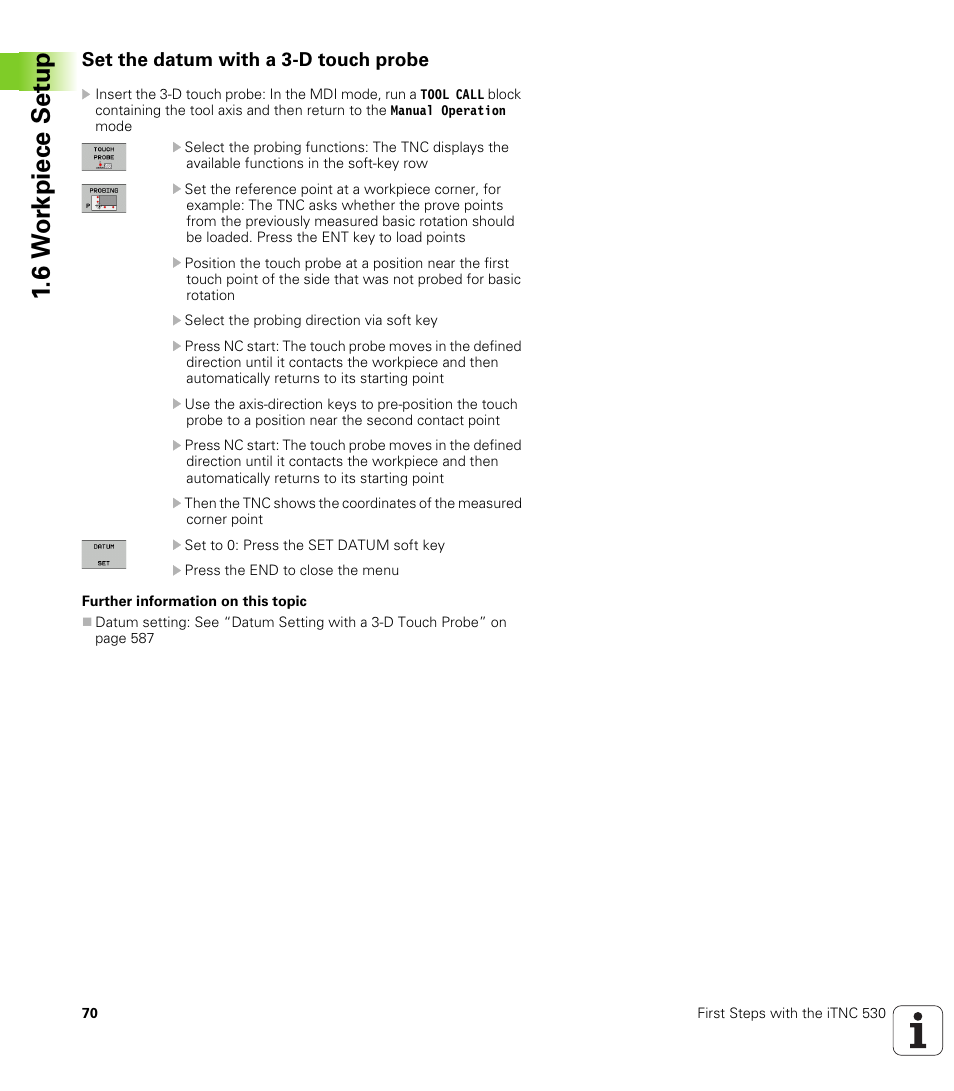

Set the datum with a 3-d touch probe, 6 w o rk piece set u p – HEIDENHAIN iTNC 530 (606 42x-02) User Manual
Page 70
