Specifications

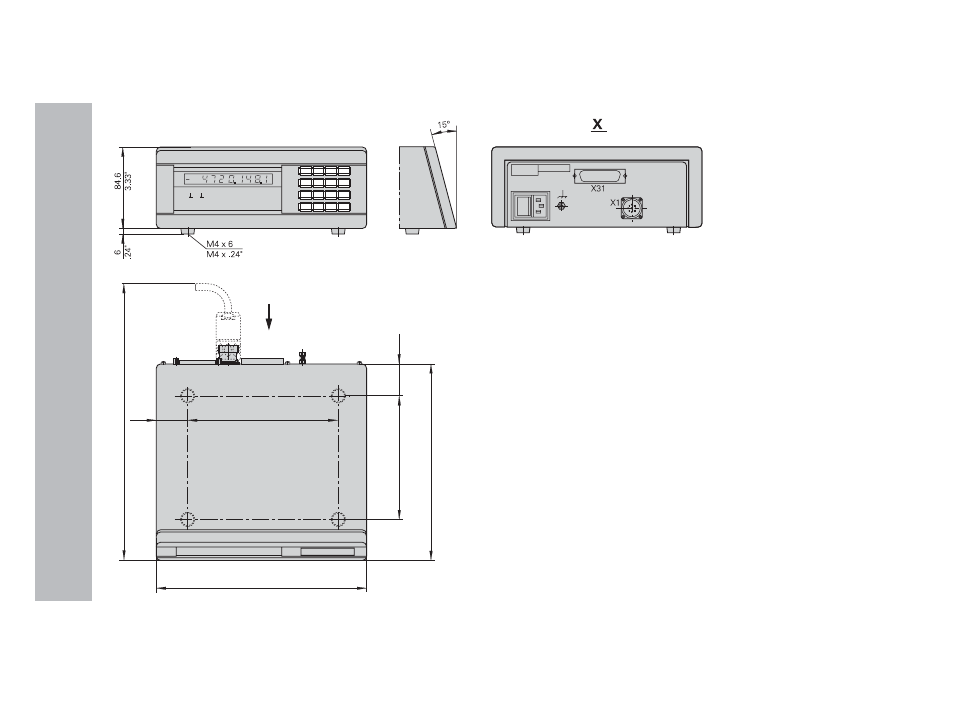

ND 221 B: Dimensions in mm/inches

35

1.43"

172

± 0.2

6.77"

± .008"

33.5

1.37"

224

8.82"

140

±

0.2

5.51"

±

.008"

239

9.41"

325

12.8"

X

REF 1

SET START PRINT

2

inch

< = > MIN ACTL MAX DIFF
