Maintenance

Fuse Boxes

Remove the windshield trim panel to access the fuses, auto-reset circuit breakers and relays.

See page 205. Use the fuse puller provided in the tool kit to remove a fuse.

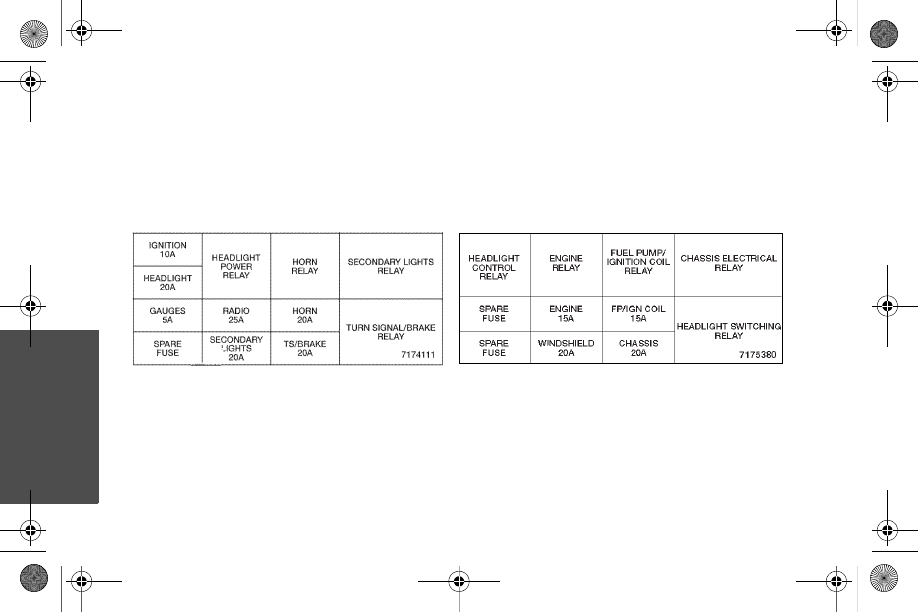

Left Fuse Box

Right Fuse Box

08 Maintenance.fm Page 214 Monday, May 11, 2009 2:03 PM
