27 STUDIO NEWS
DVE Setup Dialog Box Overview

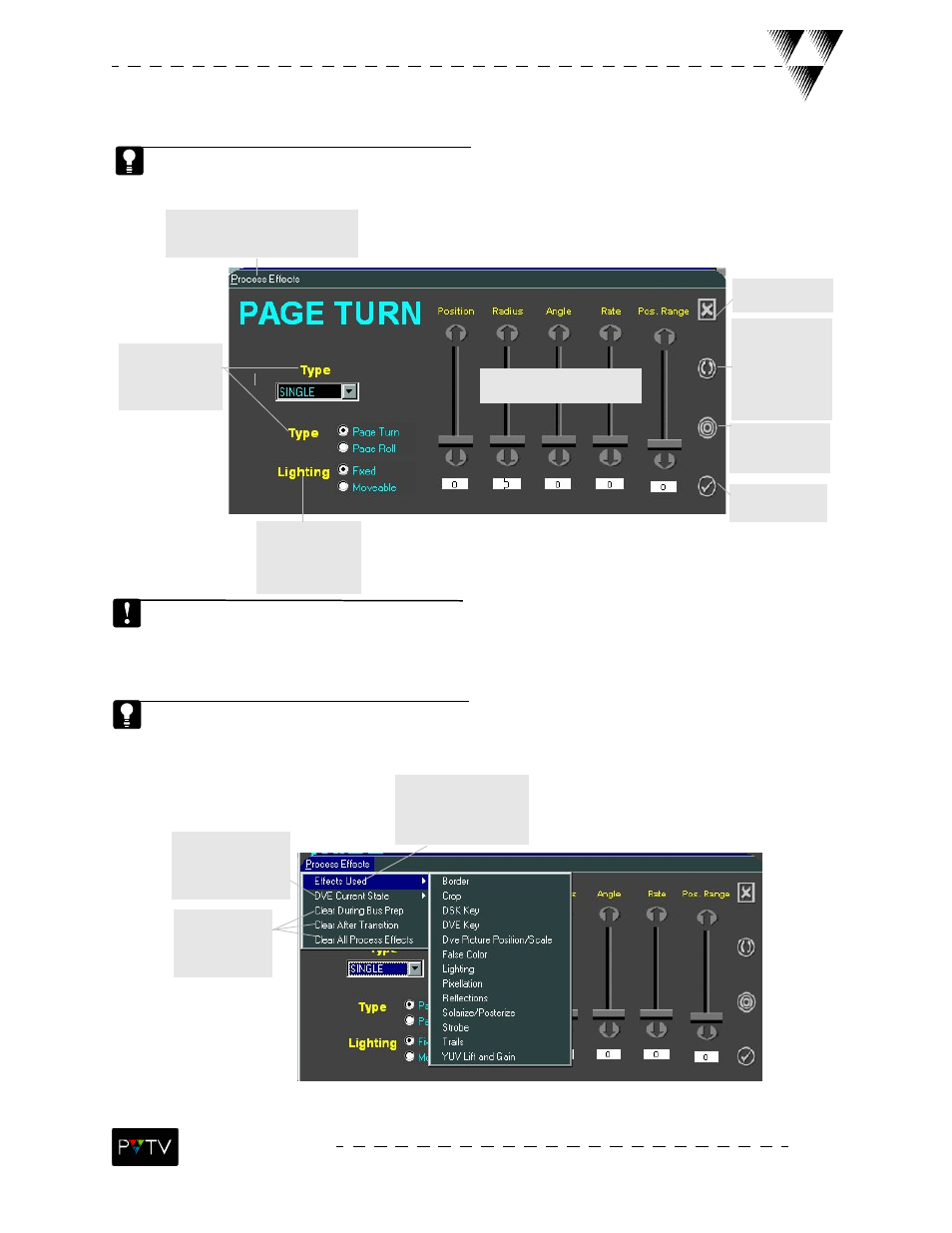

A dialog box similar to the one below appears when a DVE is selected from the DVE List on the
Transition Setup dialog box.
Select a Process Effect to change
the content or position of the
DVE image.
Scroll/toggle to
define size and
shape of the
Page Turn.
Toggle to define
how light will be
seen on the page
turn.
Adjust the slider controls to
personal specifications.
Select OK when
finished.
Resets dialog
box settings to
system defaults.
Resets settings
to what
appeared when
the dialog box
was first
opened.
Select to close
and cancel.
The available options on this dialog box change depending on which DVE is
selected from List on the Transition Setup dialog box.
Process Effects Setup Dialog Overview
The Process Effects dialog box appears when the Process Effects Menu is selected from the DVE
Setup dialog box. After selecting the desired process effect, a corresponding dialog box will
appear.
Select the appro-
priate time to
clear process
effects.
Select the Process
effect to be used. This
will open another dia-
log box.
This additive feature
shows all Process
effects that are cur-
rently turned ON.
