v2.0
LDK 8000 User’s Guide | Connectors 7-2
7.1.1 Viewfinder connector

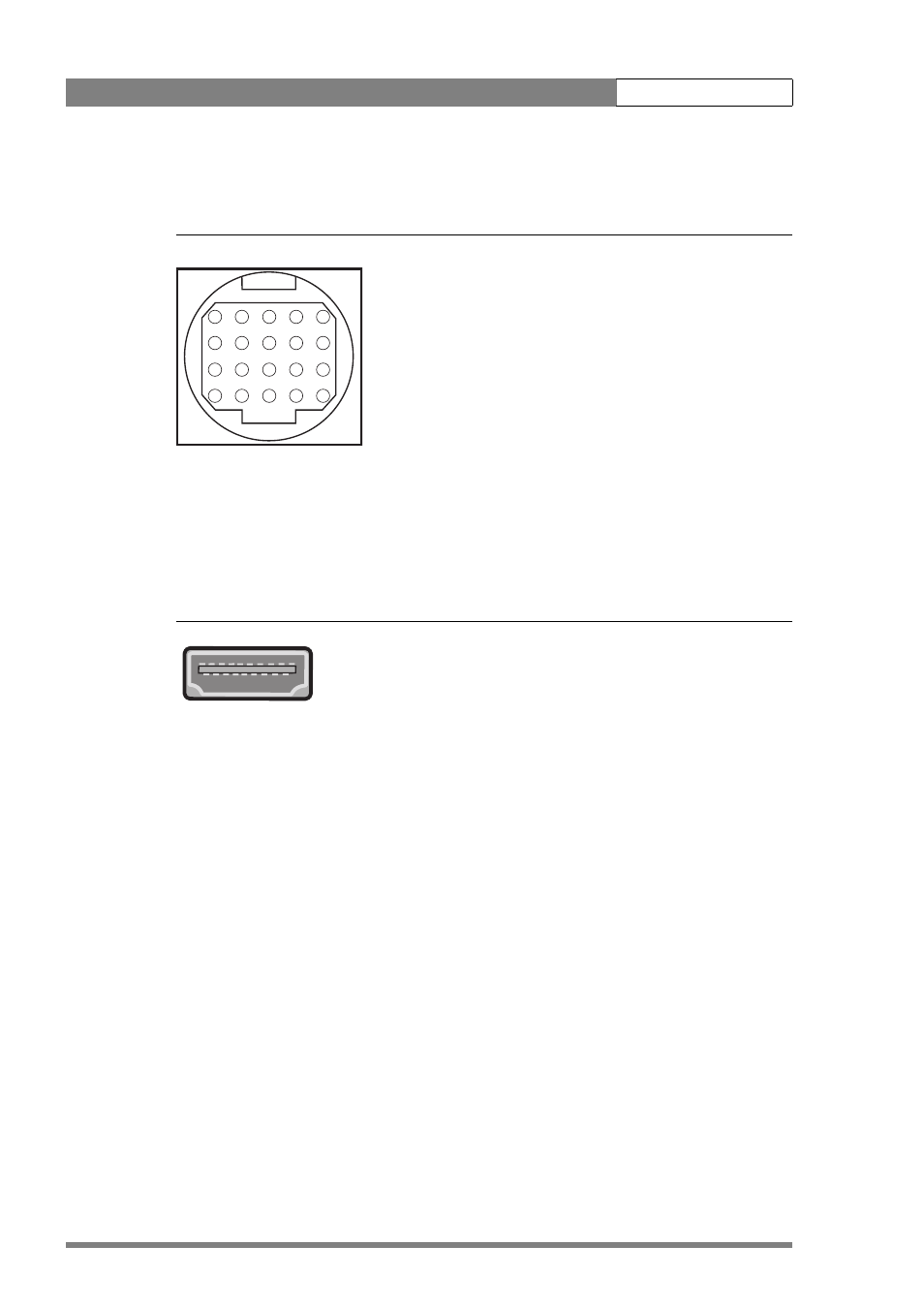

Figure 7-1. Camera viewfinder connector
7.1.2 HDMI connector
Figure 7-2. HDMI - VF connector
3 4 1 2 5
8 9 6 7 10
13 14 11 12 15
18 19 16 17 20
1. -80V
2. n.c.
3. GND
4. INTN-D
5. vf ext video
6. n.c.
7. vf video ret
8. SDA-D
9. SCL-D
10. vf ext video ret
11. GND
12. vf video
13. Pb vf ret
14. Pr vf ret
15. GND
16. +batt
17. +batt
18. Pb vf
19. Pr vf
20. shield 20-pole female; panel view
Panel part number (X14): 5322 214 12544
Cable part number (male): 5322 320 12159
1. TDMS Data 2+
2. TDMS Data 2 Shield
3. TDMS Data 2 -
4. TDMS Data 1+
5. TDMS Data 1 Shield
6. TDMS Data 1-
7. TDMS Data 0+
8. TDMS Data 0 shield
9. TDMS Data 0-
10. TDMS Clock+
11. TDMS Clock shield
12. TDMS clock -
13. VF-video (CEC)
14. + 12 V (switched)
15. SCL
16. SDA
17. Ground
18. +5V power
19. Hot Plug Detect
HDMI type A (19-pole)
