LDK 8000 User’s Guide | Operating instructions 5-5
5.3 Assigning functions to buttons
The camera head has three assignable buttons, two on the side panel (SW1) and (SW2), and
one on the lower front panel (VTR start). The operation of the zoom control button and the VTR
button on the lens can also be assigned. The function and behaviour (momentary or
alternating) of these buttons are set in the
INSTALL/BUTTONS menu.

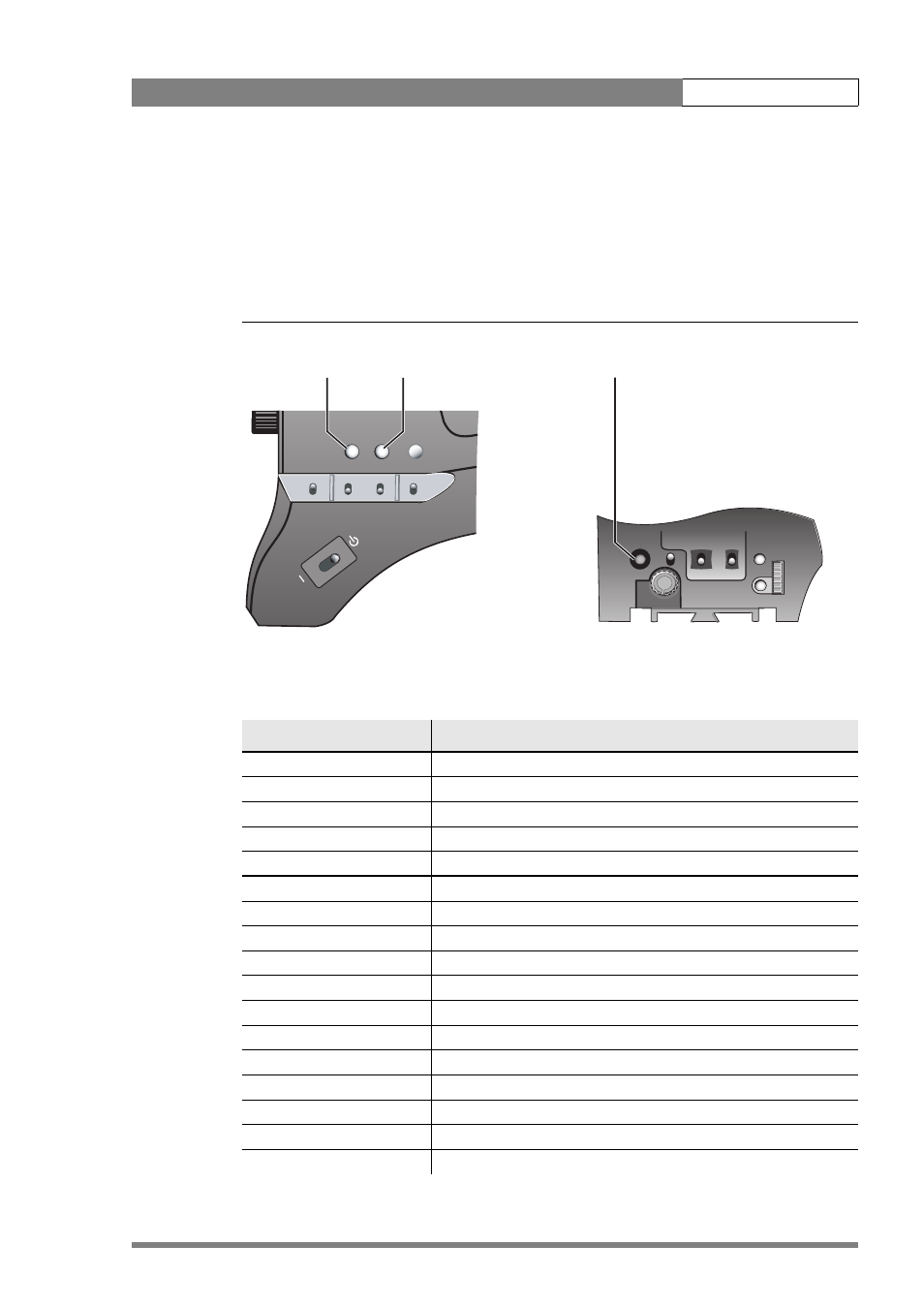

Figure 5-4. Assignable buttons
Switch Assignments for Triax operation
SW1 Prod. intercom
Eng. intercom
Zoom
Switch on external signal 1
Switch on external signal 2
SW2 Prod. intercom
Eng. intercom
Zoom
Switch on external signal 1
Switch on external signal 2
VTR Cam. Prod. intercom
Eng. intercom
Zoom
Switch on external signal 1
Switch on external signal 2
VTR lens Prod. intercom
Eng. intercom
SW1 SW 2 Std.
Recall
Po
wer VTR start
Audio Level Select
V
shift
Clean
scan
Exp.
Time
White
Bal.
VTR Cam.
button
SW1
button
SW2
button
