v2.0
LDK 8000 User’s Guide | Configurations 3-4
3.4 Local mode
A camera head with the LDK 5860 TriaxHD adapter can be used in the local mode. The DC
power supply is applied to the adapter. An OCP 400 operational control panel can be
connected directly to the camera using the RS232 connection. A reference signal can be
applied to genlock the camera.
The HD SDI (B) connector carries the HD SDI viewfinder signal. The HD SDI (A) connector
carries the HD SDI camera signal.

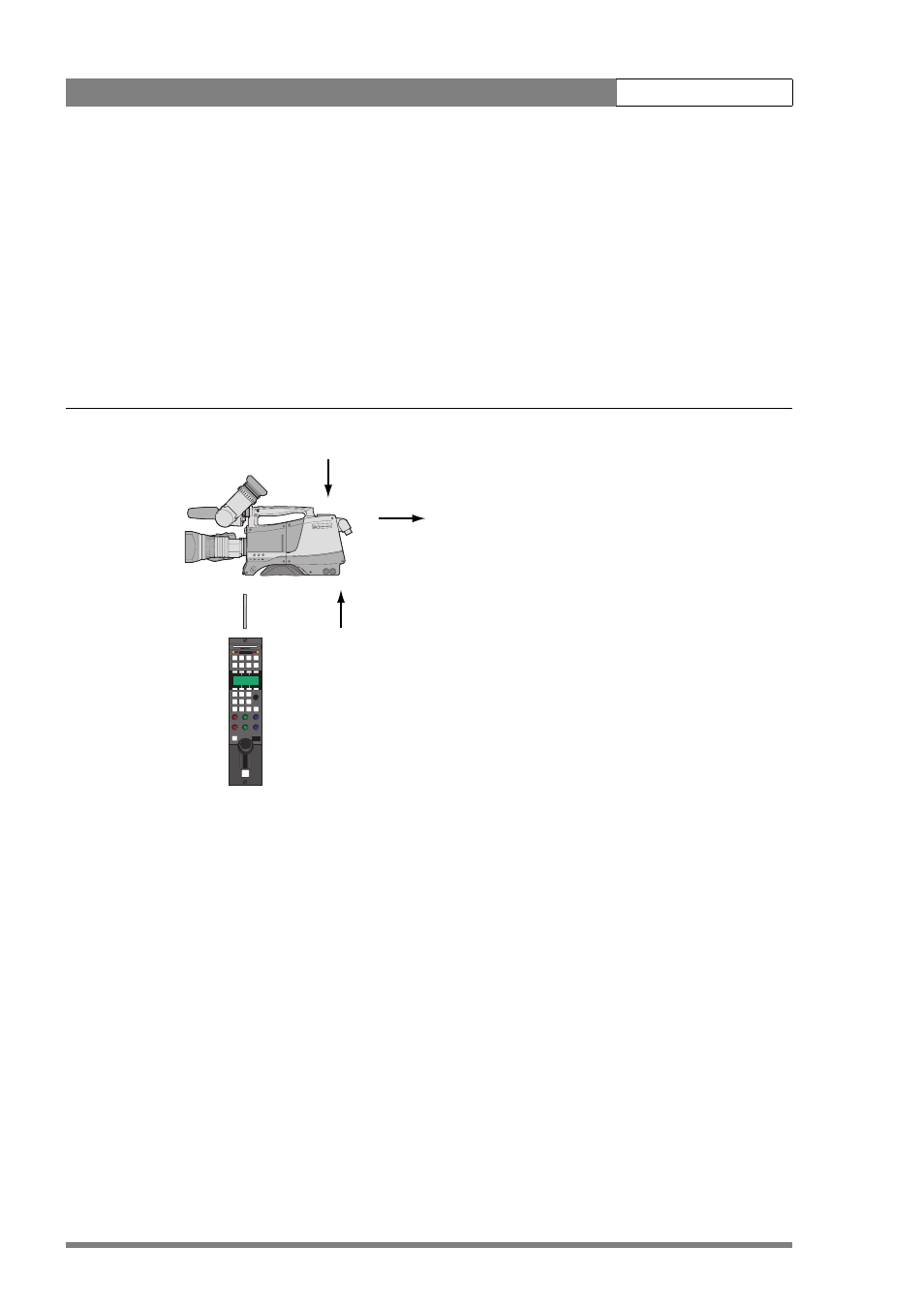

Figure 3-4. Camera in local mode
Camera head +
Triax adapter
OCP 400
RS232
connection
Video out
DC power
in
Reference
in
