Fibre Channel board (optional) removal
Before doing this task, remove the carrier module.

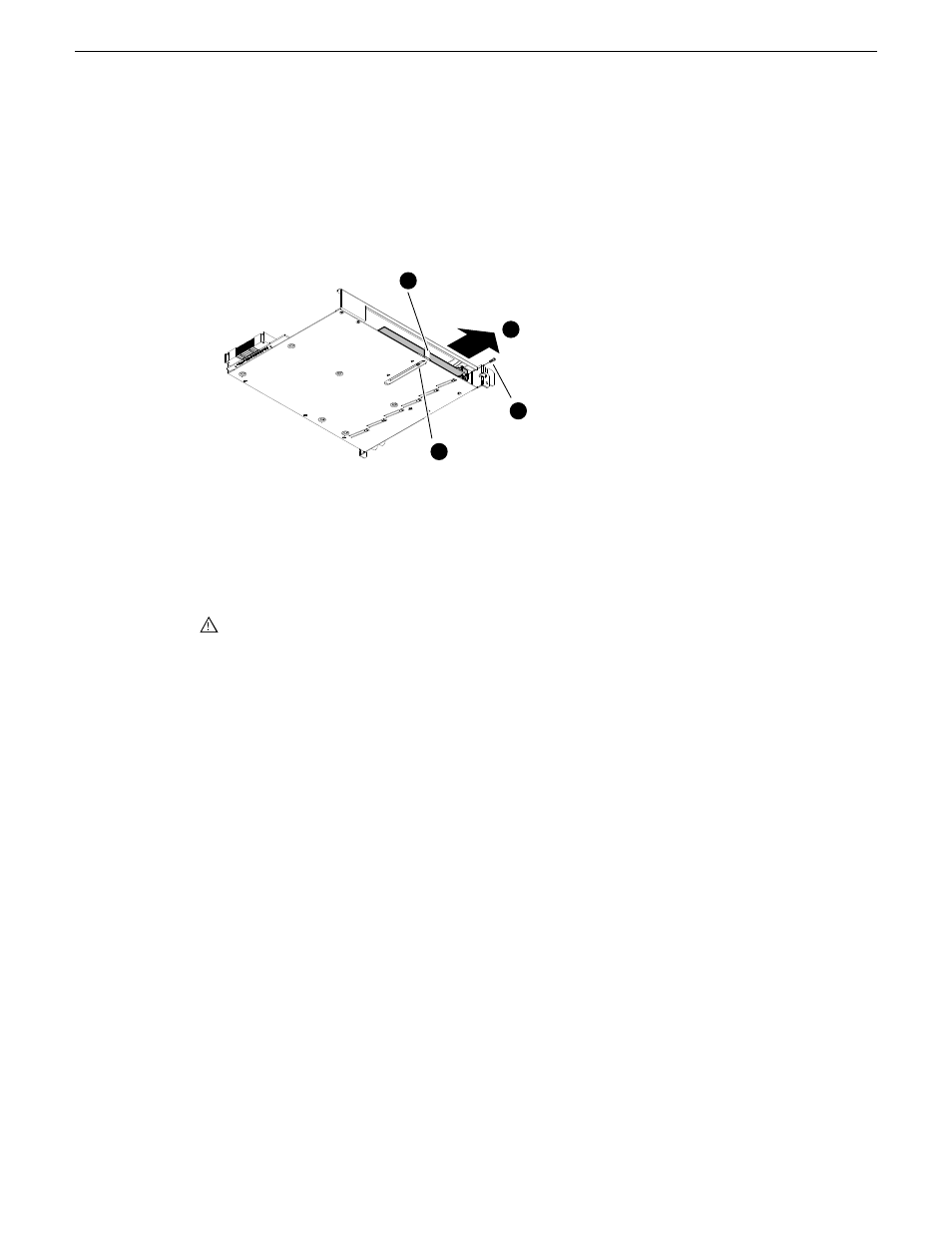

To remove an optional PCIe Fibre Channel board, disassemble the carrier module as illustrated.
Remove bracket
adjustment screws 2
Remove board
retaining screw 1
Remove
bracket 3
Slide board out 4
Internal Parts Removal
The sections that follow show how to remove internal parts from the K2 Summit system.
CAUTION: To avoid possible damage to circuit boards and other sensitive parts, turn off the
K2 Summit system and disconnect both power cords before opening the top cover or removing
any internal parts.
02 February 2012 K2 Summit 3G Production Client Service Manual 105
Removing and replacing FRUs
