Grass Valley K2 Summit 3G v.8.0 - Manual (Page 103)

After installing the replacement codec module, install the current version of K2 software. An
over-install is all that is required. You do not need to first un-install the software. This ensures that
the board is flashed with the proper version to be compatible with K2 software.
Codec option card removal
Before doing this task, remove the codec module.

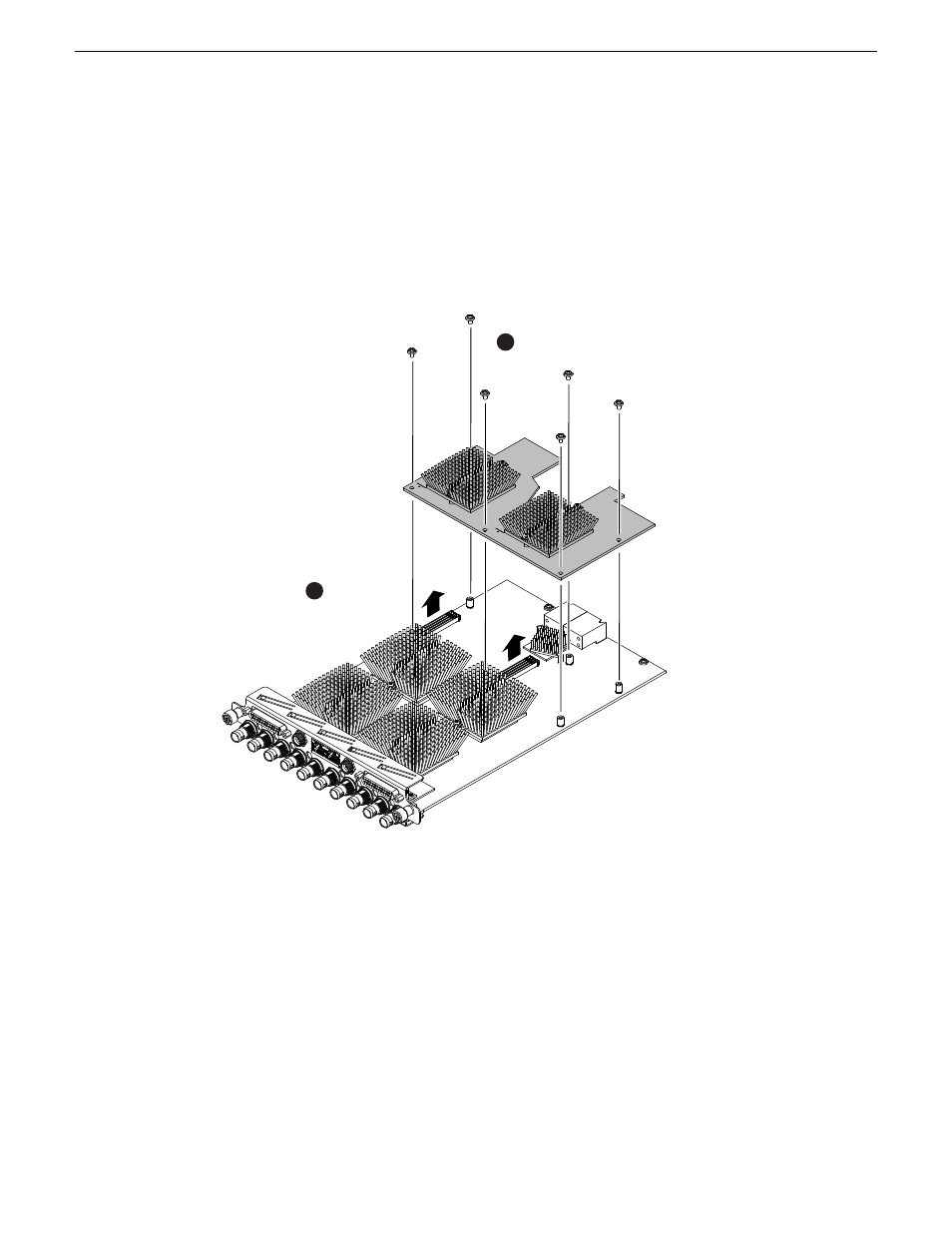

To remove a codec option card from the codec module, proceed as illustrated.
Remove phillips head screws 1
Disengage
connectors 2
Use a #1 Phillips screwdriver to remove the screws.
After installing the replacement card, install the current version of K2 software. An over-install is
all that is required. You do not need to first un-install the software. This ensures that the card is
flashed with the proper version to be compatible with K2 software.
NOTE: Once a channel is operational with MPEG-2 or AVC-Intra, if you then remove the cards
from the codec module you must also delete
C:/profile/config/config.xml . Failure to do so
causes errors in Configuration Manager.
02 February 2012 K2 Summit 3G Production Client Service Manual 103
Removing and replacing FRUs
