Grass Valley 8990ARC v.3.0 - Manual (Page 39)

8990ARC Instruction Manual 39
Configuration
Save/Recall Settings Web Page
The 8990ARC provides five storage registers to save module configuration
settings for access through standard local and remote control or four of the
registers can be controlled through the GPI interface on the Save/Recall
Settings web page (
Figure 17 ).
Use the Save User Settings button to save the current module configuration to
a local storage register. Select Recall User Settings to recall the locally saved
register.
Use the Save and Recall GPI 1-4 registers to recall saved configurations by
triggering
Current module configuration settings are displayed below the header
information. Factory default settings can be recalled using the
Recall Defaults
button.

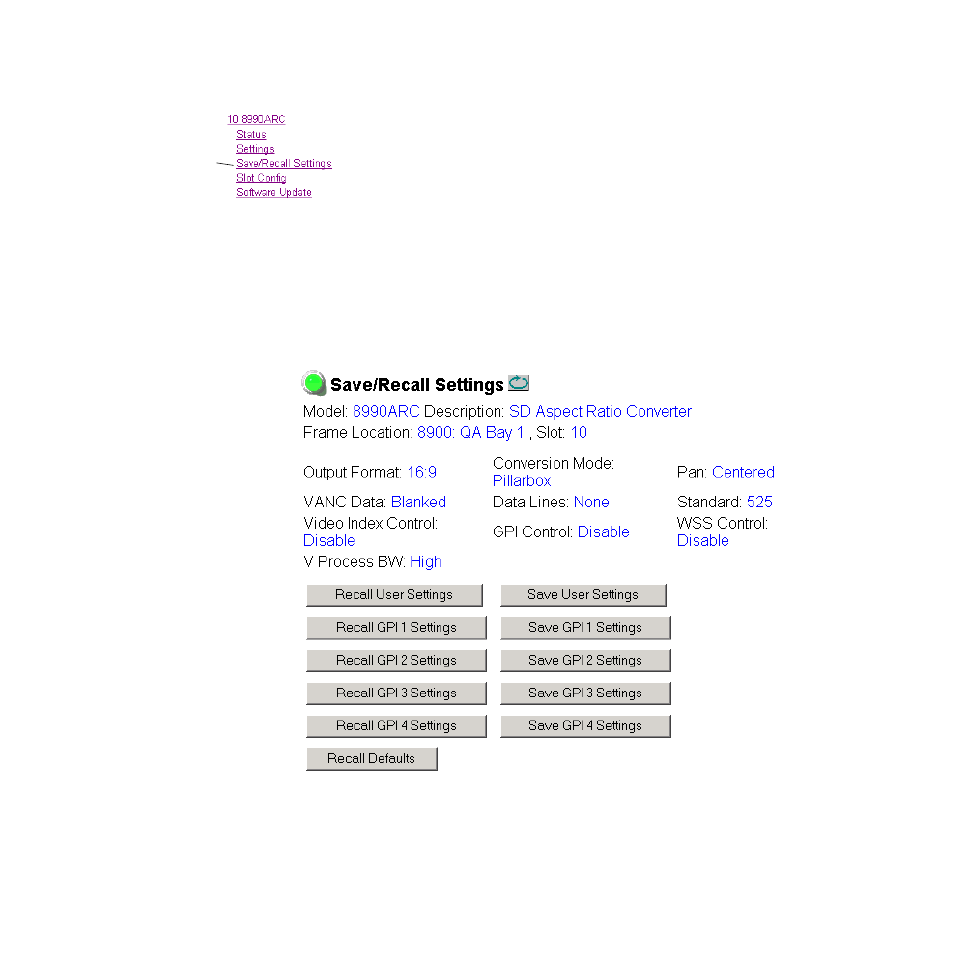

Figure 17. Save/Recall Settings Web Page
