8990ARC Instruction Manual 35
Configuration
Status Web Page
The Status web page ( Figure 13 ) shows the status of the input signal, the
internal state of the module, and frame bus communication. Color coding
of the display indicates status. Refer to
Status Monitoring on page 43 for an
explanation of the color coding.
Information about the module, such as part number, serial number, hard-
ware revision and software and firmware versions are given in a read-only
section at the bottom of the page.

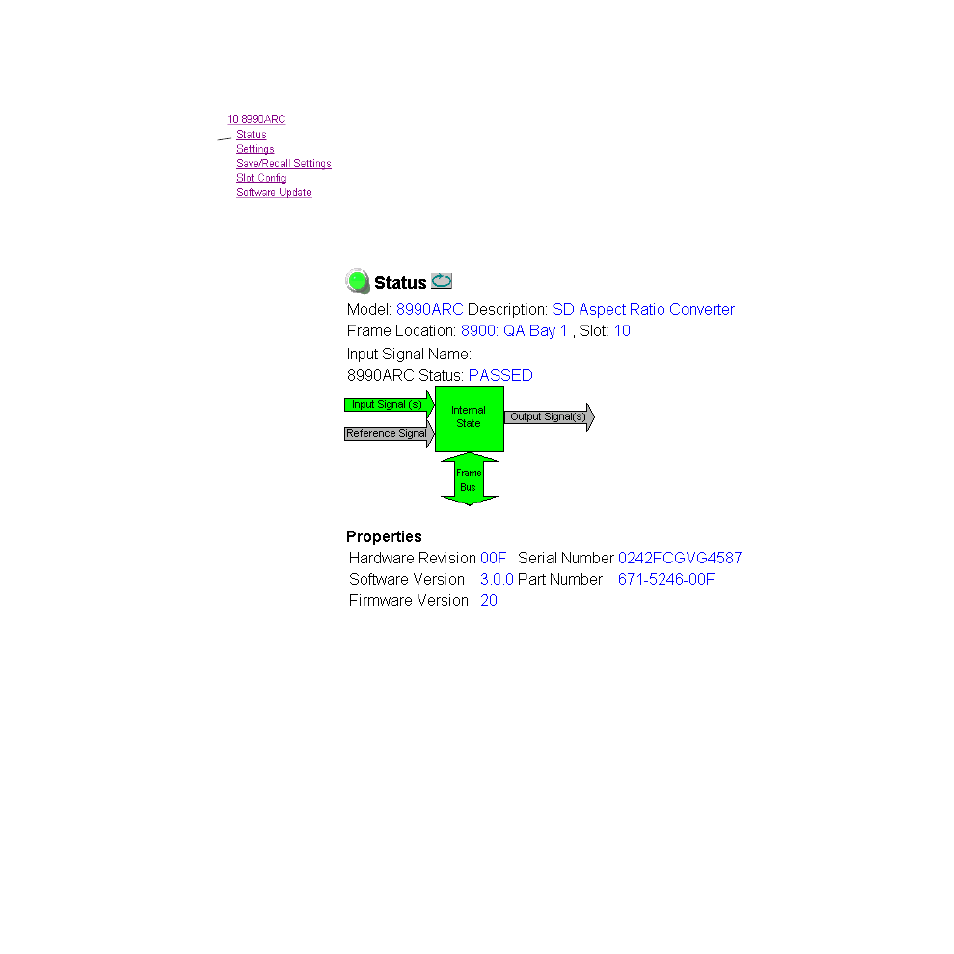

Figure 13. 8990ARC Status Web Page
