36 8990ARC Instruction Manual
Configuration

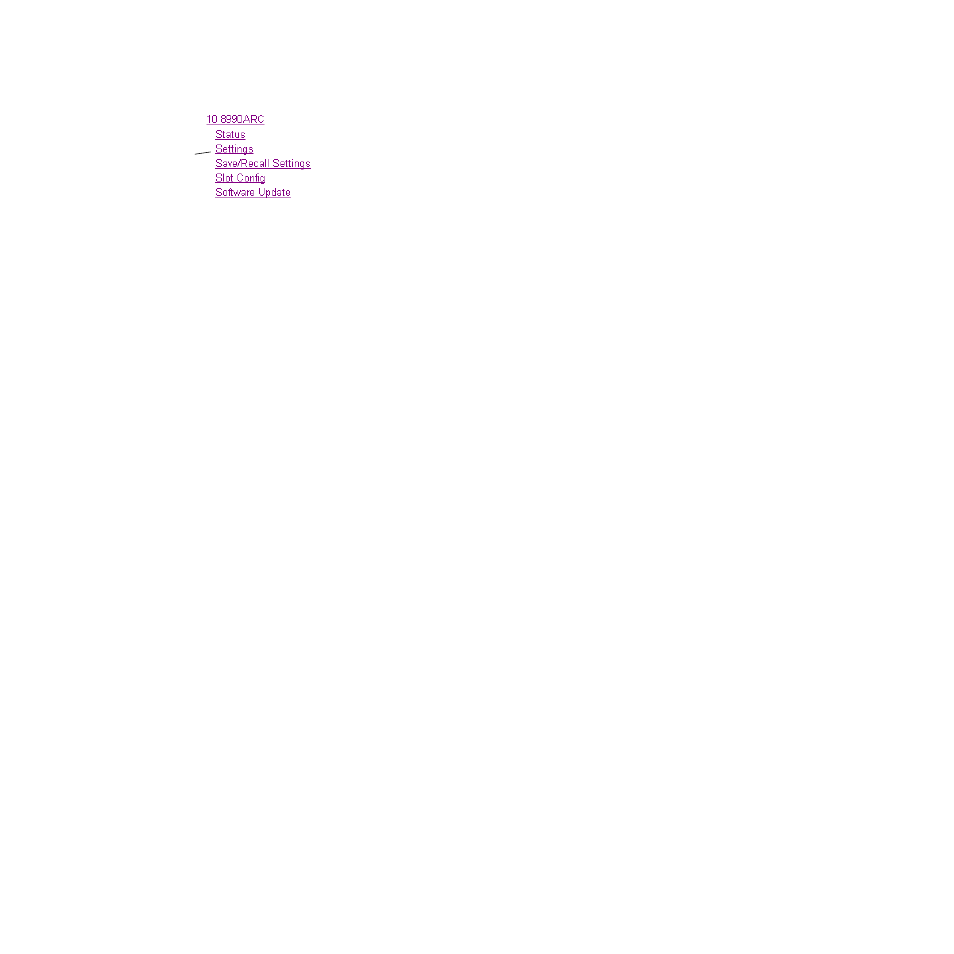

Settings Web Page
The Settings web page ( Figure 14 on page 37 ) allows you to set the fol-
lowing for the module:
• Select Output Format – 4:3 or 16:9,
• Select high or low V Process BW (vertical resizing) filter – switch to low
to remove ringing in lines with vertical black/white or severe chroma
transitions (see
Vertical Resize Filtering on page 51 ).
• Select Conversion Mode – output picture ratio options (see Output Con-
version Modes on page 17 ),
• Select Tilt or Pan – Tilt appears in modes that allow vertical position
adjustment, Pan appears in modes that allow horizontal position
adjustment,
• Pass/blank vertical ancillary data (VANC),
• Select Video Index Control type (see Video Index Coding on page 20 ). For
Custom mode, see WSS or Video Index Custom Mode on page 38 ,
• Select Wide Screen Signaling type (see Wide Screen Signaling (WSS) on
page 24 ),
• In 625 mode, Select line on which Wide Screen Signaling will occur on
(line 13-27),
• Enable GPI control (see GPI Control on page 11 ), and
• Select number of data lines for processing (see Video and VBI Line Han-
dling on page 18 ).
The module will report the status of both WSS and Video Index Coding
as it is detected on the input signal in a read-only section at the bottom
of the page. The information will always be displayed even when WSS
and Video Index Coding are disabled. This read-only information is
based on current industry standard formats and is provided as a status
guide for the user.
