8990ARC Instruction Manual 29
Configuration
Onboard Configuration Switches and LEDs
The 8990ARC module can be configured using the on-board rotary and
paddle switches shown in
Figure 9 . The CONF LED is a configuration
status indicator.
These three components perform the following:
• Function (rotary) switch — Addresses one of 16 possible positions (0
through 9 and A through F) to access a desired function for configura-
tion. Not all positions are used (see
Table 9 on page 30 ).
Note The Function switch should be kept in position 0 when not in use to avoid any
inadvertent change in configuration. 0 is an inactive position.
• SW2 (paddle) switch — Actuates or selects the desired setting for the
selected function when the switch is held momentarily in either the Up
or Down position.
• CONF (configuring) LED — When on, indicates the module is initial-
izing or processing configuration information.

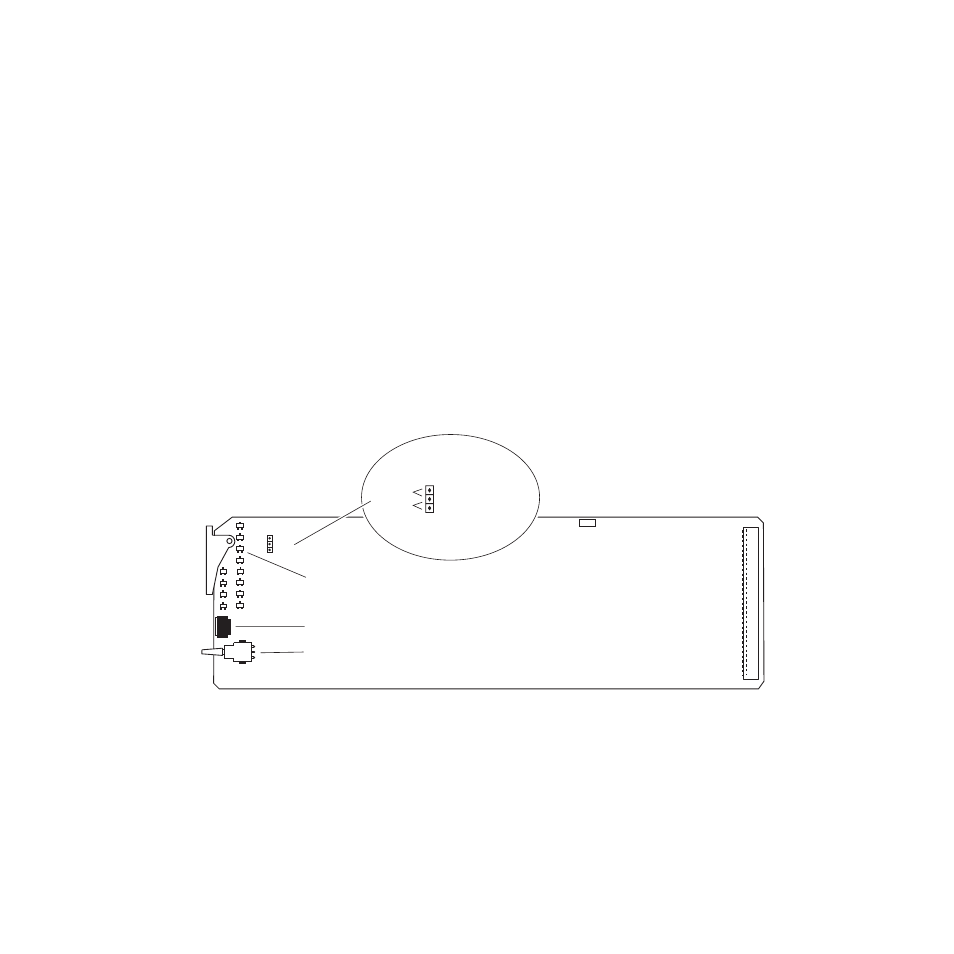

Figure 9. Module Configuration Switches and LEDs
GRASS VALLEY GROUP 8 9 9 0 A R C A S P E C T R A T I O C O N V E R T E R 6 7 1 - 5 2 4 6 -
JP2
Place jumper in
local position to
lock out remote
access.
Local
Local &
Remote
JP2
Remote Lockout
FUNCTION – rotary switch
SW2 – actuator toggle switch
CONF – configuration LED
8036_06r1
