38 8990ARC Instruction Manual
Configuration
WSS or Video Index Custom Mode
When Custom mode has been selected for either the Video Index Control or
the WSS Control, the web page will change to include the following two
controls:
• WSS/Vid Input LSBs – use this control to select an LSB for a particular con-
version mode ( Figure 15 ).
• Resulting 16x9/4x3 Mode – set the desired conversion mode for the selected
LSB. The web page will display the currently selected output format as
shown in
Figure 15 (16x9) and Figure 16 (4x3). Refer to Table 8 on
page 26 for a configuration summary of all parameters available for
these controls.

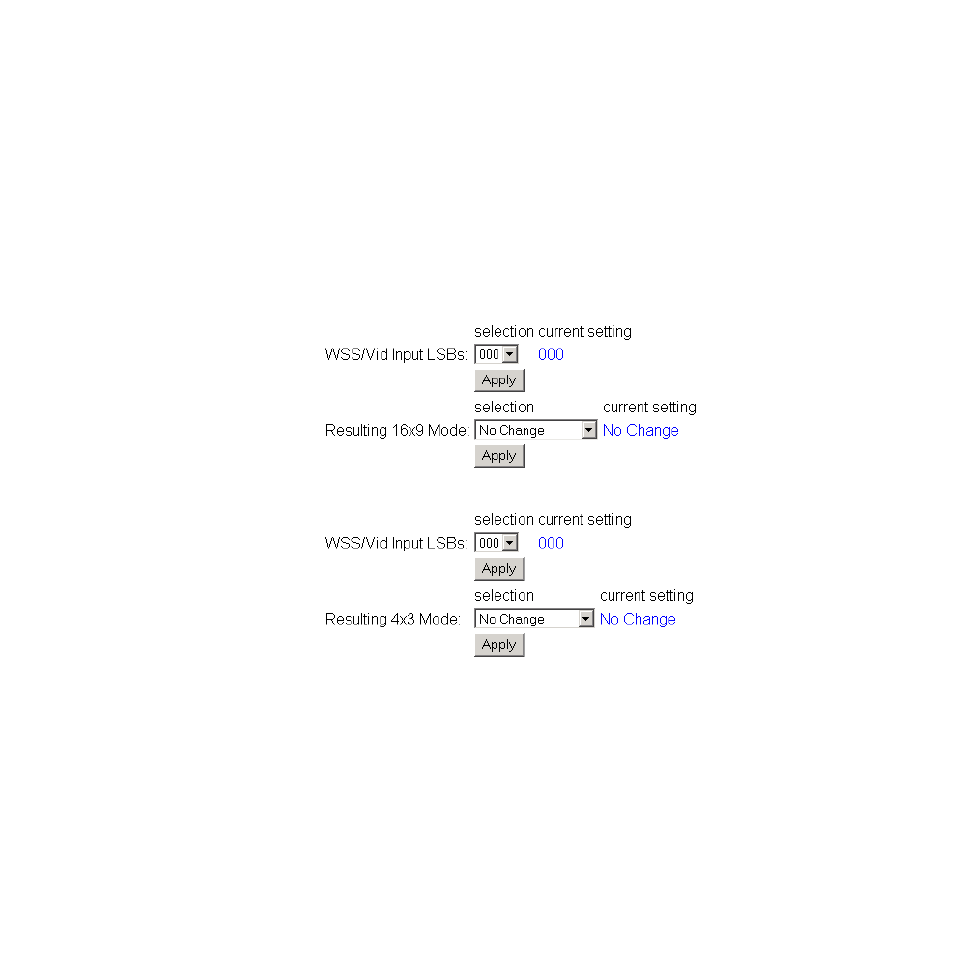

Figure 15. WSS/Vid Input LSB and Mode Web Page Controls – 16x9 Output
Figure 16. WSS/Vid Input LSB and Mode Web Page Controls – 4x3 Output
