8981FS Instruction Manual 23
Remote Configuration and Monitoring
Video Processor Controls
Access the Processor Controls display shown in Figure 13 to perform the
following (refer to Signal Processing — Offset and Gain on page 12 ).
■ Select Variable or calibrated Unity settings.
■ Adjust variable video Gain and Offset settings. Offsets are adjustable in
approximately 3.5% increments (10-bit video). Gain can be adjusted
±49%.
In Unity mode the slider or numeric controls are dimmed and are not avail-
able (N/A).

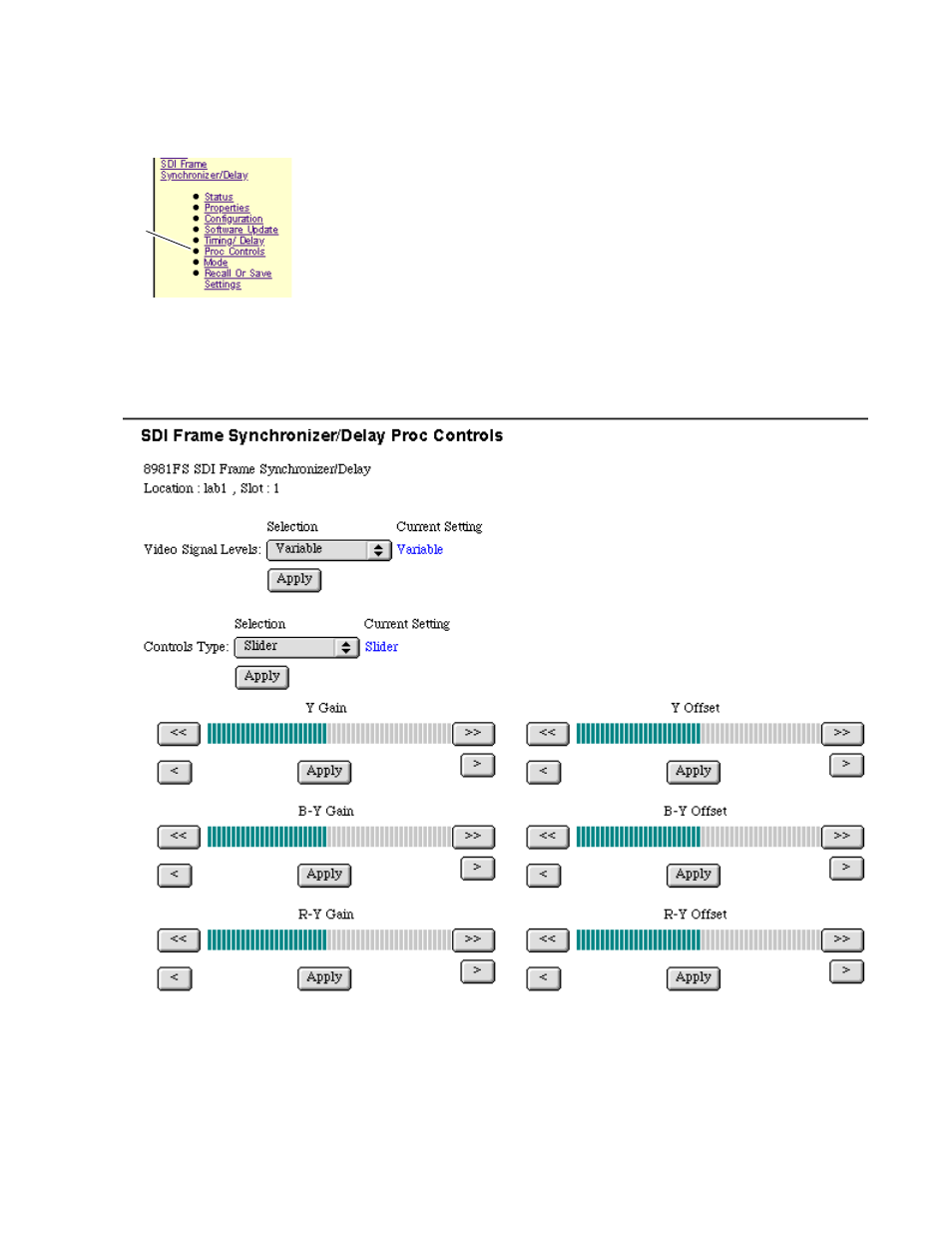

Figure 13. Processor Controls Display
