8981FS Instruction Manual 21
Remote Configuration and Monitoring
Timing/Delay Settings
Access the Timing/Delay display shown in Figure 11 to perform the fol-
lowing (refer to Module Operation Modes on page 10 ).
■ Adjust Horizontal and Vertical timing or delay.
■ Activate or terminate a manual output Freeze.
■ Disable or enable and setup Auto-freeze operation.
■ Disable or enable and setup Remote Auto-freeze GPI.

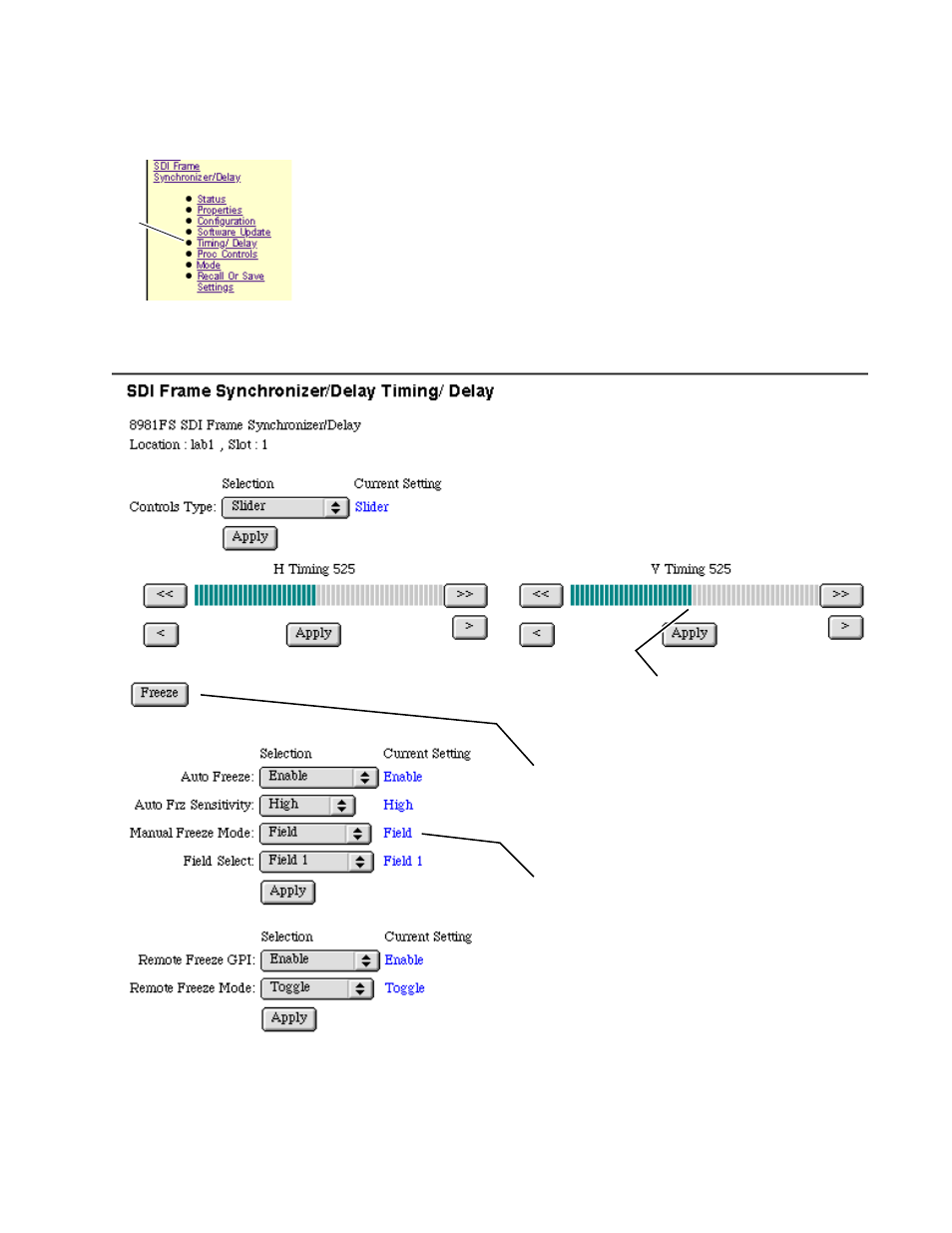

Figure 11. Timing/Delay Setup Display
Use
This
Link
Current setting is indicated by the point
of color change. Timing values range
from -49% to +49%. Delay values
range from 0.0 to maximum.
Not available when Manual Freeze
Mode is set for Frame.
Activates or terminates
a Manual Freeze.
