8981FS Instruction Manual 19
Remote Configuration and Monitoring
Using GUI Controls
Variable settings can be made using one of two control modes— Slider or
Numeric.
Figure 8 illustrates both types.
Note Numeric displays are for approximate values only. Calculation of displayed
values are subject to decimal place truncation. Variation from the absolute
value increases at higher adjustment levels.

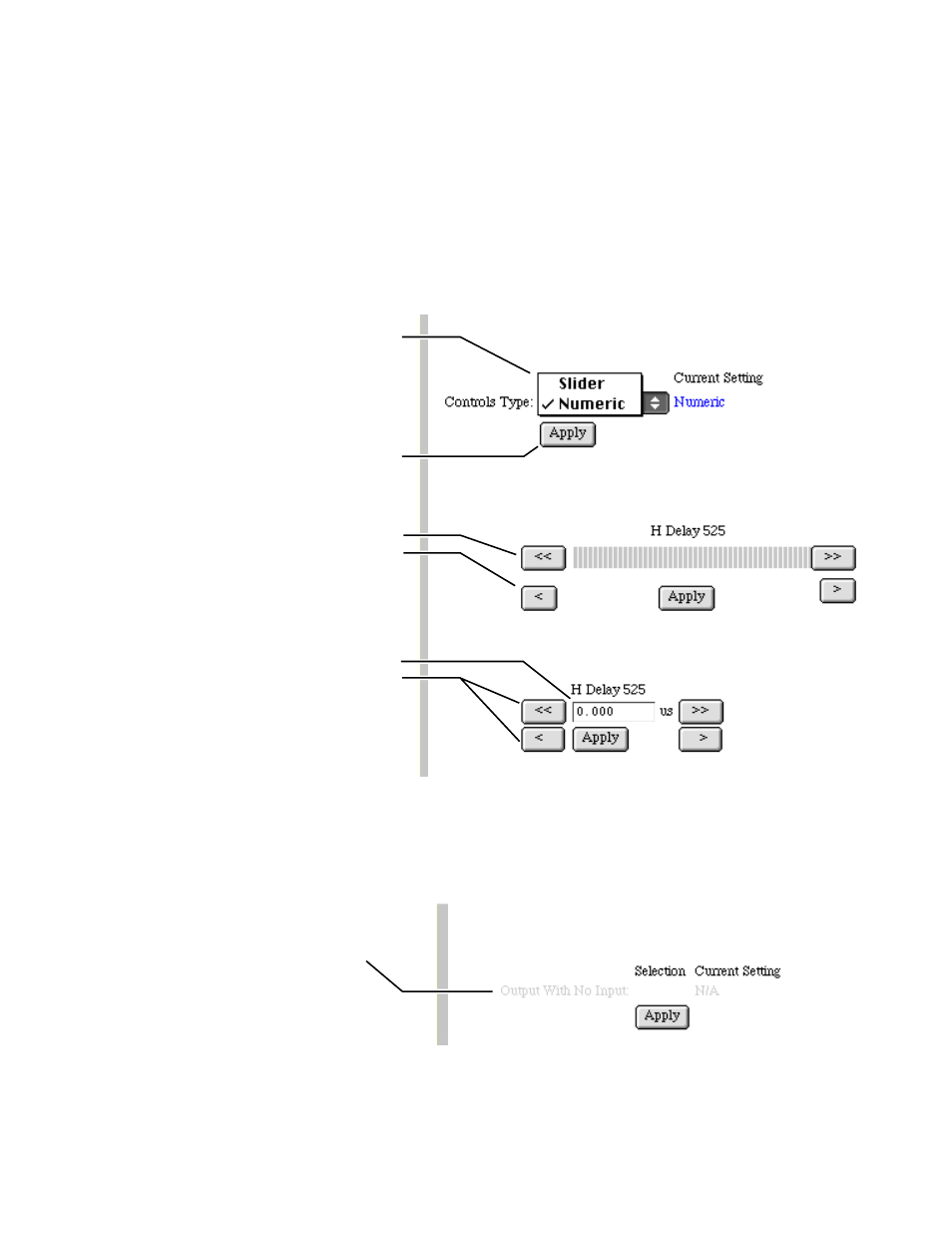

Figure 8. Control Mode Options
Functions that are shown dimmed (or ghosted) are not available (N/A) in
the display’s current mode of operation (see
Figure 9 ).
Figure 9. Dimmed Unavailable Functions
SLIDER:
Coarse adjust (10X)
Fine adjust (1X)
Mode Select
NUMERIC:
Enter a numeric value
or use increment buttons
Use the Apply button
to activate the selection
Dimmed function
is not available (N/A)
