18 8981FS Instruction Manual
8981FS Digital Frame Synchronizer Module
Module Configuration Displays
The 8900 GUI provides the following links and displays for the 8981FS. The
module name shown in
Figure 7 is “SDI Frame Synchronizer/Delay.” The
name is user determined and is assigned using the module’s Configuration
display. The four module configuration displays provide:
■ Module operational status information,
■ Module properties (part and version numbers),
■ Module configuration information (location and user assigned names),
and
■ Software update (file transfer).
These displays are the same for all remote controllable 8900 modules. Refer
to the 8900NET manual for more information on these displays. Some func-
tions listed may not be supported by a particular module. These will be
indicated as not supported.

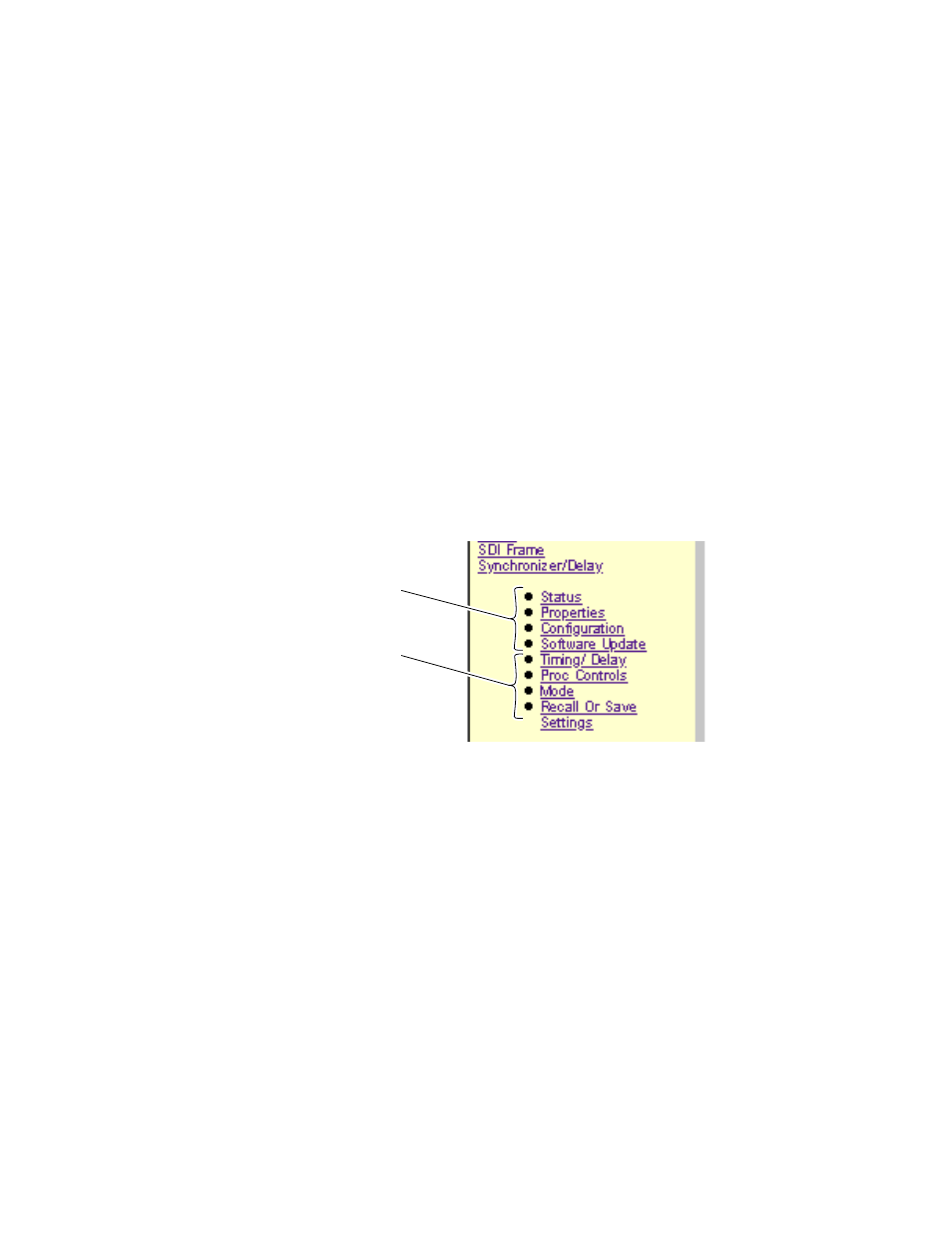

Figure 7. 8981FS Display Links
Signal Configuration Displays
This section discusses the last four displays which are used to perform con-
figuration of module functions. These are the same functions described for
On-board Module Configuration in Table 3 on page 15 .
Module Configuration
Displays
Signal Configuration
Displays
