Remote Configuration and Monitoring
Remote Configuration and Monitoring
8981FS configuration and monitoring can be performed using the 8900NET
interface in 8900TF or TFN frames (see
Figure 6 ). This section describes the
GUI access to the module configuration functions. Refer to the 8900NET
Network Interface Module Instruction Manual for information on setting
up and operating the 8900 frame network.

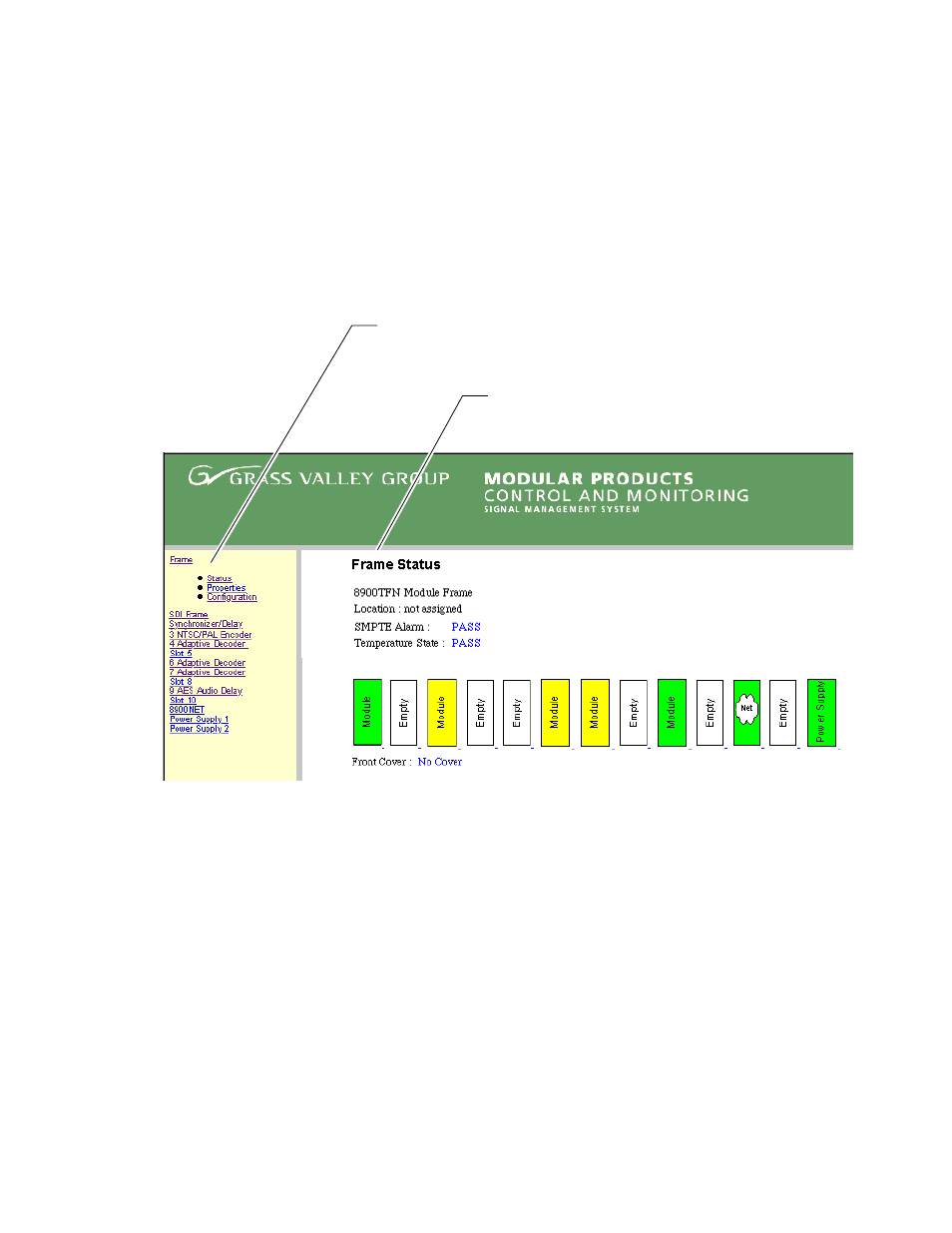

Figure 6. 8900NET GUI
The 8900 modules can be addressed by clicking on a specific module icon
in the frame status display or on a module name or slot number in the link
list on the left.
The links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays information for the selected
frame or module (frame slot icons are also active links).
