Configuration
Timing/Blanking Web Page
Set the following parameters on the Timing/Blanking web page:
• Amount of Horizontal Delay in ns,
• Position of EAV/SAV (end active video/start active video),
• Sync source (Y/G Channel or External), and
• Short or Wide vertical blanking.

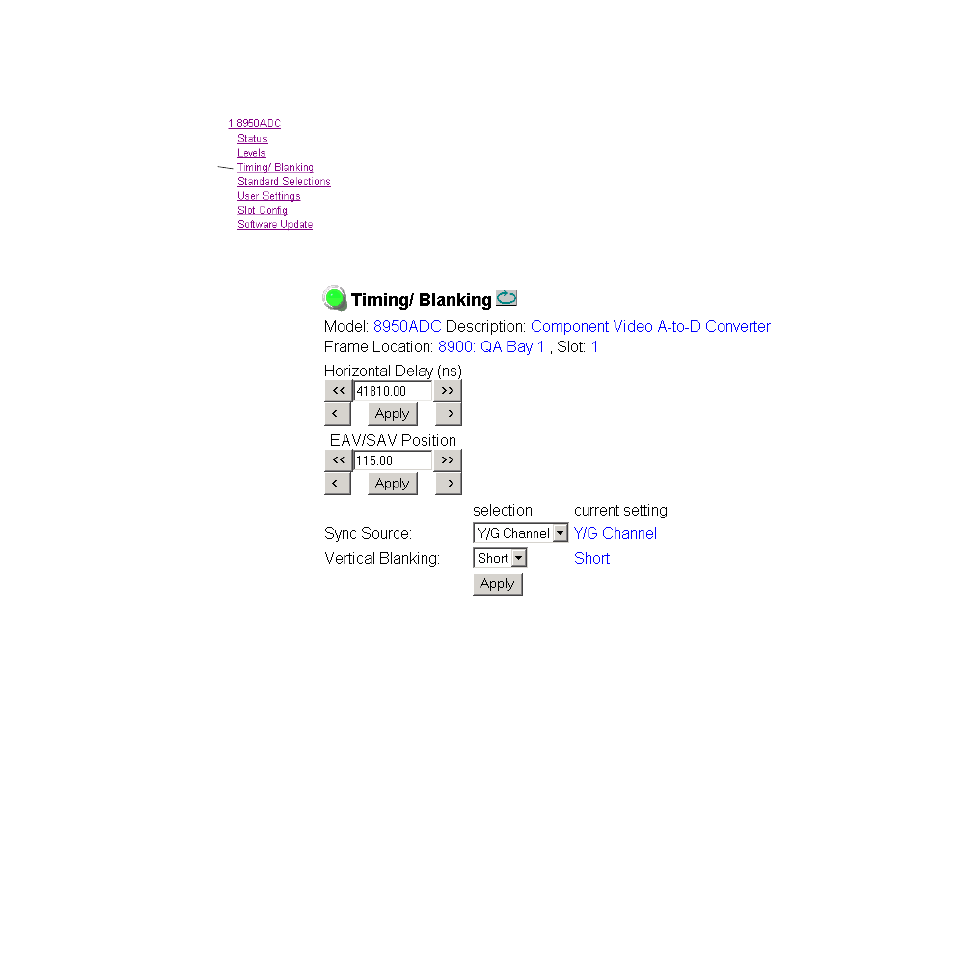

The Timing/Blanking web page is shown in Figure 11 .
Figure 11. Timing/Blanking Web Page
