Remote Configuration
8947RDA-FR Status Web Page

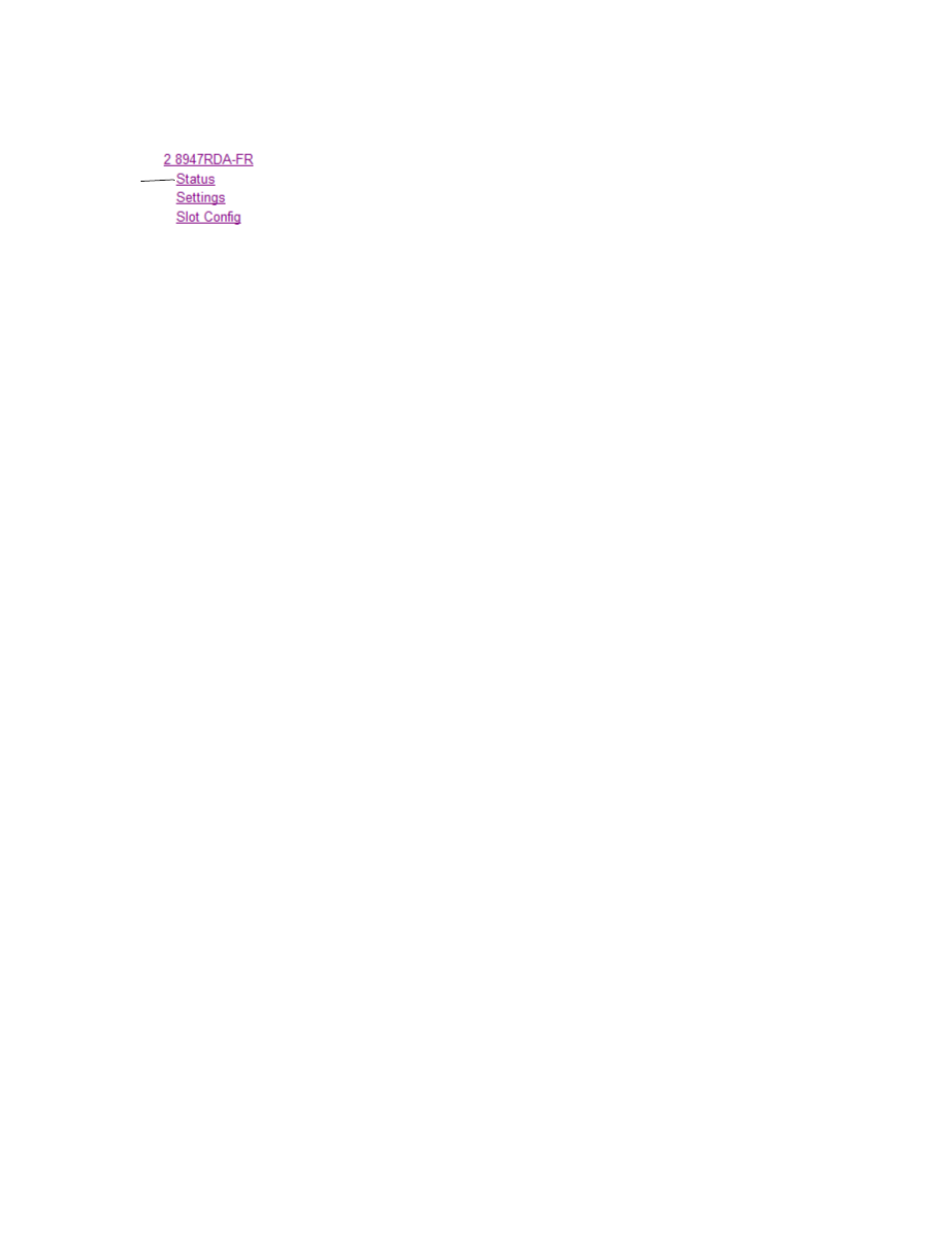

Use
this
link
The Status web page shows the signal status of the input signal(s) and com-
munication with the frame bus. Color coding of the display indicates the
signal status. Refer to
Web Browser Interface on page 27
for an explanation of
the color coding.
•
Under the
Status
title are given the model, the description and the frame
location. The graphic shows the input and output signals and their
status based on color. If the status of either input or output changes, it
will be reflected in the color status of the arrow (linked to the
Input
Reporting
parameter) and the status LED on the module web page.
•
Information about the module, such as Part Number, Serial Number,
Hardware Revision, Firmware Revision 1 (CPLD), Firmware Revision
2 (FPGA), Software Version, and Asset Tag number are given at the
bottom of the Status Web Page.
•
On the Status web page, any warnings or module errors will be dis-
played in the double bars area below the graphic.
Note
The color of the LED present on the top left of each web page is managed by
the 8900NET accordingly to the alarms status.
The 8947RDA-FR Status pages with and without the optional fiber optic
SFP devices are shown in the following figures:
•
8947RDA-FR without fiber optic SFP device (
)
•
8947RDA-FR with Dual Receiver fiber optic SFP device (
•
8947RDA-FR with Dual Transmitter fiber optic SFP device (
)
•
8947RDA-FR with Transceiver fiber optic SFP device (
)
